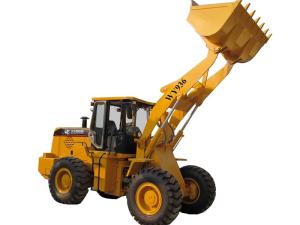

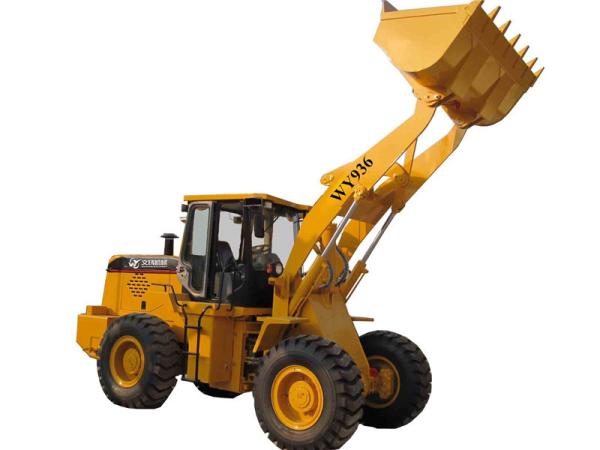

China factory WY936 3ton 1.7m3 deutz engine payloader for sale
1. maximum dumping height is 3400mm , Articulated frame with small turning radius makes the wheel loader flexible and convenient to operate.
2. Cab with broad view ,noise-isolation and vibration absorber meets all kinds of operation ,which can be dismantled for large space .Radio with MP3 function and speaker , the joystick control system (optional ) ensure easy operation and more comfortable.
3. Optional spare parts can be chosen by users ,such as the planetary transmission , the air condition ,heat system ,joystick ,longer lifting arms and so on.
4. Optional attachments :
Quick hitch for special needs such as the log grapple ,fork ,snow blade ,grass fork ,enlarged bucket etc .
| Model | WY936 |
| Operating weight | 10,100 kg |
| Rated load | 3,000 kg |
| Bucket capacity | 1.7m³ |
| Engine model | Deutz WP6G125E22 |
| Rated engine power | 92kw |
| Rated rotate speed | 2200r/min |
| Maximum torque | 500N.m |
| Breakout force | 98KN |
| Driving speed | |
| Forward Ⅰ | 0-8km/h |
| Forward Ⅱ | 0-13.5km/h |
| Forward Ⅲ | 0-25km/h |
| Forward IV | 0-36km/h |
| Reverse Ⅰ | 0-9.5km/h |
| Reverse Ⅱ | 0-30km/h |
| Grade ability | 28° |
| Overall length | 7200mm |
| Overall width | 2350mm |
| Overall height | 3200mm |
| Wheel base | 2850mm |
| Track base | 1800mm |
| Minimum ground clearance | 450mm |
| Maximum dumping height | 3400mm |
| Maximum dumping reach | 1290mm |
| Raise time | ≤6.8s |
| Total | ≤12.5s |
| Fuel Tank | 180L |
| Tyre type | 17.5-25 |
|
