| Categories | Electric Pallet Stacker |
|---|---|
| Brand Name: | Haizhili |
| Model Number: | CDD10M30-Q |
| Certification: | CE, ISO |
| Place of Origin: | Hubei Province |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 sets per month |
| Delivery Time: | 10 - 20 working days |
| Packaging Details: | To be packed in a iron pallet. |
| Type: | Electric stacker forklift |
| Load capacity: | 1000kg |
| Machine weight: | 800kg |
| Fork length: | 1150mm |
| Turning radius: | 1590mm |
| Mast: | Double mast |
| Ligting motor: | DC12V/2.2KW |
| Fork outer width: | 560/680mm |
| Wheel type: | PU |
| Load center: | 600mm |
| Max lifting height: | 3000mm |
| Company Info. |
| Hai Lift Machinery Co., Ltd. |
| View Contact Details |
| Product List |

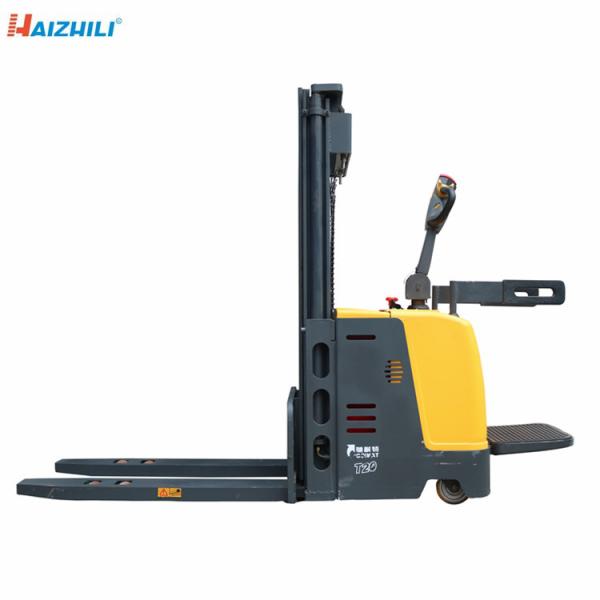

1000KG 3000MM Full Electric Reach Pallet Stacker For Container Loading Unloading
Quick Detail of Reach Pallet Stacker:
1. Loading capacity: 1000kg
2. Lifting height: 3000mm
3. Double mast
Specification of Reach Pallet Stacker:
| Model | ESC1M16-Q | ESC1M25-Q | ESC1M30-Q | ESC15M16-Q | ESC15M25-Q | ESC15M30-Q |
| Load capacity (kg) | 1000 | 1000 | 1000 | 1500 | 1500 | 1500 |
| Load center(mm) | 600 | 600 | 600 | 600 | 600 | 600 |
| Wheels base(mm) | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 |
| Weight(kg) | 650 | 760 | 930 | 820 | 990 | 1090 |
| Front wheel size(mm) | 78 | 78 | 78 | 78 | 78 | 78 |
| Rear wheel size(mm) | 124 | 124 | 124 | 124 | 124 | 124 |
| Driving wheel size(mm) | 230 | 230 | 230 | 230 | 230 | 230 |
| Mast retract height(mm) | 1975 | 1975 | 2035 | 1975 | 1790 | 2035 |
| Overall length(mm) | 1950/2330 | 1950/2330 | 1950/2330 | 1950/2330 | 1950/2330 | 1950/2330 |
| Overall width(mm) | 820 | 820 | 820 | 820 | 820 | 820 |
| Ground clearance(mm) | 40 | 40 | 40 | 40 | 40 | 40 |
| Fork length(mm) | 1150 | 1150 | 1150 | 1150 | 1150 | 1150 |
| Fork outer width(mm) | 560/680 | 560/680 | 560/680 | 560/680 | 560/680 | 560/680 |
| Turning radius(mm) | 1700 | 1700 | 1700 | 1700 | 1700 | 1700 |
| Fork min height(mm) | 90 | 90 | 90 | 90 | 9 |
|
