| Categories | Hydraulic Crimping Tool |
|---|---|
| Brand Name: | Lingkai |
| Model Number: | CPC50 |
| Certification: | ISO |
| Place of Origin: | ningbo |
| MOQ: | 1 set |
| Price: | get the latest price |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10000 sets/ month |
| Delivery Time: | 3-5 work days |
| Packaging Details: | wooden case |
| name: | hydraulic cable cutter |
| cutting force: | 7T |
| cutting range: | max 18-85mm |
| cutting wire: | Cu/al acsr |
| feature: | double speed oil |
| weight: | 6.5 kgs |
| Company Info. |
| Ningbo Lingkai Electric Power Equipment Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

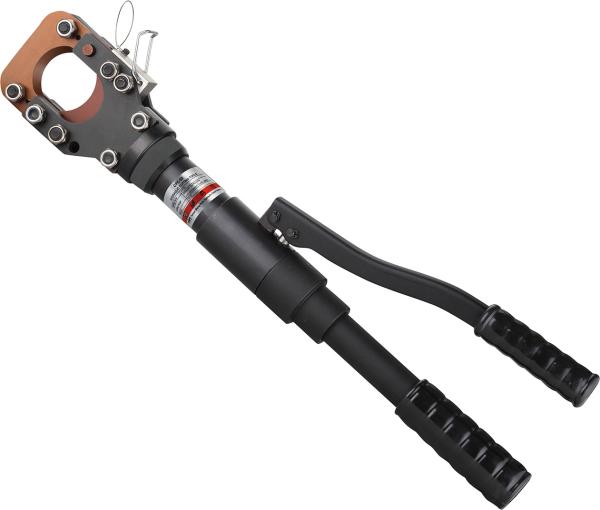

1.Hand operated hydraulic tool specifically designed to cut copper, aluminium and tel cables having a max overall diameter from 40 to 85mm.
2.The tool features a double speed action: a fast advancing speed for rapid approach of the blades to the cable and a slower more powerful speed for cutting.
3.The blades are manufactured from high strength special steel, heat treated to ensure a long service life.
4.The head can be easily opened to allow the cutting of running cables.
| CPC 20 A | Cutting force: 4T | Cutting range: Max 18mm ACSR, Max 20mm armored Cu/Al; Max 20mm steel wire | Weight : 3.0 kgs | Length: 420mm |
| CPC-30A | 8 T | Max 30mm Cu/Al ,ACSR, telephone cable | 4.0 kgs | 525mm |
| CPC-50 | 6T | Max 50mm Cu/Al. ACSR., telephone cable | 6.5kgs | 620mm |
| CPC-75 | 8T | Max 75mm Cu/Al ACSR cable, telephone cable | 7.5kgs | 665mm |
| CPC-85 | 10T | Max 85mm Cu/Al, ACSR, telephone cable | 9.5kgs | 800mm |
| CPC-40FR | 7T | Max25mm steel wire,max 40mm ACSR AL/CU | 6.0kgs | 650mm |
Features:
Double speed oil inlet design, acts quickly
Scissors style head for easy positioning wire
The head could be rotated at 180 degress for adjusting working angle
The tool could be operated at 360 degree.especially suitable for operation at no foothold field or at high altitude.
|
