| Categories | MPO Fiber Cable |
|---|---|
| Brand Name: | Geehe |
| Model Number: | GH-MPO-005 |
| Certification: | ISO9001:2015, ISO14001：2015,CE |
| Place of Origin: | China Mainland |
| MOQ: | 300 pcs |
| Price: | Negotiation |
| Payment Terms: | T/T, L/C, Western Union,Paypal,, MoneyGram |
| Supply Ability: | 9,800 pcs/day |
| Delivery Time: | 5-7 Working Days for shipping |
| Packaging Details: | Individual PE Bags, paper outer cartons |
| Model Name: | MPO To LC Fanout 12 Fiber Cable |
| Fiber Mode: | Single Mode,Multi Mode |
| Jacket OD: | 0.9mm |
| Connector Type: | MPO to LC |
| Jacket Color: | Colorful:Magenta/Beige/Aqua/Green/Yellow,Red,etc |
| Wavelength: | 850/1300nm |
| Fiber Length: | 1m,3m,5m or OEM |
| Minimum Bend Radius: | 7.5mm |
| 10G Ethernet Distance: | 400m at 850nm |
| 40/100G Ethernet Distance: | 150m at 850nm |

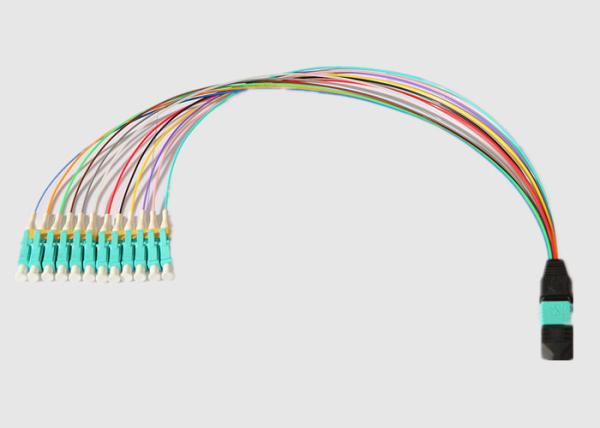

Multi Mode 0.9mm 12 Cores OFNR MPO To LC Fanout 12 Fiber Cable
Basic Information:
MPO 12 Fiber Cables are most commonly used to establish a connection between two high-density fiber patch panels in order to consolidate the fibers. MPO connectors are able to deliver dozens of fiber strands contained within a single unit. Alternative applications include setting up a 40G (40GBASE-SR4) link in between a set of QSFP+ transceivers.
MPO on one end in 8, 12, or 24 fiber interface, with LC Simplex or duplex connectors, also available in different fiber modes including Singlemode(OS2) & multimode (OM1 ~ OM5) with customized colors, materials and length.
Features&Benefits:
Specifications and Parameter :
MPO Fiber Optic Performance:
| MPO Connector | Standard Sm | Low Loss Sm | Standard Mm | Low Loss Mm | |
| Insertion Loss | Typical(dB) | 0.35 | 0.2 | 0.35 | 0.2 |
| Maximum(dB) | 0.75 | 0.35 | 0.6 | 0.35 | |
| Return Loss (dB) | ≥60 for APC (8 angle polish) | ≥20 for PC | |||
| ≥50 for PC | — | ||||
| Male/Female(dB) | Male:with pins,Female:without pins | ||||
| Tensile Strength (dB) | ≤0.3 ( max 66N ) | ||||
| Vibration (dB) | ≤0.3 ( 10-55Hz ) | ||||
| Thermal Cycle (dB) | ≤0.3 (-40~75℃, 21cycles) | ||||
Geometric parameter of end-face:
| Item | Spec | ||||
| SM | MM | ||||
| RX(mm) | MIN 2000 | ||||
| RY(mm) | MIN 5 | ||||
| Fiber Height (nm) | 1000-3500 | ||||
| Max. diff. Height all (nm) | MAX: 500 | ||||
| Max. diff. Height adj (nm) | MAX: 300 | ||||
| X-Axis Angle ( °) | -0.2 ~ 0.2 | ||||
| Y-Axis Angle ( °) | PC: -0.2 ~ 0.2 APC: 7.8 ~ 8.2 | -0.2 ~ 0.2 | |||
| Core Dip | N/A | -100 ~ 200 | |||
Ordering Information:
| MPO | -XX | -XX | -XX | -X | -XX | -X | -XX |
| A1: G657A1 A2: G657A2 M3: OM3 M4: OM4 M5: OM5 | LZ: LSZH NP: OFNP NR: OFNR | FF: MPO /MPO(female to female ) MF: MPO/MPO (male to a female) MM: MPO/MPO (male to male) | L: Low loss B: Standard loss | 12:1×12 core 48:4×12 core 72:6×12 core 96:8×12 core | A: TIA568 through-type B: TIA568 Reverse type C: TIA568 cross-type | 5M to 50M | |
| Gender Type | Housing color | Ferrule | Connector loss standard | Fiber cores | Polarity | Fiber length |
MPO to Lc Fiber Patch Cord Application:
