| Categories | Sharp TFT LCD Display |
|---|---|
| Brand Name: | SHARP |
| Model Number: | LQ035Q7DH06 |
| Certification: | IS09001 |
| Place of Origin: | Japan |
| MOQ: | 1PCS |
| Payment Terms: | T/T IN ADVANCE, WESTERN UNION, PAYPAL, ESCROW |
| Supply Ability: | 500PCS |
| Delivery Time: | Working Day:1-3 Days |
| Packaging Details: | Original Factory Package |
| Screen Size: | 3.5 inch |
| Pixel Number: | 240(RGB)×320, QVGA, 113PPI |
| Display Area: | 53.64(W)×71.52(H) mm |
| Outline Size: | 65(W)×86.2(H) ×4.2(D) mm |
| Environment: | -10 ~ 70 °C |
| Panel Type: | a-Si TFT-LCD, LCM |
| Pixel Format: | RGB Vertical Stripe |
| Bezel Opening: | 57.4(W)×75.2(H) mm |
| Surface: | Hard coating (2H) |
| Lamp Type: | 6S1P WLED , Without Driver |
| Company Info. |
| Sapientia Display Co.,LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |

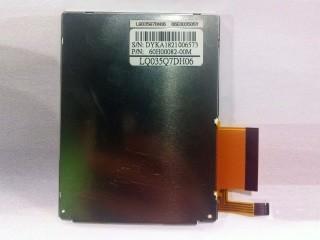

LQ035Q7DH06 3.5 INCH SHARP TFT-LCD 240(RGB)×320, QVGA, 113PPI PIXEL -10 ~ 70 °C Industrial LCD Panel
1. Main Information:
The LQ035Q7DH06 is a 3.5 inch diagonal a-Si TFT-LCD display panel product from Sharp Corporation (hereafter called Sharp), with an integral WLED backlight system, without backlight driver, touchscreen 4-wire Resistive Touch. It features an operating temperature range of -10 ~ 70°C , a storage temperature range of -25 ~ 70°C . It's general features are summarized by Panelook in the following: Portrait type, With Touch, Transflective, WLED Backlight, U/D,L/R Reverse , AD-TFT (Advanced TFT), 2 in 1 FPC. Based on its features, Panelook recommend that this model be applied to Handheld & PDA etc
| Pixel Features : | Resolution | 240(RGB)×320, QVGA | Dot Pitch(mm) | 0.0745×0.2235 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.2235×0.2235 (H×V) [113PPI] | |
| Mechanical Size : | Active Area(mm) | 53.64(H) × 71.52(V) | Bezel Area(mm) | 57.4(H) × 75.2(V) |
| Outline Dim.(mm) | 65(H) × 86.2(V) | Depth(mm) | 4.0±0.2 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | - |
| Aspect Ratio | 3:4 (H:V) | Orientation | Portrait type | |
| Touch Panel : | Touch Points | 1 point | Touch Panel | 4-wire Resistive Touch |
| TP Controller | Without touch controller | Touch Signal | - | |
| Other Spec : | Weight | 45.0g (Typ.) | Treatment | Hard coating (2H) |
| Basic Information : | Luminance(cd/m²) | 225 (Typ.) | Contrast Ratio | 80:1 (Typ.) (Transmissive) 3:1 (Typ.) (Reflective) |
|---|---|---|---|---|
| Viewing Angle | 40/40/40/50 (Typ.)(CR≥2) | Display Mode | TN, Normally White, Transflective | |
| Best View on | 6 o'clock | Response(ms) | 30/50 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.300; Y:0.330 | Display Colors | 262K (6-bit) |
| Color Temperature | 7203K | White Uniformity | 1.25/1.43 (Typ./Max.)(9 points) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
| 3D Type | - | Reflectance | 2.5/4.0% (Min./Typ.) |
| Backlight Features: | Shape | 1 string | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 6S1P | Life Time | - | |
| Lamp Electrical : | Voltage Supply | 19.2/21.6V (Typ./Max.) | Current Supply | 20/22mA (Typ./Max.) | ||
| Consumption | 384mW (Typ.) | |||||
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
|
