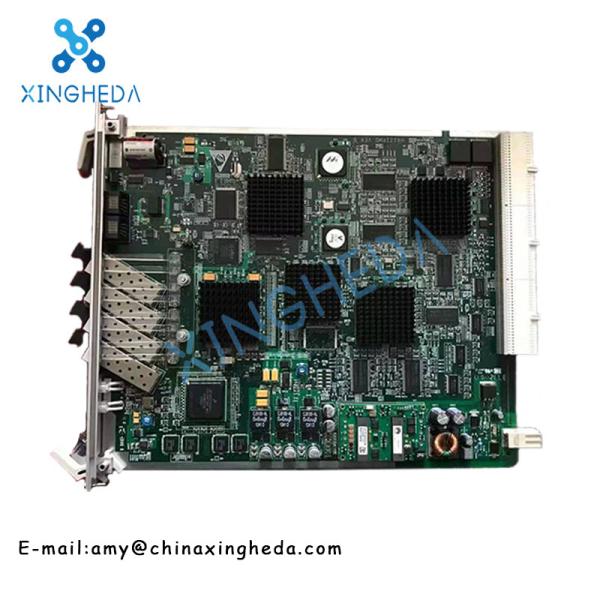

Huawei IPMD H612IPMD H601IPMD H61-IPMD broadband control board
Product Description:
Huawei HONET UA5000 multi-service access product integrates traditional voice, VoIP, private line, PBX, video, and multimedia services for subscribers. It provides GE, FE, E1, GPON, and EPON network ports for transmitting services upstream. Huawei HONET UA5000 can be used in scenarios such as integrated access, broadband access, and enterprise access.
The IPMD board is an IP service processing board. The IPMD board has the following functions:
The basic working principles of the IPMD board are as follows:
Port | Function | Position | Connection |
|---|---|---|---|
| COM: RS-232 maintenance serial port | Supports the local and remote maintenance. Through this port, you can configure the system in CLI through software such as HyperTerminal. The default baud rate is 9600 bit/s. | Front panel | Use the local maintenance serial port cable to connect the port to the serial port of the maintenance terminal. |
| ETH: 10/100M Base-T maintenance network port | Through this port, you can configure the system to work in the full-duplex mode. | Front panel | Use the network cable to connect the port to the network port of the maintenance terminal. |
| Broadband bus port | Subtends extended shelves. | HLAF (front access shelf) | Use the broadband subtending cable to connect the port to the HLEF transfer board in the extended shelf. |
| Communicates with service slots in the same shelf. | - | Communicates with service slots through the backplane. | |
| Four GE optical ports | Functions as the uplink port. | Front panel | Use the optical fiber to connect the port to upstream devices after the SFP optical unit is installed. |
| Two FE/GE electrical ports | Functions as the uplink/cascading port or access the LAN service. | EFTF (front access shelf) | Use the IPMD FE/GE cable-front access to connect the port to the peer device. |
| Backplane of the HABA shelf | Use the IPMD FE/GE cable-rear access to connect the port to the peer device. | ||
| RS-485 serial port | Monitors the power supply. | HWCF (front access shelf) | Use the fan monitoring cable to connect the port to the DB9 connector of the fan tray. |
| Environment monitoring serial port | Manages the intelligent MDF and the fan tray. | HWCF (front access shelf) | Use the ESC monitoring cable to connect the port to the COM2 port on the ESC board. |
Detailed images:
If you are interested, please let us know the specific model. We
will provide the best service and the best price!
