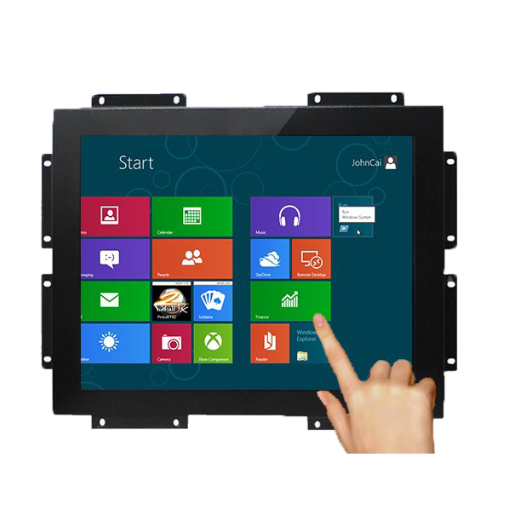

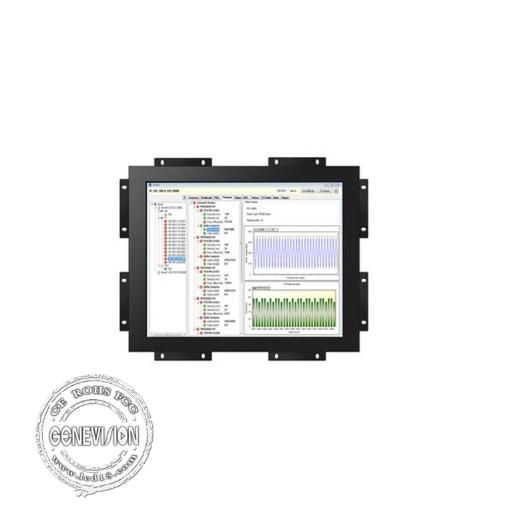

15.6 Inch Wall Mount Open Frame LCD Advertising Display USB Interface with Fixation Frame
The open frameLCD open frame touch monitor is a touch solution
developed for automated information systems, gaming and
entertainment, as well as light industrial automation
controls,making touchmonitor product line even more complete. The
touch monitor is based on the concept "Design for simple and
nvenience", with proven expertise and reliability. Precise small
frame design will be completely sealed touch screen,so that it has
dust-proof, dirt-proof and water-proof function, and make it easier
for customers to install the screen in the cabinet. Designed and
built by Mercedes, the model has a long life cycle Period and can
supply long-term demands. Even if the future replacement of a new
generation of LCD panels, you do not need to do external changes.
Our LCD screen is available in a variety of industry-leading touch
technologies and is available in single-touch and multi-touch
versions,including Four-wire resistive, five-wire resistive,
infrared, PCAP and surface acoustic wave. This model has a global
standard of agency certification with 1 year warranty and overall
after-sale service. The open frame LCD touch monitor is a
cost-effective touch solution for system integrators and
value-added resellers .
| Size | 15.6/18.5/21.5/27/32 inch |
| Case/ frame color | Black / Silver color |
| Display type | Active matrix TFT LCD, LED backlight |
| Aspect ratio | 4:03 |
| Active Area Dimensions | 304mm(H) x 228mm(V) |
| The display size | Monitor(329.5mm(W) x256.5mm(H), |
| Thickness: 45 mm) | |
| Resistive version(329.5mm(W) x256.5mm(H),Thickness: 48mm) | |
| SAW: (329.5mm(W) x 256.5 mm(H),Thickness: 50 mm) | |
| Infrared version (342mm(W)x266mm(H), | |
| Thickness: 53 mm) | |
| Projected Capacitive (358.5 mm(W)x282.5 mm(H), | |
| Thickness:48 mm) | |
| Resolution(pixel) | 1024 x 768 |
| Other supported | 1024 x 768 ; 800 x 600; 720 x 400 ;720 x 350; 640 x 480,60 Hz;65Hz;75Hz |
| resolutions(pixel) | |
| Display Colors | 16.7M |
| Brightness (Standard) | LCD panel: 450 nits(Typ.); 4-wire resistive / 5-wire resistive:400 nits(Typ.); Projected Capacitive / Surface Acoustic Wave/ Infrared:450nits(Typ.) |
| Response time (standard) | 16 msec |
| View Angle(from center) | Horizontal (left / right): ± 80 ° or total 160 °Vertical (up / down): ± 70 ° or a total of 140 ° |
| Contrast ratio (standard) | 700: 1(Typ.) |
| Input video formats | Analog VGA and digital DVI (optional HDM I) |
| Input Video Signal Connector | Female head DE - 15 connector, female head DVI - D, Dual - Link connector, female head HD connector |
| Sweep frequency | Horizontal: 31.5 - 60.2 kHz; vertical: 56.3 - 75 Hz |
| External DC, input voltage DC: 12V; INPUT POWER CONNECTOR SPECIFICATIONS (for all in one PC) - Type: DC cartridge receptacle; Cartridge ID: 5.5 mm(± 0.3 mm); Needle OD: 2.0 mm (+0.0 -0.1 mm); Cartridge depth: 8.0 mm (± 0.3 mm); | |
| Power | Power connector (on power adapter) - Type: DC cartridge Plug: Cartridge OD: 5.5 mm (± 0.1mm); Needle Inner Diameter: 2.1 mm (± 0.1 mm); Cartridge Length: 9.5 mm (± 0.5 mm) |
| Power consumption (standard) | Display only: 13.5W(Typ.) |
| Temperature | Operating: 0°C to 40°C; Storage: -20°C to 60°C |
| Humidity | Operating: 20% to 80% (no condensation); |
| Storage: 10% to 90% (non-condensing) | |
| MTBF | 50,000 hours |
| Weight (approx.) | Net weight: 3.5 kg(Typ.); Shipping: (5 kg (reference) |
| Warranty | 1 year |
| OSD | Digital OSD |
| User Controls | OSD Button: Menu, Up, Down, Select, Power; OSD: Contrast, Brightness, Horizontal / Vertical Bits Clock, phase, call default, language (English, German, Spanish, Japanese,French); OSD Fail / Active: Power, OSD menu |
| Mounting options | 100mm or 75mm VESA mounting,open bracket mounti |
| Agency Approvals | UL,cUL (Recognized), FCC, CE,CCC, China RoHS CQC |
| application | office,SCHOOL,POS,hospital,government,FOOD,exhibition,advertising |
|
