| Categories | Solid Control Equipment Drilling |
|---|---|
| Brand Name: | ATO |
| Model Number: | SLH-750B |
| Certification: | ISO9001-2000 |
| Place of Origin: | China |
| MOQ: | 1sets |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50sets |
| Delivery Time: | 30days |
| Packaging Details: | Wooden |
| Product: | Jet mud mixinghopper unit |
| Model: | SLH-750B |
| Capacity(m3/h): | 320(1408GPM) |
| Pressure (Mpa): | 0.25~0.4 |
| Motor (Kw): | 75(100HP) |
| Inlet (Inch): | 8 |
| Outlet (Inch): | 6 |
| Weight (Kg): | 1785 |
| Dimension L×W×H(mm): | 2200×1840×1150 |
| Company Info. |
| XIAN ATO INTERNATIONAL CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
SL series Jet Mud mixer aslo called mud mixing hopper unit is special equipment to prepare and increase the drilling fluids weight by adding and mixing bentonite, change the fluid density, change the mud density, viscosity, and dehydration. The effect is more prominent matching with Shear Pump. SL jet mud mixer is a unit used together with the solids control system for petroleum drilling and horizontal directional drilling(HDD). The unit includes one sand pump, one venturi mud mixing hopper and one jet mud mixing hopper and pump that are installed in a base with pipe valves. It is safe and stable and can be moved conveniently. At the same time,we can make Twin-Hopper Unit with two pumps according to the user requirements.

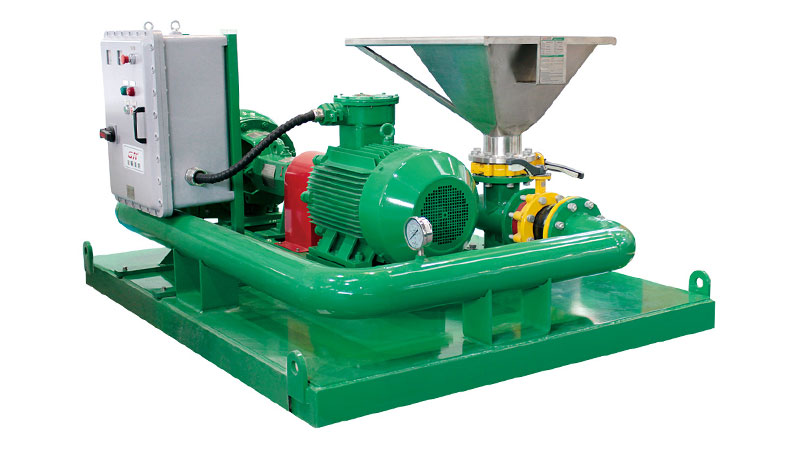

SL Jet Mud Mixing Hopper Unit
SL Jet mud Mixing Hopper Unit Technical Parameters
(Customized Jet mixing systems are available)
| Model | Capacity(m3/h) | Pressure (Mpa) | Motor (Kw) | Inlet (Inch) | Outlet (Inch) | Weight (Kg) | Dimension L×W×H(mm) |
| SLH-750B | 320(1408GPM) | 0.25~0.4 | 75(100HP) | 8 | 6 | 1785 | 2200×1840×1150 |
| SLH-550B | 272(1200GPM) | 55(75HP) | 8 | 6 | 1675 | 2200×1840×1100 | |
| SLH-450B | 200(880GPM) | 45(60HP) | 6 | 6 | 1475 | 2200×1840×1135 | |
| SLH-370B | 150(660GPM) | 37(50HP) | 6 | 6 | 1460 | 2200×1840×1135 | |
| SLH-300B | 120(528GPM) | 30(40HP) | 5 | 6 | 1380 | 2200×1840×1100 | |
| SLH-220B | 90(400GPM) | 22(30HP) | 5 | 4 | 1167 | 1850×1540×1000 | |
| SLH-185B | 65(286GPM) | 18.5(25HP) | 4 | 4 | 1147 | 1850×1540×1030 | |
| SLH-150B | 55(242GPM) | 15(20HP) | 4 | 4 | 970 | ||
| SLH-110B | 45(200GPM) | 11(15HP) | 4 | 4 | 950 | ||
| Remarks | Electric control cabinet should be quoted separately, weight & dimension don't included control cabinet | ||||||

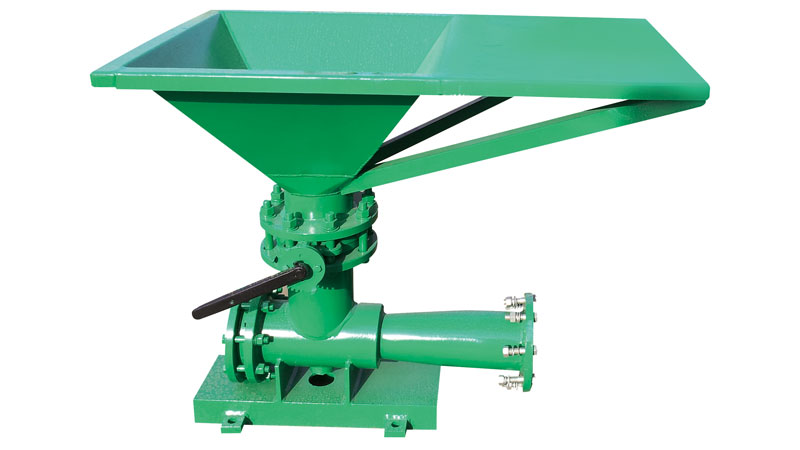

Mud Mixing Hopper Technical Parameters
| Model | Pressure | Capacity | Nozzle | Inlet | Outlet | Weight | Dimension: L×W×H |
| SLDSB | 0.25~0.4Mpa | 500-1500 GPM (113-340m3/h) | 40mm | 6 Inch | 6 Inch | 174Kg | 1100×680×949mm |
| SLDMB | 200-500 GPM (45-113m3/h) | 20mm | 4 Inch | 4 Inch | 113Kg | 850×570×851mm |
Remarks:
1) The material of the drilling mud mixing hopper can be either Stainless Steel or carbon steel.
2) Venturi type drilling mud mixing hopper and vortex type mud mixing hopper are both avaliable for option.
|
