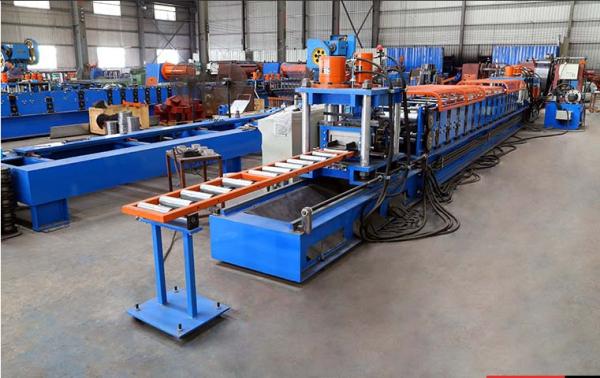

10m/min Thickness 4mm C Purlin Roll Forming Machine

Thickness 4mm Shaft Diameter 100mm C Purlin Roll Forming Machine

Parameter

Main features

The advantages of C purlin machine AUTOMATIC size-change type are as follows:
1.Produce different purlin size without changing rollers or spacers.
2.No need changing cutter for different size.
3.Easy operation, low maintenance cost
4.Infinite sizing(any size within machine range),help to save material
5.Optional Punch hole at any position of purlin web side and flange side


Decoiler

Manually decoiler: one set.Un-powered,manually control steel coil inner bore shrinkage and stop
Max feeding width: 500mm, coil ID range 470±30mm,Max capacity:3Ton

With 3 tons hydraulic decoiler for option



Main Machine

With 3 cylinder(one cylinder for single hole and 2 cylinders for dual-holes)

Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.
with black treatment or Hard-Chrome Coating for options.
With feeding material guide, body framemade from 400# H type steel by welding

No need to change cutter for different size,made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 30mm steel plate by welding
Pre-punching & Pre-cutting, stop to punch, stop to cut
hydraulic motor:7.5KW, Hydraulic pressure range: 0-16Mpa



Procuct show

Exit Rack




PLC Control System
