| Categories | Punching Mesh |
|---|---|
| Brand Name: | Changte |
| Model Number: | CT-PM6 |
| Certification: | ISO9001 |
| Place of Origin: | China |
| MOQ: | 10 Pieces |
| Payment Terms: | Can be negotiated |
| Supply Ability: | 3000 ton per year |
| Delivery Time: | 3-20 work days |
| Packaging Details: | Iron pallet and waterproof plastic or wooden case |
| Name: | Perforated Metal Mesh Screen |
| Material: | Stainless Steel plata ,Aluminum,Galvanized,Brass (Copper) |
| Thickness: | 1-10mm,0.6-1.5mm or Customized |
| Hole shape: | round,square,triangle,slot,Diamond,hexagonal, etc |
| Opening: | 10%,20%, 30%, 60% |
| Hole size: | Customize Make |
| Width: | 0.8m - 1.22m |
| Type: | Perforated Mesh |
| Surface treatment: | Untreatment,Hot Dipped Galvanized,Powder Coated,Pvdf,polished |
| Sample: | Avaliable Sample |

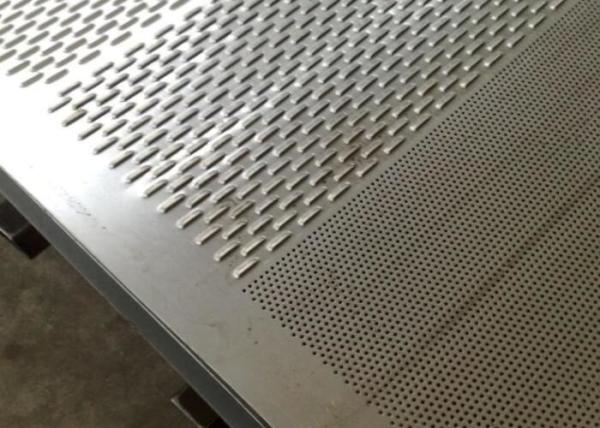

0.8mm Different Hole Shape Punching Metal Mesh
Perforated metal plates/Punching Metal Mesh/Perforated Metal Sheets
is manufactured by cold punching sheets of metal with an
arrangement of holes of any shape and size in various patterns.
There is a large variety of perforated sheet and we only stock the
more popular specifications although others are available to
special order.
Perforated sheets and plates are used in a vast number of
industries for sorting and screening any material from sugar and
spice to sand and gravel. They are used extensively in heating and
ventilating installations where they combine the practical with the
ornamental.
Perforated metal mesh specification:
| Product name | perforated metal mesh sheet, stamping plates, or perforated screen |
| Material | Steel, Aluminium,Stainless steel, Bronze, Brass, Titanium, and so on. |
| Thickness | 0.3-12.0mm |
| Hole shape | round, square, diamond,rectangular perforations,octagonal cane,grecian, |
| plum blossom etc,can be made as your design. | |
| Mesh size | 1220*2440mm,1200*2400mm,1000*2000mm or customized |
| Surface treatment | 1.Powder coated |
| 2.Fluorocarbon spraying(PVDF) | |
| 3.Polishing | |
| Application | 1.Aerospace: nacelles, fuel filters, air filters |
| 2.Appliances: dish washer strainers, microwave screens, dryer and washer drums, cylinders for gas burners, water heaters and heat pumps, flame arrestors | |
| 3.Architectural: stairs, ceilings, walls, floors, shades, decorative, sound absorption | |
| 4.Automotive: fuel filters, speakers, diffusers, muffler guards, protective radiator grills | |
| 5.Hammer mill: screens for sizing and separating | |
| 6.Industrial equipment: conveyors, dryers, heat dispersion, guards, diffusers, EMI/RFI protection | |
| 7.Pollution control: filters, separators | |
| 8.Mining: screens | |
| 9.Security: screens, walls, doors, ceilings, guards | |
| 10.Sugar processing: centrifuge screens, mud filter screens, backing screens, filter leaves, screens for dewatering and desanding, diffuser drainage plates | |
| Features | 1.can be formed easily |
| 2.can be paint or polished | |
| 3.easy installation | |
| 4.attractive appearance | |
| 5.wide range of thicknesses available | |
| 6.largest selection of hole size patterns and configurations | |
| 7.durable | |
| Package | 1.On pallet with waterproof cloth |
| 2.In wooden case with waterproof paper | |
| 3.In carton box | |
| 4.In roll with woven bag | |
| 5.In bulk or In bundle |
The common sizes of Perforated metal mesh:
| Material | Thickness of Metal (mm) | Hole Dia. (mm) | Pitch(mm) | Sheet Width (m) | Sheet Length (m) | Porosity (%) | Weight (kg/m2) |
| Rolling plate | 0.2 | 6 | 2 | 1 | 20 | 44 | 0.88 |
| 0.35 | 5 | 4 | 1 | 20 | 24 | 2 | |
| 0.45 | 6 | 3 | 1 | 20 | 35 | 2.5 | |
| 0.8 | 3 | 3 | 1 | 20 | 19.6 | 3 | |
| Flat plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 3.14 |
| 0.55 | 1.1 | 2.2 | 1 | 2 | 22.67 | 3.411 | |
| 0.55 | 1.5 | 2.8 | 1 | 2 | 26.03 | 3.268 | |
| 0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | 5 | |
| 0.8 | 2 | 3.4 | 1 | 2 | 30.78 | 4.465 | |
| 1.5 | 2 | 2 | 1 | 2 | 19.6 | 9.4 | |
| 1.5 | 5 | 8 | 1 | 2 | 35.39 | 7.843 | |
| 3 | 5 | 16 | 1 | 2 | 19.6 | 18.8 | |
| Stainless steel plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 3.14 |
| 0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | 5 | |
| 1 | 2 | 2 | 1 | 2 | 19.6 | 6.28 | |
| 2 | 5 | 16 | 1 | 2 | 19.6 | 6.28 | |
| Aluminum plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 1.08 |
| 0.8 | 3 | 3 | 1 | 2 | 19.6 | 1.72 | |
| 1.6 | 2 | 2 | 1 | 2 | 19.6 | 3.24 | |
| 3 | 4 | 16 | 1 | 2 | 19.6 |
Punching metal mesh packing,
waterproof paper inside and woven bag outside per roll; steel belt pallet or steel pipe pallet per piece; in wooden box per piece.
|
