| Categories | Silicone Coated Release Liner |
|---|---|
| Brand Name: | UPASS |
| Model Number: | PP |
| Certification: | ISO9001 |
| Place of Origin: | China |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | TT/LC |
| Supply Ability: | 600 Tons/Month |
| Delivery Time: | Negotiable |
| Packaging Details: | Wooden Pallet |
| Product Name: | PP UV Silicone Coated Release Liner For Self-adhesive Membrane |
| Material: | Polypropylene (PP) |
| Thickness: | 0.03-0.15mm |
| Width: | 100-2000mm |
| Application: | Used for waterproofing membranes, adhesive tapes,etc. |
| Color: | Black, Grey, White, Blue, Green, etc. |
| Performance: | One or two side silicone coated |
| Process: | Three-layers Blowing |
| Company Info. |
| Upass Material Technology (Shanghai) Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

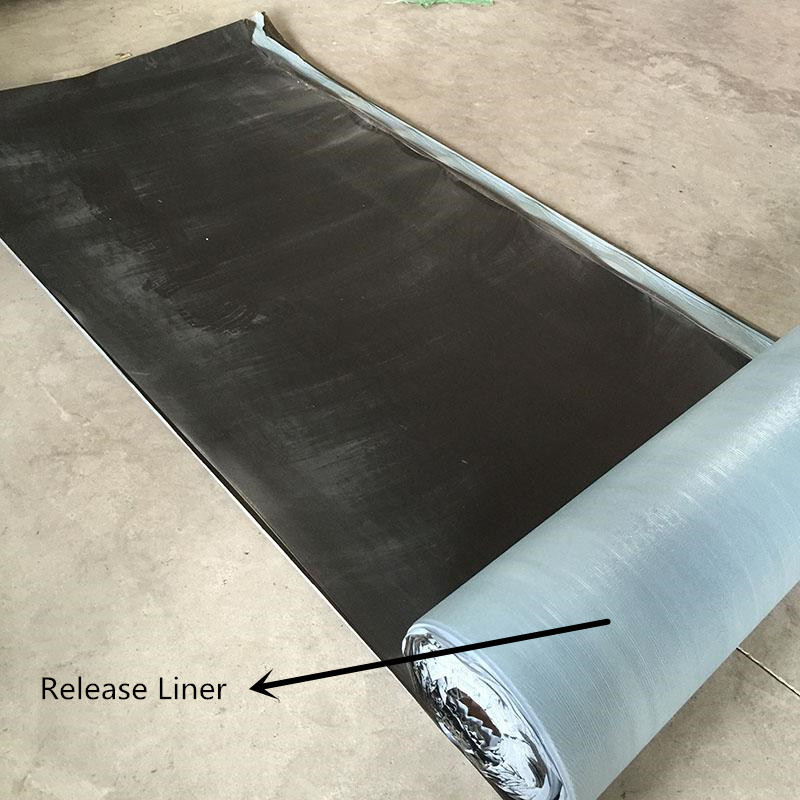

Silicone coated release liner refers to the film with separative film on the surface.
Silicone coated on either one sided or two sided. It will be peeled off when use the
self-adhesive products, such as bitumen waterproof membranes, PVC floor, butyl tapes
and other products.
According to different usage , the release force is different, the viscidity of release
product glue is different , to adjust the release force, to make it have the light and stable
release force during peeling. There are thermal curing and UV curing for silicone coating
due to different release force requirements.
PP UV Silicone Coated Release Liner For Self-adhesive Membrane which used plastic
Polypropylene (PP) film as the carrier, make it high temperature resistance than PE.
Use UV curing type for silicon coated, make it high subsequent adhesion(more than 90%)
Parameter:
| Products Name | UV Curing PP Silicone Coated Release Liner For Waterproof Membrane | Spec. | 0.05mm*1040 | ||
| Detection Methed | Q/TPXP 1-2013 | Date | 2021.3.3 | ||
| NO. | Item | Factory Requirement | Detection Value | Individual Determination | |
| 1 | Appearance | No bubbles, no stains, no damage, no impurities | Qualified | Qualified | |
| 2 | Spec. | Width | 1040±10mm | 1041 | Qualified |
| Thickness | 0.05±0.005mm | 0.051 | Qualified | ||
| 3 | Max.F (N/50mm) | TD (CD) | ≥30 | 58 | Qualified |
| MD | ≥30 | 92 | Qualified | ||
| 4 | Elongation (%) | TD (CD) | ≥150 | 764 | Qualified |
| MD | ≥200 | 528 | Qualified | ||
| 5 | Tensile Strength | TD (CD) | ≥16 | 23 | Qualified |
| MD | ≥18 | 36 | Qualified | ||
| 6 | Release Force (N/25mm) | 3-8g, 10-15g | 0.06 | Qualified | |
| 7 | Subsequent Adhesion (%) | ≥90 | 91 | Qualified | |
| ♦ Used for self-adhesive waterproof membranes and other waterproof materials, adhesive tapes |
| ♦ Used for cables production, packaging materials |
| ♦ Used for cast materials, electronic applications, ceramic capacitors, window materials. printing, electronic, advertisements |
