CIMC 6x4 Drive Foam Pumper Water Tanker Fire Trucks with 65m Discharge Range

Categories Water Tanker Fire Truck
Brand Name: CIMC Jindun
Model Number: SG150
Certification: ISO9001/CCC
Place of Origin: SHANGHAI,CHINA
MOQ: 1 unit
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time: 90days
Supply Ability: 300 units / year
Packaging Details: standard package for international export
Material: Q235A steel
Flow: 6000L/M
Pressure: 1.0MPa
Position: On the bumper
Priming time: ≤80s
Manufacturer: Xiongzhen
Foam range: ≥65m
water range: ≥60m
Product name: CIMC water tanker fire truck
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

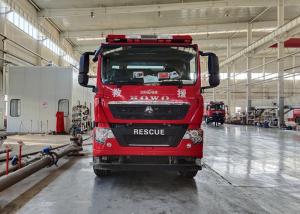

CIMC 6x4 Drive Foam Pumper Water Tanker Fire Trucks with 65m Discharge Range

CIMC 6x4 Drive Foam-Pumper Water Tanker Fire Trucks with 65m Discharge Range


Vehicle

Dimension (L×W×H)9720×2500×3700 (mm)
Gross weight28000 (kg)
Complete vehicle shipping mass15350 (kg)
Seat (inc. driver)2
Max. power265kw


Chassis

ManufacturerDaimler
ModelActros3336
Drive type6x4
CabFlattop Four door lengthen cab
Wheelbase4500+1350mm
Max. speed95km/h
Min. turning diameter≤21m
Approach angle17°
Departure angle13°
Engine typeIn-line six-cylinder, turbo inter-cooling, electronic unit pump diesel engine
ModelOM501LA.IV/2
Max. torque1850N.M
Emission standardChina IV/euro IV
ClutchMonolithic, Dry
GearboxManual, 16 forward gear


Fire pump

ManufacturerRosenbauer
ModelR600
Pressure/ Flow1.0MPa/90L/s
Primer typePiston primer pump
Max. vacuum degree≥85 kPa
Priming time≤80s
Air foam proportionerPH48, manual, mixing ratio:3%, 6%

Fire fighting system

Suction inlet

1×DN150 suction
1×DN150 pneumatic butterfly valve

Monitor pipeline

1×DN100 monitor pipeline
1×DN100 butterfly valve

Outlet

2×DN80 ordinary pressure outlet
1×DN50 ball valve

Residual water outletWater cock
Cooling waterCooling installation

Onboard equipments

No.ItemQTYNOTE
1Suction hose 150×2000mm4Snap-type
2Fire hose 65mm×20m6Snap-type
3Fire hose 80mm×20m6Snap-type
4Water filter1Snap-type
5Delivery bead FFS801three-way wye Snap-type
6Collecting breeching FJ1501Snap-type
7Increaser KJ65/80280 turn 65
8Increaser480 male and 65 male turn
9Suction coupling1DN150 snap-type to DN100 screw type
10Suction wrench FS1502
11Hose bandage FP4704
12Hose strap FG6002
13Pillar hydrant wrench FB4501
14Underground hydrant wrench FBX8001
15hydraulic monitor QZG3.5/7.52snap-type
16Crowbar CT11
17Spade 2#1
18Fire axe GFJ8171


Pedal plate
Location: At the bottom of roller shutter door.
Material: Steel frame covered by aluminum alloy checkered plate
Structure: adopt the gas springs plus shutter fasten, safe and reliable, each petal plate bearing ≥150Kg





Company Profile:

Jindun as a member of China Fire Protection Association, was certified by TUV System, NFPA and CCCF. By excellent products and innovative technology, we are engaged in developing a “safe, livable and rich society.”

The company specializes in R & D and production of ladder cars, high pressure jet trucks, rail dual purpose fire engines, remote water supply vehicles, climbing platform vehicles, water tank foam cars, AT cars, emergency rescue vehicles, marine fire engines, anti-chemical detection vehicles, anti-chemical and decontamination vehicles, CAFS fire engines, airport fire engines, unmanned fire-fighting tankers, lighting fire engines, gas trucks, etc., and according to the changes of fire market and customer demand, Continue to develop high-end special fire engines and multifunctional and intelligent fire-fighting equipment.
