| Categories | Digital Inkjet Printer |
|---|---|
| Brand Name: | EcooGraphix |
| Model Number: | E-Press |
| Certification: | ISO9000, CE |
| Place of Origin: | China |
| MOQ: | 1 Set |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 Sets/Year |
| Delivery Time: | 25 Days |
| Packaging Details: | Standard Export Packing |
| Price: | Negotiable |
| Machine Classification: | Digital Textile Printing Machine |
| High Quality Mode: | 720 X 1440dpi, 26 Sqm/Hr |
| Production Model: | 360 X 1440dpi, 50 Sqm/Hr |
| High Speed Model: | 360 X 720dpi, 80 Sqm/Hr |
| Rip: | Texprint, Seeget, Photoprint, etc |
| Size: | Max. Width 1.8 Meters, Unlimited Length |
| Print Format: | PDF, PS, EPS, TIFF, AL etc. (RGB/CMYK) |
| Format Dimension: | 3000L x 1820W x 1900H (mm) |
| Print Head: | 4 EPSO DX5 print heads, Minimum 3.5 pl variable ink-drop nozzie. Absorb ink automatically, ink stack protect system self-provided |
| Company Info. |
| Hangzhou Ecoographix Digital Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

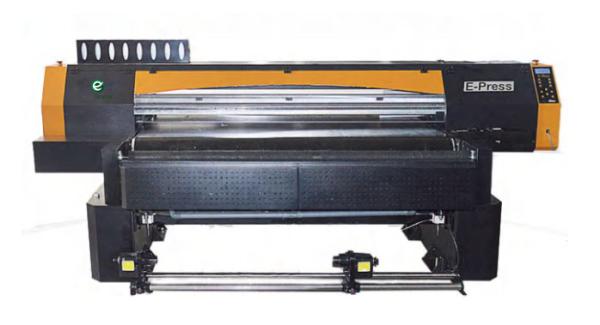

3 Modes Automatic Digital Textile Printing Machine With Stick Belt
◐◑ Features ◐◑
High-resolution printing
Minimum 3.5pl Variable Printing
Humanizated application mesa design
Super high cost-effective
EPSON DX5 print head
Extensible batch Prodcution Rack
Mass ink supply and ink storage alarm system
Automatic retractable fabric
Infrared heating drying
◐◑ Specifications ◐◑
ECOO Digital Printer With Stick Belt Machine
Model
E-Press
Resolution & Speed
High quality mode: 720 x 1440dpi, 26m²/hr,
Production model: 360 x 1440dpi, 50m²/hr,
High speed model: 360 x 720dpi, 80m²/hr
Feeding System
Release cloth automatically, optional tension system can be chosen;
Automatic belt clean&dry installation infrared heating
installation
Inks
4 colors, 6 colors, 8 colors optional, support with reactive, acid pigment and sublimation ink
Rip
Texprint, Seeget, PhotoPrint
Format Dimension
3000L x 1820W x 1900H (mm)
Print Head
4 EPSO DX5 print heads,
Minimum 3.5 pl variable ink-drop nozzie,
Absorb ink automatically, ink stack protect system self-provided
Media
Modalities: Roll to roll media;
Size: Max. width 1.8 meters, unlimited length;
Classification: cotton, silk, wool, cashmere, polyester, chinion
and other chemical fiber fabrics
Print Format
PDF, PS, EPS, TIFF, AL etc. (RGB/CMYK)
Environment Power
Temperature: 20-30ºC;
Humidity: 45-75%RH;
Gross weight: 5.5KW
Weight
1000KG
| ECOO Digital Printer With Stick Belt Machine | |
| Model | E-Press |
| Resolution & Speed | High quality mode: 720 x 1440dpi, 26m²/hr Production model: 360 x 1440dpi, 50m²/hr High speed model: 360 x 720dpi, 80m²/hr |
| Feeding System | Release cloth automatically,optional tension system can be chosen; Automatic belt clean&dry installation infrared heating installation |
| Inks | 4 colors, 6 colors, 8 colors optional, support with reactive, acid pigment and sublimation ink |
| Rip | Texprint, Seeget, PhotoPrint |
| Format Dimension | 3000L x 1820W x 1900H (mm) |
| Print Head | 4 EPSO DX5 print heads; Minimum 3.5 pl variable ink-drop nozzie; Absorb ink automatically, ink stack protect system self-provided |
| Media | Modalities: Roll to roll media Size: Max. width 1.8 meters, unlimited length Classification: cotton, silk, wool, cashmere, polyester, chinion and other chemical fiber fabrics |
| Print Format | PDF, PS, EPS, TIFF, AL etc. (RGB/CMYK) |
| Environment Power | Temperature: 20-30ºC Humidity: 45-75%RH Gross weight: 5.5KW |
| Weight | 1000KG |
◐◑ Producing And Packaging ◐◑
From producing to delivery, we make every details very carefully to
guarantee the good product quality and service to customers.
◐◑ Certificates ◐◑
◐◑ FAQ ◐◑
Q1: What are your main products ?
A: Our main products are the Prepress 4up and 8up Online/Offline
Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates,
Offset Inks, Offset Printing Blankets, Postpress Packing Equipment
and so on.
You can get the equipment and consumables all in one and no worry
about the after-sales service from our company.
Q2: Where is your factory ?
A: Our CTP processor machine factory is in Shanghai, you are warmly
welcome to visit our factory!
Q3: How long is the lead time ?
A: The lead time is normally 30 days. We can accelerate for emergency
cases.
Q4: Is there any certification for your machine ?
A: Yes, all our machines have been certified by SGS and CE.
Q5: How long is the warranty period ?
A: EcooGraphix guarantees 1 year of warranty for laser head and spare
parts.
Q6: What is your normal payment term ?
A: Normally, 30% TT deposit, 70% before shipping, or LC at sight.
Q7: What about the installation and after-sales technician support
?
A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.
These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
|
