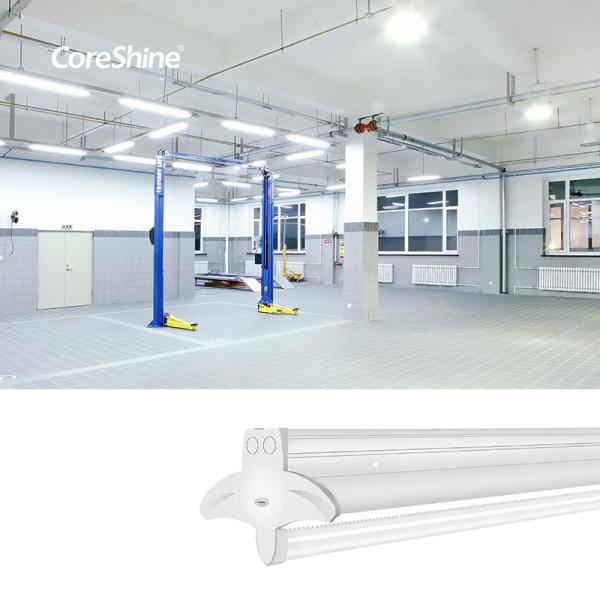

Coreshine Energy Efficient 1500mm Warehouse High Bay Lights

With a color rendering index of Ra>80, color temperatures of 3000k, 4000k, 5000k and 6000k, and low UGR, it could meet environmental requirements and comply with funding guidelines for energy-efficient building and lighting solutions.

Trunking Rail

· Trunking rail as standard with 5, 8 or 12-core through-wiring with 2.5mm²cable for power supply and 1.5mm² cable for dimming control.

· The maximum current is 16A, allowing 70pcs of 1500mm 45W in one serial row 220VAC power supply,up to 100 meters.

Emergency Lighting Function

· It can work on normal mains and automatically switch to emergency supply in the event of a power failure to provide sufficient light and ensure safe evacuation in emergency situations.

· A wide variety of self contained battery is available, as well as two independent emergency lighting circuits in the trunking.

Installation

· Pendant Chain Installation

· Pendant Cord Installation

· Pendant Rod Installation

· Surface Mounted

. Mounting Clip

Node Connector

· L, T and X Standard Module Node connectors

· Each node connector has diverse of electrical feed-in and feed-out

Install to trunking rail where there is no requirement of luminaire .

At each of the blank cover there is a stopper to prevent the lights from being emmited.

UPLIGHTING

Directs 10% of the light upward to the celling and 90% reflected onto the floor ,with or without uplighting is available

LENGTH OPTIONS

Different length with various power is available

• Store, plaza, mall, supermarket and warehouse etc.
• Counter, display window, show room and museum lighting.
• School, hospital, office, meeting room, residential area lighting.
• Bar, restaurant, hotel bedroom, dining room, hall and lobby lighting.
• Other indoor occasions.

1.Raw material 100% check before production.
2.Order must have a first sample and full check before manufacturing process.
3.100% check before aging.
4.24 hours aging with 500 times on off testing.
5.100% final inspection before packing
