| Categories | Pneumatic Tension Coil Stand |
|---|---|
| Brand Name: | Zhutang |
| Model Number: | FXJ-2 |
| Certification: | SGS, main parts with CE |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 sets per year |
| Delivery Time: | 15-20 days |
| Packaging Details: | Seaworthy wooden case packing |
| Height: | 700mm |
| Shaft loading: | 250kg |
| Shaft length: | 500mm |
| Shaft OD.: | 35mm |
| Color: | customized |
| Break: | pneumatic |
| Warranty: | 12 months |
| Weight: | 150kg |

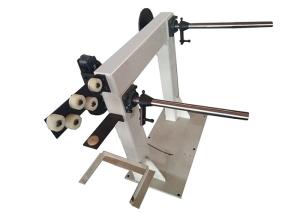

Two Axial Pneumatic Tension Coil Stand For Coil Winding Machine
Description
Two Axial Pneumatic Tension Coil Stand For Coil Winding Machine FXJ-2 is used to place the wire coil and feed wire for coil winding machines, it can provided tension to make the wire tight when winding. This coil stand is provided with pneumatic break, shaft, pulleys and so on. Two reels can be put on this stand at once. This coil stand is suitable for round and flat wire.
Main Components:
1. Main frame
2. Shaft
3. Pneumatic brake
Main Parameters
Typical standard specifications of FXJ-2 are shown below, however this can be easily modified as requested.
| One Spindle Center Height: | 600mm |
| Another Spindle Center Height: | 400mm |
| Max. Shaft Loading: | 200KG |
| Shaft Length: | 500mm |
| Shaft OD: | 35mm |
| Horizontal Distance Between Shafts: | 650mm |
| Weight: | 150KG |
| Dimension(L*W*H): | 900*800*650mm |
|
