Manual Type Radiator Plastic Tank Crimping / Clinching Machine Pneumatic Force

Categories Radiator Plastic Tank Crimping Machine
Place of Origin: Jiangsu, China (Mainland)
Brand Name: WONDERY
Model Number: KYJ-M
Supply Ability: 400 Sets per Year
Packaging Details: wooden case suitable for sea transportation
MOQ: 1 Set
Price: Negotiable
Certification: CE
Delivery Time: 30 Days
machine name: radiator plastic tank crimping machine
control system: Manual
Compaction mechanism: Pneumatic
output: 15 cores one hour
control power: 220V DC power
pneumatic pressure: 0.6Mpa
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

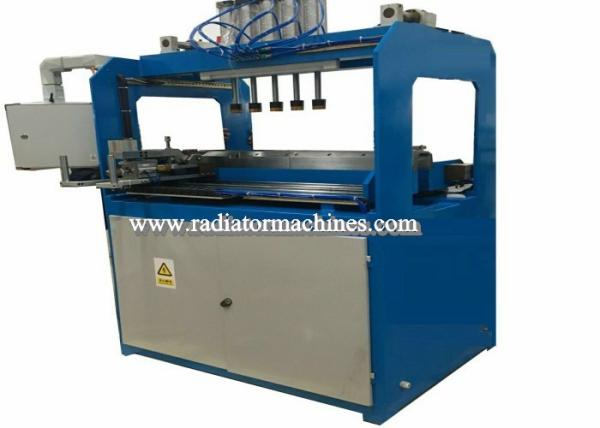

Manual Type Radiator Plastic Tank Crimping / Clinching Machine Pneumatic Force

Manual Type Radiator Plastic Tank Crimping / Clinching Machine Pneumatic Force


Main Application


The radiator plastic tank crimping machine is used for crimping the teeth of the header plates and locking the plastic tank tight to the

core body. There is a sealed space between the crimped plastic tank, sealing gasket and header plate. This manual type plastic tank

crimping machine is used to handle products of various specifications in repair workshops. The manual radiator plastic tank crimping

machine could only crimp the long side header plate. The two ends of the header plates should be crimped manually on a different

machine.


Technical Parameters

Radiator max height: 350-950mm;
Radiator max width: 850mm;
Radiator maximum thickness: 120mm
Step distance: adjustable for every step;
Crimped teeth quantity: max 100 pieces
Overall dimension: 1100×800×1800mm (L*W*H)
Weight: 500kgs

Main Component Origin


Pneumatic cylinders: FESTO brand or SMC brand(except two special cylinders which are not available by FESTO or SMC brand);

Electrical components: SCHNEIDER, Omron, CHINT, etc
