| Categories | RJ45 USB Connector |
|---|---|
| Brand Name: | TM |
| Model Number: | TMRJUSB1EX111 |
| Certification: | UL,Rohs,Reach,ISO9001 |
| Place of Origin: | Guangdong of China |
| MOQ: | 500/1000/2000 pcs |
| Price: | Supportive |
| Payment Terms: | T/T, Western Union, ,Paypal |
| Supply Ability: | 500K/year |
| Delivery Time: | 20 Days |
| Packaging Details: | 50pcs/tray |
| Number of Positions: | 8 |
| Terminals per Port: | 8 |
| LED Option: | YES,L-YELLOW/R-GREEN |
| Shielded EMI Tabs: | No |
| Voltage rating: | 125 V |
| Current rating: | 1.5 A |
| Contact resistance: | 30mΩ |
| Insulation resistance: | 500 MΩ MIN @ 500V DC |
| Dielectric resistance: | 1000V AC RMS 50Hz. 1MIN |
| Durrability: | 750 CYCLES MIN |
| Minimal Order: | 500pcs |
| Package: | 50pcs/tray |
| Company Info. |
| Dongguan Tianmu Electronics Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

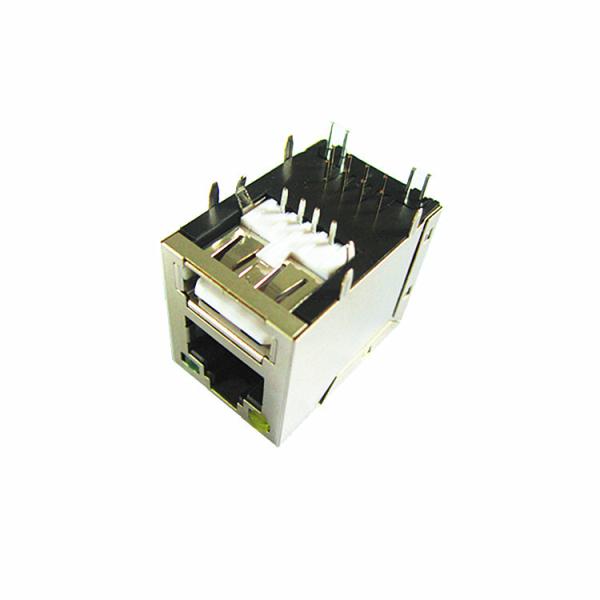

RJ45 With Single USB 2.0 Modular Jack Shield With Leds TMRJUSB1EX111
Product Structure:
RJ45 Jack
Latch Up
Connector Length: 27.50 mm
Connector Width: 18.7 mm
Connector Height: 22.50 mm
Termimal Solder Pin Length: 2.7 mm
8P8C ( 8 positions 8 contacts )
90°Orientation
With LED L-YELLOW,R-GREEN, let know the connection status
With Shield,can be customized as required
We Support Custom service as required
RJ45 Without Transformer (TMRJUSB1EX111) Attributes:
| Model: | TMRJUSB1EX111 |
| Place of Origin: | Guangdong of China |
| Certification: | UL,Rohs,Reach,ISO9001 |
| Product Type : | RJ45 USB Connector |
| Jack Type: | RJ45 USB |
| Number of Positions : | 8 |
| Terminals per Port: | 8 |
| LED Option: | YES,L-YELLOW/R-GREEN |
| Shielded EMI Tabs: | No |
| Voltage rating: | 125 V |
| Current rating: | 1.5 A |
| Contact resistance: | 30mΩ |
| Insulation resistance: | 500 MΩ MIN @ 500V DC |
| Dielectric resistance: | 1000V AC RMS 50Hz. 1MIN |
| Durrability: | 750 CYCLES MIN |
| Minimal Order: | 1pcs |
| Delivery Time: | 20 Days |
| Supply Ability: | 5KK/year |
RJ45 Female Connector (TMRJUSB1EX111) Mechnical Drawing:

|
