| Categories | Common Mode Choke |
|---|---|
| Brand Name: | Shareway |
| Model Number: | HM42-40002LF |
| Certification: | RoHS,ISO9001-2001 |
| Place of Origin: | Guangdong,shenzhen |
| MOQ: | 500/1000 |
| Price: | Supportive |
| Payment Terms: | TT,Paypal,West Union |
| Supply Ability: | 1kk-pcs/month |
| Delivery Time: | Stock Or 3 weeks |
| Packaging Details: | Reel/Tray |
| Product name: | Power Gate Driver Transformer HM42-40002LF For Laptop Power Supply |
| Usage: | Laptop Power Supply |
| Turns Ratio: | 1:1 |
| Inductance: | 1400uH |
| Leakage Inductance: | 0.50 uH |
| DCR: | 0.60Ω |
| Company Info. |
| SHAREWAY TECHNOLOGY CO., LTD. |
| Verified Supplier |
| View Contact Details |
| Product List |

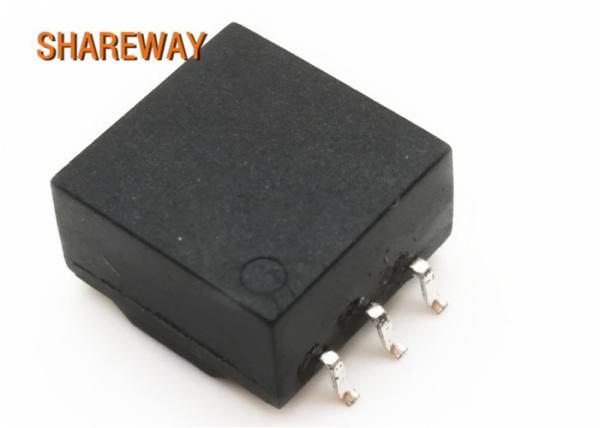

Power Gate Driver Transformer HM42-40002LF For Laptop Power Supply
Specifications @ 25°C:
Part Number | Turns Ratio | Primary Inductance (μH Min) | Leakage Inductance (μH Max) | Primary DCR (W Max) | Secondary DCR (W Max) | Pri-Sec Insulation |
| HM42-10001LF | 1:1:1 | 300 | 2.30 | 2.00 | 2.00 | 1500Vdc |
| HM42-10002LF | 2:1:1 | 300 | 2.30 | 2.00 | 1.00 | 1500Vdc |
| HM42-20001LF | 1:1 | 695 | 0.50 | 1.00 | 1.00 | 1500Vdc |
| HM42-20002LF | 1:1 | 785 | 0.46 | 0.60 | 0.60 | 1500Vdc |
| HM42-30001LF | 1:1:1 | 980 | 0.75 | 0.50 | 0.50 | 1500Vdc |
| HM42-30002LF | 1:1 | 980 | 0.75 | 0.50 | 0.50 | 1500Vdc |
| HM42-30003LF | 1:1:1 | 1500 | 0.50 | 0.62 | 0.62 | 1500Vdc |
| HM42-40001LF | 1:1:1 | 3300 | 0.70 | 1.60 | 1.60 | 1500Vdc |
| HM42-40002LF | 1:1 | 1400 | 0.50 | 0.60 | 0.60 | 1500Vdc |
| HM42-40003LF | 1:1 | 1200 | 0.50 | 0.50 | 0.50 | 1500Vdc |
| HM42-40004LF | 2:1:1 | 1200 | 0.60 | 0.60 | 0.30 | 1500Vdc |
Dimension:
|
