Nylon Reinforcement Surge Anticipating Valve With Anti Water Hammer Function

Categories Surge Anticipating Valve
Brand Name: AFC,OEM
Model Number: A2A5
Certification: ISO 9001
Place of Origin: China
MOQ: 1
Price: USD RMB
Payment Terms: L/C, T/T
Supply Ability: Based on order
Delivery Time: 15-60 days
Packaging Details: Plywood cases
Material: Ductile iron GJS500-7
Pilot Material: SS304
standard: EN1074-5
Color: Blue
Diaphragm: Nylon Reinforcement with EPDM
Rubber: EPDM
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

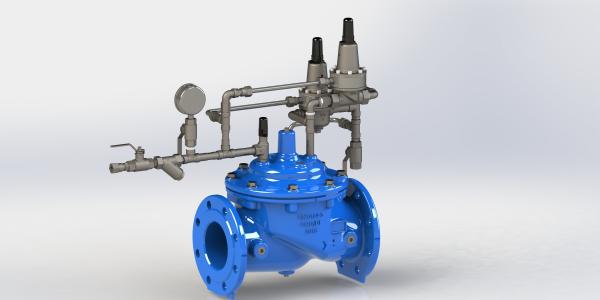

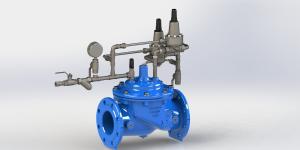

Nylon Reinforcement Surge Anticipating Valve With Anti Water Hammer Function


Stainless Steel Pilots Ductile Iron Surge anticipating Valve Nylon Reinforcement Diaphragm Anti Water Hammer​


A2A5 is a surge anticipation valve and adjusted to eliminate hazardous pressure surges typical of water hammer conditions. A water hammer is caused by a sudden shutoff of a pump or rapid closure of a main valve, causing a fast propagation of low-pressure front, followed by an extremely high-pressure back-wave. A series of pressure waves, each one composed of alternating low and high pressure is created within a few seconds. A2A5 is a piloted hydraulic valve activated by line pressure. The valve has two pilots, for high and low pressure. Normally the A2A5 is closed. It opens when the line pressure drops below a preset pressure, in anticipation to the following surge, and remains open until the fluctuations
subside.


Service Fields:
For water system, irrigation system.


Technical Data:


SizeDN50-DN800
Working Temperature- 10C- 80C
FlangeAISI B16.1 Or PN16
Flow MediaClean Water

Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1


Materials And Dimension


DN50-DN350

No.Part NameMaterialStandard
1BodyDuctile IronGJS500-7
2SeatStainless SteelAISI304/316
3O-ringRubberNBR
4O-ringRubberNBR
5BoltStainless SteelA2/A4
6WasherStainless SteelA2/A4
7BonnetDuctile IronGJS500-7
8BushBronzeC61900
9SpringStainless SteelAISI304/316
10Caulking NutStainless SteelA4
11DiaphragmNylon Reinforced rubberEPDM+Nylon Fabric
12Fixing holderDuctile IronGJS500-7
13Disc HolderDuctile IronGJS500-7
14SealRubberEPDM
15Seat RetainerStainless SteelAISI304/316
16StemStainless SteelAISI304/316
17PlugStainless SteelAISI304/316
18ScrewStainless SteelA2/A4
19PlugStainless SteelA2/A4
20WasherStainless SteelA2/A4


DN400-DN800
