| Categories | Flexographic Box Printing Machine |
|---|---|
| Certification: | ISO9001 |
| Place of Origin: | Hebei, China (Mainland) |
| Brand Name: | shengli |
| Model Number: | QYMW 1270 |
| Plate Type: | Letterpress |
| Color & Page: | Multicolor |
| Gross Power: | 85kw |
| Usage: | Card Printer, Label Printer, Paper Printer |
| Type: | Flexographic Printer |
| Condition: | New |
| Automatic Grade: | Automatic |
| Voltage: | 380V |
| Dimensions(L*W*H): | L9600*W3500*H2800mm |
| Weight: | 25 tons |

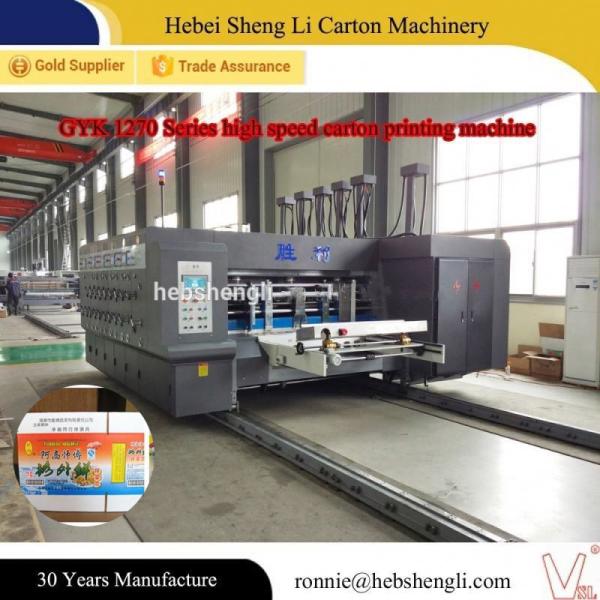

| Name: | automatic kraft paper box printing machine |
| feeding mode: | vaccum transfer feeder |
| Printing speed: | 180pcs/min |
| Printing color: | 2/4/6/8 Color |
| Printing Length: | 400-2800mm |
| Printing material: | Paper.carton |
| Printing Width: | 320mm |
| Doctor blade: | USA sun brand |
| mesh roller: | ceramic roller |
| plc: | simens |
| After-sales Service Provided: | Engineers available to service machinery overseas |
* Vaccum transfer lead egde feeder
* USA sun doctor blade & ceramic mesh roller
* UV & bright oil coating
* UV & infrared dying
* Imported electrical appliances
* Plc control
* NSK Bearing
* 20CrMnTi Gears
| 1270×2200 | 1270×2500 | 1270×2800 | ||
| width of inside machine | mm | 2400 | 2700 | 3000 |
| Design speed | pcs/min | 180 | 180 | 180 |
| Max. feeding size | mm | 1200×2200 | 1200×2500 | 1200×2800 |
| Max. printing size | mm | 1150×1850 | 1150×2150 | 1150×2450 |
| Min. printing size | mm | 400×700 | 400×700 | 400×700 |
| Precision of mahcine | mm | ±0.5 | ±0.5 | ±0.5 |
|
