| Categories | Universal Laptop Power Adapter |
|---|---|
| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | YHY |
| Model Number: | YHY-16003500 |
| Supply Ability: | 450,000 PCS/month |
| Packaging Details: | Brown box+ carton |
| MOQ: | 100 |
| Price: | Negotiable |
| Certification: | UL/cUL/FCC/GS/CE/EMC/PSE/3C/MEPS/BSMI/RCM/KC CEC/Energy Star/Doe vi/CP65 |
| Payment Terms: | T/T, Western Union,Paypal |
| Delivery Time: | 12-14 workdays after receipt of your oder |

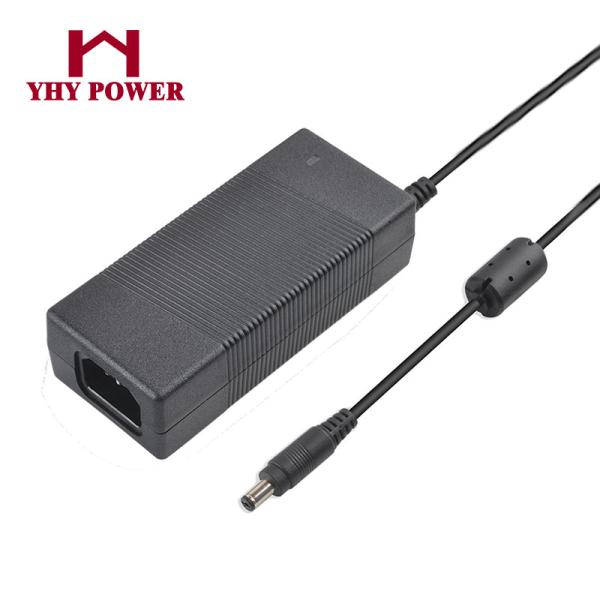

| Product Name: | 16v 3.5a electrical outlet car adapter |
| Input: | AC 100-240v 50-60hz |
| Output voltage: | 16V |
| AC inlet: | C6 C8 C14 (optional) |
| DC connector: | Male OD5.5mm*ID2.1mm*L10mm |
| DC cabel length: | 1200mm |
| Certificate: | CE ROHS UL CUL GS FCC KC SAA |
| Warranty: | 3 years |
| EMC&LVD: | YES |
| Port: | SHENZHEN |
| Specifications | ||
| Input Voltage Range | VAC | 100-240Vac 50/60Hz |
| Inrush Current at 110VAC, 25℃ | A | |
| Input Current(Max) | A | 2.5A(100VAC Input) |
| Power Factor | - | Meets EN61000-3-2 |
| Leakage Current(220VAC 60Hz) | mA | |
| Hold Up Time at 110VAC input, full load | ms | |
| Temperature Coefficient | ℃ | ±0.05%/℃ |
| Voltage Accuracy | % | ±2% |
| Adjustment Range | - | None |
| Min. Load | A | None |
| Total Regulation | - | ±5% |
| Ripple & Noise | mV | 120mV |
| Short Circuit Protection | % | Continuous - hiccup mode |
| Over Voltage Protection | ℃ | 110-150% of nominal (Cycle input power to reset) |
| Efficiency at Average Load | - | 88% min |
| Operation Temperature | - | 0 to +60℃, derating linearly to 50% load above 40℃ |
| Storage Temperature | - | -10 to +85℃ |
| Humidity (non condensing) | - | 10-90% RH |
| Cooling | - | Convection |
| Withstand Voltage | - | Input to Ground 1.5kVAC, Input to Output 3kVAC (Output is connected to Ground) |
| Vibration (non condensing) | - | 23.52m/s2 (10 - 55Hz: constant sweep 1 min X, Y, Z for 1 hour) |
| Shock | - | < 196.1 m/s2 (20G) |
| Safety Agency Certifications | - | UL60950-1, EN609501-1, IEC60950-1, CE Mark |
| DOE Regulation | - | VI |
| Off-Load Power Consumption | mW | <210mV |
| Conducted & Radiated EMI | - | EN55023-B, FCC Class B |
| Immunity | - | EN55024 |
| Weight | G | 280g |
| Size(WxLxH) | mm | 115x50x30mm |
| Cable Length and Thickness | mm | 1200mm |
| AC Input Connector | - | IEC 320-C8 |
| Output Connector | mm | 5.5x2.1mm (Accept more request) |
| MTBF 100%, 25℃ | Hours | 50,000 hours |
| Warranty | Years | 2 years |
|
