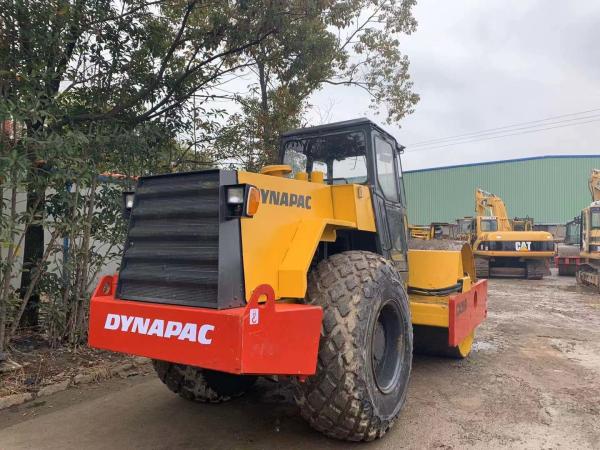

Cummins Engine Dynapac Road Roller , Second Hand Road Roller Machine
Dynapac Road Roller Introduction
The road roller is a small road construction machine, which is mainly used for compacting loose granular soil, gravel, gravel, asphalt and the like. The main working environment is: compaction work such as wall edge, roadbed and pipeline laying.
Dynapac Road Roller Specification
| Engine | ||
| MAKE | Cummins | |
| MODEL | 4A BT3.9-C | |
| GROSS POWER | 110 hp | 82 kw |
| POWER MEASURED @ | 2200 rpm | |
| ASPIRATION | water cooled turbo diesel with after cooler | |
| Operational | ||
| OPERATING WEIGHT | 27668 lb | 12550 kg |
| FUEL CAPACITY | 66 gal | 250 L |
| MAX SPEED | 3.1 mph | 5 km/h |
| TIRES *IF APPLICABLE | 23.1x26 | |
| Drum | ||
| DRUM WIDTH | 83.9 in | 2130 mm |
| DRUM DIAMETER | 60.7 in | 1543 mm |
| STATIC LINEAR LOAD | lb/in | 38 kg/cm |
| VIBRATION FREQUENCY 1 | 33 Hz | |
| NOMINAL AMPLITUDE - HIGH | 0.07 in | 1.7 mm |
| NOMINAL AMPLITUDE - LOW | 0.03 in | 0.8 mm |
| CENTRIFUGAL FORCE - HIGH | 67442.7 lb | 300 kN |
| CENTRIFUGAL FORCE - LOW | 32822.1 lb | 146 kN |
| Dimensions | ||
| OVERALL LENGTH | 18.2 ft in | 5550 mm |
| OVERALL WIDTH | 7 ft in | 2130 mm |
| HEIGHT TO TOP OF CAB | 9.8 ft in | 2972 mm |
| WHEELbase | 9.4 ft in | 2879 mm |
| GROUND CLEARANCE | 15.7 in | 400 mm |
Dynapac Road Roller Details
BEST SERVICES
1. Installation, operators training.
2. Maintenance: · We will send you the operation manual which can help you operate the machines properly, it can also help you to solve the common problems; · Call us at any time if you have problems about our product; If needed, we will send engineers to your site to solve your problems.
|
