| Categories | Plastic Sheet Extrusion Line |
|---|---|
| Brand Name: | Xinkeda |
| Model Number: | Sjz92/188 |
| Certification: | ISO CE SGS GOST |
| Place of Origin: | Qingdao of China |
| MOQ: | 1set |
| Price: | FOB US $60,000-85,000/ Set |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50set/year |
| Delivery Time: | 60-80days |
| Packaging Details: | Wooden Cases and Wooden Pallet |
| Central Height: | 1050mm |
| Production Scope: | Product Line |
| Output: | 330kg/H |
| Driving Motor Power: | 110kw |
| Extruder Dimension(m): | 5*1.54*2.28 |
| HS Code: | 8477209000 |
SJZ92/188 PVC/PE WPC (Foam) Profile Extrusion Line
High output
Easy operation
Low energy consumption
PVC/PE Profile Extrusion Line mainly used for extrusion production
of PVC/PE /WPC window&door profile andother decoration
profiles.
PVC/PE Profile Extrusion Line can be combined with different types
of extruders and accessory machineries according to the size of
products. Adopted ceramic heaters, high-quality thermocontrollers,
air-cooling blowers, inverter speed adjusting or DC speed

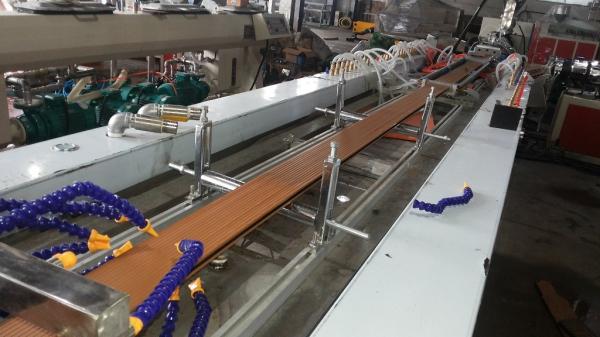

adjusting, and screw core cooling. For calibrating table adopted
special cooling system, which can guarantee the high cooling
effective. For haul-off machine adopted special lifting technology,
which works stably with big haul-off force. Cutting machine works
together with extrusion line synchronously, installed with
length-setting unit, which can guarantee trim and high-speed
cutting, uniform length of cutting.
Name of equipments | Spec./Model | YF210 | YF240 | YF500 | YF800 |
Extruder | Extruder model | LSZ51/105 | LSZ65/132 | LSZ80/156 | LSZ92/188 |
Dimension(m) | 3.3*1.45*2.1 | 3.45*1.45*2.25 | 5*1.54*2.28 | 6.2*1.55*2.7 | |
Capacity(kg/h) | 50-150 | 80-250 | 100-350 | 200-600 | |
Installed paower(KW) | 25 | 64 | 115 | 168 | |
Sizing table | Dimension(m) | 4.2*1*1.1 | 5.8*1.*1.1 | 6.5*1.5*1.1 | 6.5*1.5*1.1 |
Installed paower(KW) | 18 | 24 | 30 | 43 | |
Hauling and cutting machine | Dimension(m) | 5.8*1.1*1.7 | 5.8*1.1*1.7 | 3.1*1.3*1.7 2.2*1.45*1.8 | 3.55*1.85*1.6 2.5*1.8*1.6 |
Hauling speed (m/min) | 0-4 | 0-4 | 0-3 | 0-2 | |
Hauling force (N) | 30000 | 30000 | 35000 | 50000 | |
Max cutting area and width (mm) | 240*65 | 240*65 | 500*80 | 800*80 | |
Installed power (KW) | 6 | 6 | 8 | 8 | |
Stacker | Stacking length(mm) | 6 | 6 | 6 | 6 |
