| Categories | Audio And Video Cable |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Model Number: | Circular Speaker Cable |
| Certification: | CE, RoHS, VDE, UL, CUL, LPCB |
| Place of Origin: | China |
| MOQ: | 20 KM |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Delivery Time: | 25 working days |
| Packaging Details: | 100M, 200M, Roll, Carton |
| Conductor: | 99.999% Oxygen Free Bare Copper |
| Number of Strands: | 41/0.2mm |
| Insulation: | Low Smoke Halogen Free (LSHF) |
| Number of Cores: | 2 |
| Sheath: | Low Smoke Halogen Free (LSHF) |
| Colour: | Violet |
| Core Identification: | Red, Black |
| Company Info. |
| HANGZHOU ZION COMMUNICATION CO., LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

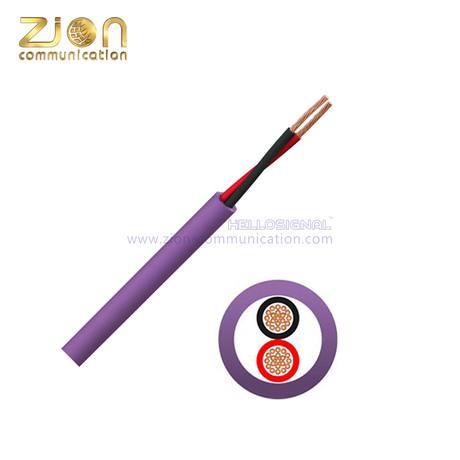

| Circular Speaker Cable (CSC162-LSHF) | |||||||||||||||||||||||||
 | |||||||||||||||||||||||||
| Application: | |||||||||||||||||||||||||
| Deliver good levels of performance in most multi-room and home cinema installations. | |||||||||||||||||||||||||
| Product Description: | |||||||||||||||||||||||||
| Conductor Material | 99.999% Oxygen Free Bare Copper | ||||||||||||||||||||||||
| Number of Strands | 41/0.2mm | ||||||||||||||||||||||||
| Insulation Material | Low Smoke Halogen Free (LSHF) | ||||||||||||||||||||||||
| Number of Cores | 2 | ||||||||||||||||||||||||
| Sheath Material | Low Smoke Halogen Free (LSHF) | ||||||||||||||||||||||||
| Sheath Colour | Violet | ||||||||||||||||||||||||
| Core Identification | Red, Black | ||||||||||||||||||||||||
| Electrical Characteristics: | |||||||||||||||||||||||||
| Nominal Conductor Resistance | < 13.7 Ω/km | ||||||||||||||||||||||||
| Insulation Resistance | > 200 MΩ.M | ||||||||||||||||||||||||
| Voltage Rating | 450/750V | ||||||||||||||||||||||||
| Test Voltage | 2.5kV for 5 Minutes | ||||||||||||||||||||||||
| Physical Characteristics: | |||||||||||||||||||||||||
| Overall Diameter | 6.1 ± 0.2mm | ||||||||||||||||||||||||
| Min. Bend Radius | 15 x OD | ||||||||||||||||||||||||
| Temperature Rating | -20°C to +70°C | ||||||||||||||||||||||||
| Standards: | |||||||||||||||||||||||||
| Flame Retardant | BS EN 60332-1-2 | ||||||||||||||||||||||||
| Low Smoke Generation | BS EN 61034-2 | ||||||||||||||||||||||||
| Halogen Gas Emission | BS EN 60754-1&2 | ||||||||||||||||||||||||
| RoHS3 Compliant | Yes | ||||||||||||||||||||||||
| CE Compliant | LVD (2014/35/EU), CPR (305/2011) | ||||||||||||||||||||||||
| CPR Classification | Eca (EN50575:2014+A1:2016) | ||||||||||||||||||||||||
|
