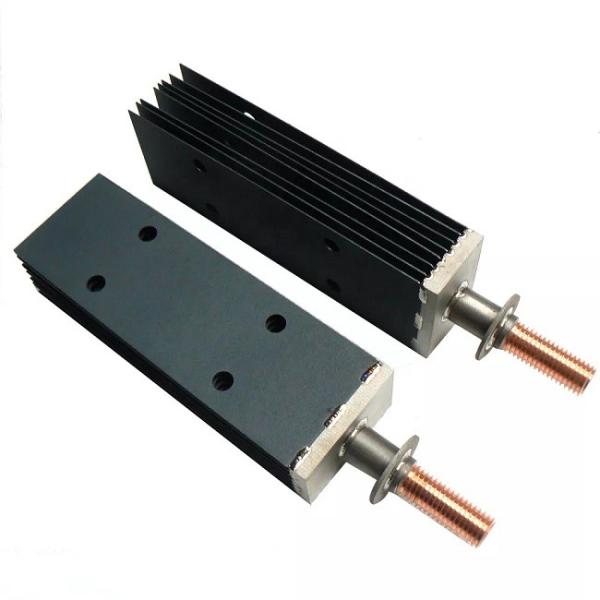

Titanium Electrode Plate Gr1 Gr2 20g For Swimming Pool Disinfection Anode

Categories	Titanium Electrode
Brand Name:	CSTI
Model Number:	sodium hypochlorite generator titanium anode
Certification:	ISO9001
Place of Origin:	China
MOQ:	1 Piece
Price:	$30.00 - $100.00/ Piece
Payment Terms:	T/T, L/C
Supply Ability:	500 Piece/Pieces per Month
Delivery Time:	10~15 work days
Packaging Details:	1. Packing with moisture-proof paper; 2. Packing with foam plastics in all sides; 3. Packing products in standard wooden cases.
Substrate:	Gr1 Titanium as substrate
Coating:	Mixed Ruthenium-Iridium oxide coating
Application:	swimming pool disinfection
Coating Content:	5~20g
Technology:	Sand blasting, Acid washing and Brush Coating
Electrolyte:	Salt water / Saline solution/ Brine/ Sea water
Dimension:	Custom-made sizes available

Contact Now

Add to Cart

Company Info.

Baoji City Changsheng Titanium Co.,Ltd

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Titanium Electrode Plate Gr1 Gr2 20g For Swimming Pool Disinfection Anode

Electrolytic salt disinfection of swimming pool water is one of the most healthy, the most economical, the most reliable, the most ecological, the most effective way of disinfection of swimming pool water - electrolytic salt disinfection.
Practice has proved that it has achieved the ideal effect of disinfection of swimming pool in Europe, America, Australia and other advanced countries.
It is a new disinfection concept for swimming pools. Put salt into a swimming pool, 4,000 to 6,000 ppm, which is one cubic meter of pool water
Put in 4 to 6 kilograms of salt. After circulating filtration system, pool water passes through electrolytic salt disinfection equipment to generate pure active chlorine and atomic oxygen online
The effect of pure chlorine and ozone disinfection. Chlorine compounds are produced during oxidation and disinfection, especially odorous and carcinogenic byproducts such as organochlorine, which have
After circulating the filtration system and passing through the electrolytic salt disinfection equipment, the harmful substances are electrolyzed into effective chlorine and atomic oxygen, thus degrading the combined organochlorine.
In middle school chemistry, there is the experiment of electrolyzing salt water, the result is: the positive electrode electrolysis produces chloride ion CI-, the negative electrode electrolysis produces a small amount of oxygen ion
O plus. The method of electrolytic salt is applied to the water treatment project of swimming pool, so as to realize the effect of active pure chlorine and ozone disinfection.

Product name	titanium anode plate for swimming pool disinfection
Substrate	GR1 GR2
Size	Customized
Features	With higher electrical conductivity; High chlorine evolution potential ; Stronger Oxidation ability; Higher Anti-corrosion ; Longer lifetime: 8000-15000 Hours Higher efficiency;
Coating type	Ruthenium-Iridium titanium anode Ruthenium-Iridium-stannum titanium anode Iridium-Tantalum titanium anode Ruthenium-titanium anode Platinum titanium anode Ru-Ir-PT Titanium anode Lead dioxide titanium anode
Manufacturing processes	1) Pretreatment: choosing right material, cutting ,welding accordingly , annealing ,cleansing ,acid etching 2) Preparing noble metal: be made up in proportion of mol according to customer's application 3) Brush painting :coated by 18 to 20 times 4) thermal decomposition of oxidation
MOQ	1PC
Sample size	1.0100100mm at stock

1. Substrate Metal Chemical Composition:

Grade	N	C	H	Fe	O	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	bal

Substrate Metal Mechanical Properties:

Grade	Tensile strength(min)		Yield strength(min)		Elongation (%)
Grade	ksi	MPa	ksi	MPa	Elongation (%)
Gr1	35	240	25	170	24

2. MMO Coating: Mixed Ruthenium-Iridium Oxide

Coating	Oxygen revolution potential	Suitable working environment
Mixed Ruthenium and Iridium	<1.13V	Solution contains Cl-, PH>=7

Coating Contents and Life Span:

8grams/m2	10grams/m2	12grams/m2	15grams/m2	20grams/m2
6,000 hours	8,000 hours	10,000 hours	12,000 hours	13,500 hours

3. Working Parameters for Ru-Ir Coating:

Current density	Temperature	Chlorine concentration	Polarity reversal	Reversal frequency
<500A/m2	40-60°C	About 30grams/liter	suitable	2-4 hours

The overall response is expressed as follows:
NaCl + H2O → NaClO + H2↑
Electrode reaction:
anode: 2Cl--2e → Cl2
Cathode: 2H+ + 2e → H2
Solution reaction: 2NaOH + Cl2 → NaCl + NaClO + H2O

Application:

The invention of the titanium anode for swimming pool disinfection and its application in the sodium hypochlorite generator is undoubtedly an important breakthrough for the use of on-site sodium hypochlorite production technology for drinking water treatment and disinfection of private and public swimming pools. Use the titanium anode for swimming pool disinfection to produce sodium hypochlorite on-site and compare it with chlorine or a large amount of sodium hypochlorite, which is not only safe but also environmentally friendly. The use of titanium anodes to produce sodium hypochlorite can avoid the use of corrosive and dangerous chemicals, such as hydrochloric acid.

The reaction principle of preparing sodium hypochlorite by the electrode is to electrolyze sodium chloride dissolved in water. During the electrolysis process, sodium hypochlorite is formed. The most suitable salt concentration is 3-5 g/L. If you need to increase the utilization rate of salt, you can use a diaphragm, which is usually used in large equipment and swimming pools.

More Titanium Anode/Electrodes:

Our company :

Our company is one of the leading manufacturers of titanium electrodes, coated titanium anodes and waste water treatment solution in China. It has a professional technical team and skilled workers with decades of experience in titanium electrodes and electrochemistry fields. It can offer you customize high quality titanium electrodes and perfect solutions.

Common problems of electrolytic salt disinfection equipment for swimming pool:
1.the type of salt: can not use mineral salt, can use salt, softened water salt grain, sun salt block, water treatment with salt and sea water.
2.Salt placement: Powder salt dissolves easily in pool water. Granular, blocky salt is best placed near the bottom discharge, the pool water in the bottom discharge cycle, the melt Salt is dispersed in water.
3.The dosage of salt The dosage of salt is 4000-6000ppm. The amount of salt in the new pool is zero. Every 4 to 6 kilograms added to 1 cubic meter of water is approximately 4000-6000ppm.
4.What happens when you add too much salt? Excessive salt will not affect the work, only feel salt. Excess salt (over 6000ppm) will corrode other devices.Prepare, even corrosion stainless steel. Some equipment has strict requirements and control on salt content, and must be put in accordance with the specification.
5.the number of salt adding the first salt, only the pool water leakage, rain washed away, backwashing, swimmers away and other situations, will make the salt loss.
6.titanium electrode plate life: in the design of the system and plate material. The system with automatic polarity reversal of the plate has a long life of the electrode plate, titanium electrode plate have long life.

Tag: Titanium Electrode Plate,sodium hypochlorite generator titanium anode, swimming pool disinfection,Titanium Anode
