| Categories | Silicon Steel Sheet |
|---|---|
| Brand Name: | CENTERSKY |
| Model Number: | EI 35, EI 41, EI 180, EI 192, EI 240, EI 270, EI 300 |
| Certification: | ISO, ROHS, |
| Place of Origin: | Jiangyin, Jiangsu, China |
| MOQ: | 3000 KGS |
| Price: | USD 1000 KG ---USD 1600 KG |
| Payment Terms: | L/C, T/T, D/P |
| Supply Ability: | 1500 MT PER MONTH |
| Delivery Time: | 8-20 DAYS |
| Packaging Details: | Standard Packing, loading into container |
| Material: | CRNGO Silicon Steel |
| Thickness: | 0.5mm thickness, also 0.35mm thickness |
| Product Name: | Mono Phase Silicon Steel EI Lamination Transformer Silicon Steel Sheet |
| Key Word: | Silicon Steel Sheet |
| Packaging: | 1000kg One Pallet |
| Sizes: | Three Phase EI 200, EI 250, EI 300, EI 350, EI 500, EI 600 |
| Surface Treatment: | T4 Coating |
| Capacity: | 15000 mt per year |
| Company History: | Established in 2000 |
| Equipments: | High Speed Punching Machines, Manual Punching Machines |
| Grade Material: | 50WW800, 50WW470, 35WW440, 35WW300 |
| Annealled: | Yes |
Silicon steel, also known as silicon steel Sheet or Electrical Steel, it is a ferrosilicon soft magnetic alloy steel with very low carbon content, usually containing 0.5% to 4.5% silicon. The addition of silicon can increase the resistivity and maximum permeability of iron to reduce the coercivity, iron loss and magnetic aging.
Introduction:

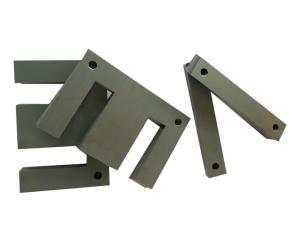

Single phase EI core is made by the silicon steel strip. The model of EI lamination in standard sizes is from
EI-30 to EI-360.The gap sizes of transformer lamination core can be customized.
| Type | a | b | c | d | e | holes | aperture |
| EI- 28 | 28 | 4 | 6 | 8 | 17 | ||
| EI-35 | 35 | 5 | 7.5 | 10 | 19.5 | ||
| EI-41 | 41 | 6 | 8 | 13 | 21 | ||
| EI-42 | 42 | 7 | 7 | 7 | 14 | ||
| EI-48 | 48 | 8 | 8 | 16 | 24 | ||
| EI-50 | 50 | 8 | 9 | 16 | 25.5 | ||
| EI-57 | 57 | 9.5 | 9.5 | 19 | 28.5 | 4 | 4 |
| EI-60 | 60 | 10 | 10 | 20 | 30 | 4 | 5 |
| EI-66 | 66 | 11 | 11 | 22 | 33 | 4 | 4 |
| EI-75 | 75 | 12.5 | 12.5 | 25 | 37.5 | 4 | 5.5 |
| EI-76.2 | 76.2 | 12.7 | 12.7 | 25.4 | 38.1 | 4 | 5 |
| EI-78 | 78 | 13 | 13 | 26 | 39 | 4 | 5 |
| EI-84 | 84 | 14 | 14 | 28 | 41 | 4 | 6 |
| EI-85.8 | 85.8 | 14.3 | 14.3 | 28.6 | 42.9 | 4 | 5 |
| EI-96 | 96 | 16 | 16 | 32 | 48 | 4 | 6 |
| EI-105 | 105 | 17.5 | 17.5 | 35 | 52.5 | 4 | 6 |
| EI-108 | 108 | 18 | 18 | 36 | 54 | 4 | 5.5 |
| EI-114 | 114 | 19 | 19 | 38 | 57 | 4 | 6 |
| EI-120 | 120 | 20 | 20 | 40 | 60 | 4 | 7 |
| EI-126 | 126 | 21 | 21 | 42 | 63 | 4 | 7 |
| EI-133.2 | 133.2 | 22.2 | 22.2 | 44.4 | 66.6 | 4 | 7 |
| EI-150 | 150 | 25 | 25 | 50 | 75 | 4 | 8 |
| EI-152.4 | 152.4 | 25.4 | 25.4 | 50.8 | 76.2 | 4 | 8 |
| EI-162 | 162 | 27 | 27 | 54 | 81 | 4 | 10 |
| EI-168 | 168 | 28 | 28 | 50 | 84 | 4 | 10 |
| EI-171 | 171 | 28.5 | 28.5 | 57 | 85.5 | 4 | 10 |
| EI-180 | 180 | 30 | 30 | 60 | 90 | 4 | 10 |
| EI-190.5 | 190.5 | 31.75 | 31.75 | 63.5 | 95.25 | 4 | 10 |
| EI-192 | 192 | 32 | 32 | 64 | 96 | 4 | 10 |
| EI-210 | 210 | 35 | 35 | 70 | 105 | 4 | 10 |
| EI-228 | 228 | 38 | 38 | 76 | 114 | 4 | 10 |
| EI-240 | 240 | 40 | 40 | 80 | 120 | 4 | 10 |
| EI-254 | 254 | 48 | 55 | 48 | 164 | 4 | 12 |
| EI-270 | 270 | 45 | 45 | 90 | 135 | 4 | 12 |
| EI-228 | 228 | 38 | 38 | 76 | 114 | 4 | 10 |
| EI-300 | 300 | 50 | 50 | 100 | 150 | 4 | 12 |
| EI-360 | 360 | 60 | 60 | 120 | 180 | 4 | 12 |
| Type | a | b | c | d | e | holes | aperture(Φ) |
| UI-20 | 60 | 20 | 20 | 60 | 4 | 6 | |
| UI-22 | 66 | 22 | 22 | 66 | 4 | 6,8 | |
| UI-25 | 75 | 25 | 25 | 75 | 4 | 6,8 | |
| UI-27 | 81 | 27 | 27 | 81 | 4 | 6,8 | |
| UI-28 | 84 | 28 | 28 | 84 | 4 | 8 | |
| UI-30 | 90 | 30 | 30 | 90 | 4 | 8 | |
| UI-32 | 96 | 32 | 32 | 96 | 4 | 8 | |
| UI-35 | 105 | 35 | 35 | 105 | 4 | 8 | |
| UI-38 | 114 | 38 | 38 | 114 | 4 | 8 | |
| UI-40 | 120 | 40 | 40 | 120 | 4 | 10 | |
| UI-44 | 132 | 44 | 44 | 132 | 4 | 8,10 | |
| UI-45 | 135 | 45 | 45 | 135 | 4 | 10 | |
| UI-50 | 150 | 50 | 50 | 150 | 4 | 8,10 | |
| UI-60 | 180 | 60 | 60 | 180 | 4 | 10,12 | |
| UI-70 | 210 | 70 | 70 | 210 | 4 | 13 | |
| UI-80 | 240 | 80 | 80 | 240 | 4 | 14 | |
| UI-90 | 270 | 90 | 90 | 270 | 4 | 14 | |
| UI-100 | 300 | 100 | 100 | 300 | 4 | 16 |
| Type | a | b | c | d | e | Holes | Aperture(Φ) |
| 3PEI-17.5 | 87.5 | 17.5 | 17.5 | 17.5 | 52.5 | 4 | 6 |
| 3PEI-20 | 100 | 20 | 20 | 20 | 50 | 6 | 6 |
| 3PEI-20* | 100 | 20 | 20 | 20 | 60 | 4,6 | 6 |
| 3PEI-22 | 110 | 22 | 22 | 22 | 66 | 4 | 8 |
| 3PEI-22.2 | 122 | 22 | 28 | 22.2 | 61 | 4 | 6 |
| 3PEI-25 | 125 | 25 | 25 | 25 | 75 | 4 | 8 |
| 3PEI-27 | 135 | 27 | 27 | 27 | 81 | 4 | 8 |
| 3PEI-28 | 140 | 28 | 28 | 28 | 84 | 4 | 8 |
| 3PEI-29 | 145 | 29 | 29 | 29 | 72.5 | 4 | 8 |
| 3PEI-30 | 150 | 30 | 30 | 30 | 90 | 6 | 7 |
| 3PEI-30.5 | 152 | 30.5 | 30.5 | 30.5 | 76.25 | 6 | 6 |
| 3PEI-32 | 160 | 32 | 32 | 32 | 80 | 4 | 8 |
| 3PEI-32* | 160 | 32 | 32 | 32 | 96 | 4 | 8 |
| 3PEI-35 | 175 | 35 | 35 | 35 | 105 | 4 | 8 |
| 3PEI-36 | 180 | 36 | 36 | 36 | 90 | 6 | 8 |
| 3PEI-38 | 190 | 38 | 38 | 38 | 95 | 4,6 | 8,10.5 |
| 3PEI-38* | 190 | 38 | 38 | 38 | 114 | 6 | 8 |
| 3PEI-40 | 200 | 40 | 40 | 40 | 100 | 4 | 10.5 |
| 3PEI-40* | 200 | 40 | 40 | 40 | 120 | 4,6 | 10 |
| 3PEI-44 | 220 | 44 | 44 | 44 | 132 | 6 | 8,10.5,12.5 |
| 3PEI-45 | 225 | 45 | 45 | 45 | 135 | 4 | 10 |
| 3PEI-50 | 250 | 50 | 50 | 50 | 150 | 4,6 | 8,10.5 |
| 3PEI-56 | 280 | 56 | 56 | 56 | 168 | 4 | 12 |
| 3PEI-60 | 300 | 60 | 60 | 60 | 180 | 6 | 12 |
| 3PEI-61* | 288 | 61.3 | 52 | 61.3 | 144 | 4,6 | 12 |
| 3PEI-61 | 305 | 61 | 61 | 61 | 152.5 | 4,6 | 14 |
| 3PEI-70 | 350 | 70 | 70 | 70 | 210 | 6 | 13 |
| 3PEI-80 | 400 | 80 | 80 | 80 | 240 | 6 | 14 |
| 3PEI-90 | 450 | 90 | 90 | 90 | 270 | 6 | 14 |
| 3PEI-100 | 500 | 100 | 100 | 100 | 300 | 6 | 16 |
| 3PEI-120 | 600 | 120 | 120 | 120 | 320 | 6 | 16 |
Company information:
Jiangyin Centersky was established in 2000. Main business is manufacturing silicon steel EI lamination, UI lamination, cutting lamination.
Our capacity is 1500mt per month. We have 15 years' export experience.
FAQ:
1. Q: Can I get some samples?
A: Yes, sample order is available for quality checking and market test.
2. Q: What's the delivery time?
A: Sample order needs 2-3 days. Formal order needs 8-15 days.
3. Q: What's your payment terms?
A: We usually accept T/T at sight as the main payment terms, and other payment can also be negotiated.
4. Q: Do you have the prodcts in stock?
A: Yes, we will keep some general ones in stock.
5. Q: Can I mix different models in one container?
A: Yes, different models can be mixed up.
|
