Truck Air Conditioning 24V Lithium Ion Battery 1280Wh IEC62133 Standards

Categories 24V Lithium Ion Battery
Brand Name: LILEAD
Model Number: S2450
Certification: CE,UN,IP67
Place of Origin: china
MOQ: 1
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 3000pcs/month
Delivery Time: 30 working days
Packaging Details: Boxed
Type: Lifepo4
Size: 279*175*189mm
Cycle life: 6000 cycles with DOD10%
Nominal voltage: 25.6V
Nominal capacity: 50AH
Weight: 11Kg/ 24.3lbs
Color: Black
Oem/odm: Accepatable
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

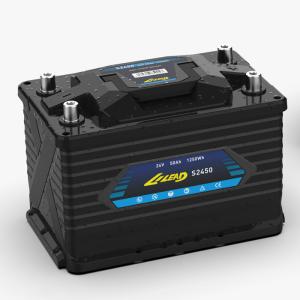

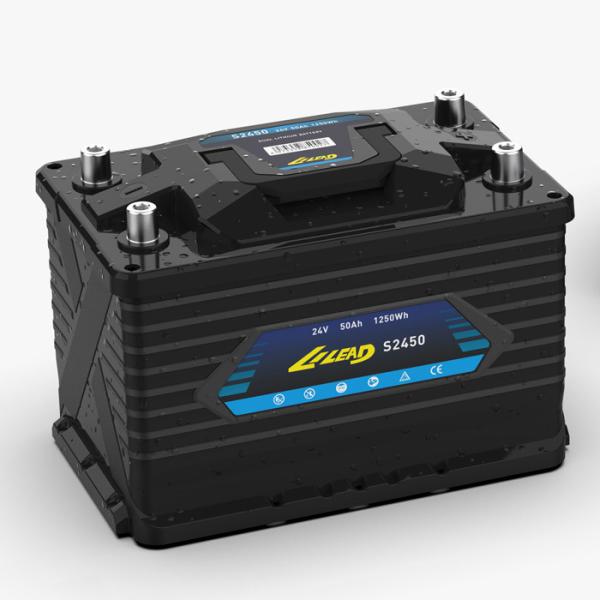

Truck Air Conditioning 24V Lithium Ion Battery 1280Wh IEC62133 Standards

Truck Air-conditioning Lithium Battery 24V 50Ah


800A cranking current
LILEAD S2450 dual 24V lithium ion battery can easily start nearly all fishing boat & RV engines, no matter it’s gasoline or diesel engine.


0 Maintenance
No acid or water. No trickle charging. No mess. LILEAD dual 24V lithium ion battery just works, day in and day out.


Drop in replacement
Dimension: 279*175*189mm; 11*6.9*7.5inch
Group size: L30 DIN (70Ah lead acid battery size)
Can be charged via alternator.


Certifications
LILEAD S2450 dual 24V lithium ion battery cells are EV grade LiFePO4 battery cell, which is the best LiFePO4 battery cell in market. Cells are UL1642 certified and have been tested per IEC62133 standards.
LILEAD S2450 dual 24V lithium ion battery are UN38.3 certified. Meets international regulation for air, ground, train and marine transport.


It’s also IP67 and , CE-EMC certified, perfect as lithium leisure battery for marine application.
LILEAD S2450 dual 24V lithium ion battery housing is UL94-V0 certified, its top flammability grade for battery plastic housing.


Application
Trolling motor
Sailboat
Yacht
Houseboats
RV’s
Trailers
Off-grid, homes
Overlanders

S2450 BATTERY TECH DATA
Stored Energy1280Wh
Rated capacity50Ah
Dimension (L*W*H)279*175*189mm 15.01*6.89*7.44inch
Nominal voltage25.6V
Volt range20V-29.2V
Charge timeStandard5.5h
Rapid1.5h
Charge method
CC-CV
Standard10A/29.2V
Rapid100A/29.2V
Max discharge currentCrank800A
Surge (60S)300A
continous100A
Cycle life
0.5C, 23℃/73℉
10%>6000 cycles
100%>2000 cycles
Operating temperature rangeCharge0℃~55℃/ 32℉~131℉
Discharge-20℃~60℃/ -4℉~140℉
Storage (1 month)-20℃~45℃/ -4℉~113℉
Storage (6 month)-10℃~35℃/ 14℉~95℉
Water proofIP67
Flammability ratingUL94-V0
Approx weight11Kg/ 24.2lbs
Series & parallel connectionMax 2 series connection.
Multiple parallel connection for yachts.
Batteies must be fully charged before series or parallel connection.
BMS Protection
BalanceCurrent40mA
Activate volt3.55V/ cell
High temperature protection (MOSFET)Protection85℃/ 185℉
Release75℃/ 167℉
High temperature protection (cell)Protection65℃/ 149℉ (charge) 70℃/ 158℉ (discharge)
Release55℃/ 131℉ (charge) 60℃/ 140℉ (discharge)
Low temperature protection (cell)Protection0℃/ 32℉ (charge) -20℃/ -4℉ (discharge)
Release10℃/50℉ (charge) -10℃/ 14℉ (discharge)
Over-chargeProtection30.8V (3.85V/cell)
Relase29.2V (3.65V/cell)
Over-dischargeProtection18.4V (2.3V/cell)
Relase20.0V (2.5V/cell)
Short-circuitProtection3800A
RelaseRemove load for the short circuit protection to release
LILEAD reserves the right to make adjustments to this publication at any time, without notice or obligation.
