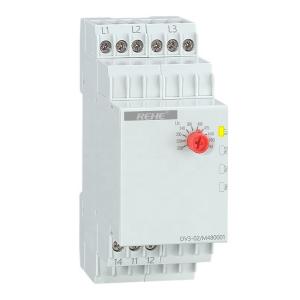

DV3-02 3 phase Adjustable Monitoring Voltage Protector Device

Categories	Relay
Place of Origin:	Zhejiang, China
Brand Name:	SUCHEN
Model Number:	DV3-02
Theory:	Voltage Relay
Usage:	PROTECTIVE
Size:	Miniature
Protect Feature:	Sealed
Contact Load:	Low Power
Supply terminals:	L1/L2/L3
Supply voltage (AC 50-60Hz):	208-220-230-240-380-400-415-440-460-480
Voltage set:	3*400V/50-60Hz
Output contact:	1SPDT
Peak overload<1ms:	600V<1ms
Time delay t1:	Fixed, max. 200 ms
Time delay t2:	Adjustable 0.1-10s
Rated current:	10A/AC1
Switching voltage:	250V AC1/24V DC
Power source:	AC
Packaging Details:	1.Strong Strandard Export Package,Meet The Long-Distance Transportation
Port:	Ningbo or Shanghai
Supply Ability:	5000 Piece/Pieces per Week
MOQ:	10 pieces
Price:	$23.42/pieces >=10 pieces

Contact Now

Add to Cart

Company Info.

YUEQING RENHE ELECTRIC CO., LTD.

View Contact Details

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Technical parameters

♦ Monitoring of 3-phase mains:

- voltage in 2 levels (undervoltage and overvoltage) in range 120-277V (3P+N) or

208-480V (3P3W)

- phase asymmetry (can be switched off)

- phase sequence

- phase failure

♦ Function of second relay (independent/parallel).

♦ Adjustable delay for short peaks for each level independently.

♦ M480: For circuits 3×400V (without neutral).

♦ M277: For circuits 3×400/230V (with neutral).

♦ Galvanically separated supply voltage AC 400V, AC 110V, AC 230V, AC/DC 24V.

♦ Output contact: 2×changeover 10A/250V AC1

♦ 2-MODULE, DIN rail mounting.

Description

Connection

Symbol

Function

Model

Supply voltage

(AC 50-60Hz)

Output contact

Unit

Price

DV3-02

208-220-230-240-380-400-415-440-460-480

2×changeover 10A/250V AC1

1PC

$23.42
