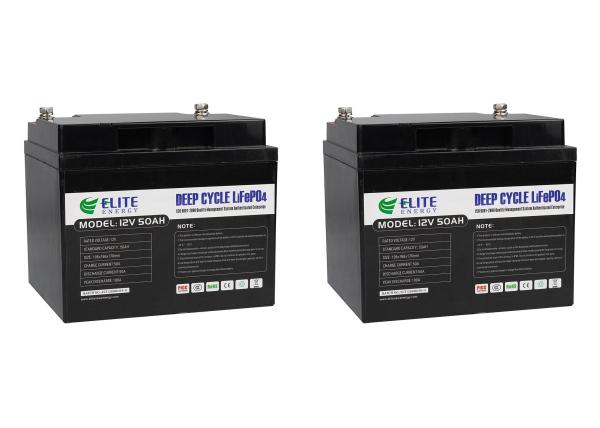

12V 50Ah Lithium Ion Battery Pack 4000 Cycles Time LiFePO4 Battery For ESS RV Caravan
Li-ion Battery Features :
1. About 10 times longer life cycle than lead-acid battery.
2. High energy density, about 2 times more capacity with the same size
3. Fast charging and large current discharging without damaging the battery.
4. Smart battery with charging, discharging, short circuit and temperature rising control by BMS.
5. Bluetooth function for checking the battery status conveniently
LiFePO4 Battery Parameter
Electrical Characteristics | Model | 12.8V 50AH | 12.8V 65AH | 12.8V 75AH | 12.8V 80AH | ||||
| Energy | 640Wh | 768Wh | 960Wh | 1024Wh | |||||
| Battery Type | LiFePO4 Battery | ||||||||
| Internal Resistance | ≤10mΩ | ||||||||
| Cycle Life | >4000 cycles@1C 100% DOD | ||||||||
| Months Self Discharge | <3% | ||||||||
| Efficiency of Charge | 100%@0.5C | ||||||||
| Efficiency of Discharge | 96-99% @1C | ||||||||
| Standard Charge | Charge Cut-off Voltage | 14.6±0.2V | |||||||
| Charge Mode | 0.2C to 14.6V, then 14.6V charge current to 0.02C(CC/CV) | ||||||||
| Recommend Charge Current | 10-25A | 12-30A | 15-37.5A | 16-40A | |||||
| Max. Charge Current | 50A | 60A | 70A | 80A | |||||
| Standard Discharge | Max. Continuous Discharge Current | 50A | 60A | 70A | 80A | ||||
| Max. Pulse Current | 100A | 120A | 150A | 160A | |||||
| Discharge Cut-off Voltage | 10V | ||||||||
| Environmental | Charge Temperature | 0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity | |||||||
| Discharge Temperature | -20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity | ||||||||
| Storage Temperature | 0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity | ||||||||
| Water Dust Resistance | IP54 | ||||||||
| Mechanical | Cell&Method | 4S | |||||||
| Package | ABS case(Metal Optional) | ||||||||
| Dimensions(in./mm.) | 198*166*170mm | 269*160*208mm | 269*160*208mm | 307*169*208mm | |||||
| Weight(lbs./kg.) | 6.5Kg | 8.5Kg | 12Kg | 13Kg | |||||
| Terminal | M8 | ||||||||
| Display screen | Optional | ||||||||
| Bluetooth | Optional | ||||||||
| Series/Parallel | 4 Series or 2 Parallel Connection | ||||||||
| Others | Certification | CE, MSDS, UN38.3 | |||||||
| Warranty | Standard 3 years, 5+ years upon request | ||||||||
| OEM | Support for customized dimension, current, logo and so on. | ||||||||
Functions of LiFePO4 Battery
Self-heated Function
To relieve winter range anxiety in some freezing environment, the BMS can bring with self heating function. Resistance heating rapidly warms the inside of battery. Start heating temperature:≤0°C. Stop heating temperature:≥10°C. Can improve battery charge / discharge performance.
Bluetooth Function
LiFePO4 technology offers high-powered cell performance compatible with lots of lithium-ion application to deliver more power and extend long life. Also built with bluetooth function allow you to read battery status freely anytime.
BMS Function
Over-charge protection;Over-discharge protection;Over current protection;Cell balancing function;Over temperature protection... ...
Storage and Transportation of LiFePO4 Battery 12.8V 50Ah
· Based on the character of cell, proper environment for transportation of LiFePO4 battery pack need to be created to protect the battery.
· During transportation,50% SOC must be kept to ensure that short circuit, appearance of liquid in the battery or immersion of battery in liquid never occur.
· Battery should be kept at -20℃～45℃ in warehouse where it’s dry, clean and well-ventilated.
· During loading of battery, attention must be paid against dropping, turning over and serious stacking.
Precautions
>-- If the battery leaks or smells, move it away from open fire. The battery should be used after fully charged in the first use.
>-- If the battery pack smells, fevers, is out of shape, color changes or any other abnormal phenomena which the battery can't be used, if the battery is being charged or used, please take it out of the charger or electrical equipment.
>-- If the battery leaks and the electrolyte get into the eye, do not rub eye. Instead, rinse eye with clean water, and seek medical attention immediately. *Temperature will influence discharge capacity, if the temperature exceeds standard environment temperature(25±5°℃), discharge capacity will reduce.
|
