| Categories | Trackball Pointing Device |
|---|---|
| Brand Name: | IKB-MKB |
| Model Number: | K-TEK-B88-25-OTB-DWP |
| Certification: | CE, FCC, ROHS, IP65, IP68, ISO 9001-2015 |
| Place of Origin: | Shenzhen, China |
| MOQ: | 1pc |
| Price: | To be quoted |
| Payment Terms: | Full payment in advance, Western Union, T/T, Paypal |
| Supply Ability: | 3000psc/month |
| Delivery Time: | ASAP Within 2 weeks upon payment confirmed |
| Packaging Details: | Each keyboard to one box, several boxes to one carton. |
| Dimensions: | 88.0mm x 88.0mm (top panel) |
| Interface: | PS2, USB available |
| Material: | stainless steel |
| Mouse Button: | 3 mouse button |
| Mounting Method: | Top Panel |
| Color: | white |
| Company Info. |
| Key Technology ( China ) Limited |
| Verified Supplier |
| View Contact Details |
| Product List |

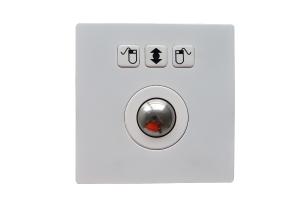

MODEL NO.:K-TEK-B88-25-OTB-DWP
TECHNICAL SPECIFICATION
| ITEM | SPECIFICATION | |
| Mechanical | Key | 3 keys, quality brushed stainless steel |
| Key top style | Non-protuberant rectangular Keys | |
| Front Plate | Quality brushed stainless steel | |
| Key Travel | 0.45mm | |
| Ball diameter | 25.4mm/1.0’' (19mm, 25mm, 36mm 40mm also available) | |
| Key switch lifespan | more than 1 Mio actuations | |
| Track ball lifespan | > 5 years | |
| Back Metal Cover | Rear side integrated electronics protected by a metal cover | |
| Actuation Force | 3.2N+/-0.1N | |
| Mounting Rack | Stainless steel | |
| Dimension | Dimensions with 25mm track ball, Front plate (W x H): 88.0mm x 88.0mm | |
| Interface | PS2, USB are available | |
| Electrical | Power supply | +5V DC +/-5% |
| Protection level | IP67 (dynamic), IK09 | |
| EMC Standard | EN 55032:2015, EN 55035:2017 | |
| Power consuming | ≤1.00W(dynamic) | |
| ≤0.2W(static) | ||
| Contact Material | Gold-on-Gold | |
| Environmental | Operating temperature | -20ºC~+ 60º C |
| Storage temperature | - 30ºC~+ 70ºC | |
| Operating RH | 30~90% | |
| Atmospheric pressure | 60~106Kpa. | |
| Reliable | Certificates | RoHS compliant, CE and FCC certified. ESD |
| MTBF | >20000h | |
| MTTR | < 30min | |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). | |
| Packing Details | Each unit to a suitable brown box, suitable brown boxes to a standard export carton. | |
