| Brand Name: | XPM |
| Model Number: | 20-50MM |
| Certification: | CE,ISO |
| Place of Origin: | ZHANGJIAGANG,CHINA |
| MOQ: | 1 SET |
| Price: | 20,000-25,000 USD/SET |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 SETS PER MONTH |
| Delivery Time: | 45 WORKING DAYS |
| Packaging Details: | WOODEN CASE PACKING AND PLASTIC FILM |
| Contactor Brand: | Siemens |
| Raw Material: | PVC |
| Color: | Customized |
| Screw: | Conical Twin Screw |
| Warranty: | 1 Year |
| Inverter: | ABB |
| Voltage: | 220V,380V Or Customized |
| Application: | Plastic Pipe |
| Output: | 250Kg/H |
| Motor Power: | 37Kw |
| Company Info. |
| ZHANGJIAGANG SAIJIA MACHINERY TECHNOLOGY CO.,LTD. |
| Verified Supplier |
| View Contact Details |
| Product List |

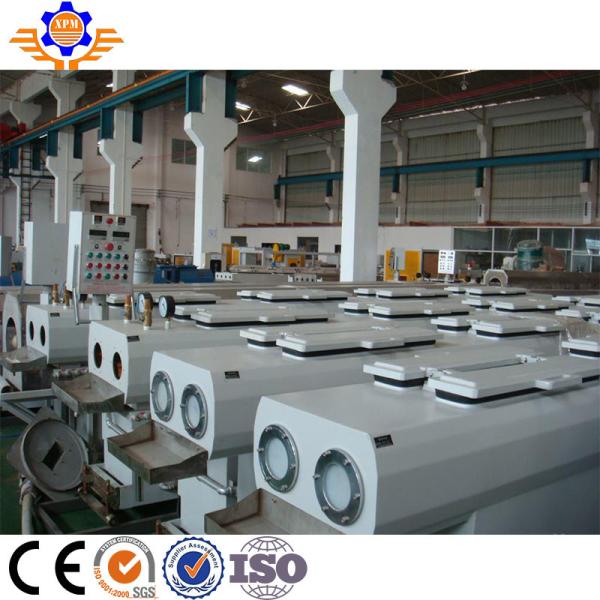

Automated Double 20-50MM PVC Pipe Production Line Plastic Pipe Extruder
Description for PVC pipe extrusion line:
This production line composes a conical double-screw extruder, different pipe die heads and the relevant auxiliary machines. It is mainly used to produce PVC twin pipes which are used as electric thread-passing pipes and so on. With excellent extruding capacity, the production line can make small diameter pipes of high quality in excellent productivity. The whole set is easy and safe to operate.
With reasonable structure, stable and reliable performance, the production line can fulfill synchronic speed adjustment between the main motor of the extruder and that of the tractor. In addition, by way of vacuum sizing, the sizing effect is getting better and so does the automation of the device.
In PVC twin pipe production line, the vacuum sizing box of the
auxiliary equipments consist of two stainless steel sizing boxes
actually, which are 5 meters long and can be operated separately.
Use automatic controller and motor to control the liquid level and
movements respectively. The tractor adopts frequency conversion and
the clamping is in a pneumatic way. The cutter is of automatic
metering and cutting. Additionally, the stacking bracket can turn
automatically.
According to requirements of different clients, the whole
production line has desirable man and machine interface which
adopts PLC controlling program.
SPECIFICATIONS:
| MODEL | PIPE DIAMETER (MM) | EXTRUDER MODEL | MOTOR POWER (KW) |
| XPM-32 | 16-32 (FOUR PIPE) | SJSZ65/132 | 37 AC |
| XPM-50A | 16-50 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| XPM-50B | 16-50 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| XPM-63 | 16-63 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
|
