| Categories | Oxygen Gas Sensor |
|---|---|
| Brand Name: | Alphasense |
| Model Number: | O2-A2 SR-X10-C1 |
| Place of Origin: | UK |
| MOQ: | 1 |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 10000pcs/Month |
| Delivery Time: | 3-5Workingdays |
| Packaging Details: | Box |
| Name: | Alphasense Oxygen Sensor |
| Color: | Purple |
| Detection: | Oxygen |
| Height: | 16.8mm |
| Resopnd Time: | 90s |
| Pressure range: | 80 to 120 |
| Company Info. |
| ShenzhenYijiajie Electronic Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

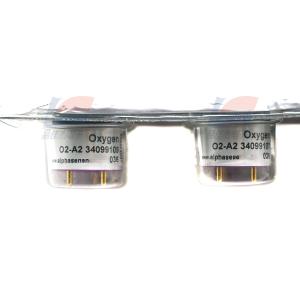

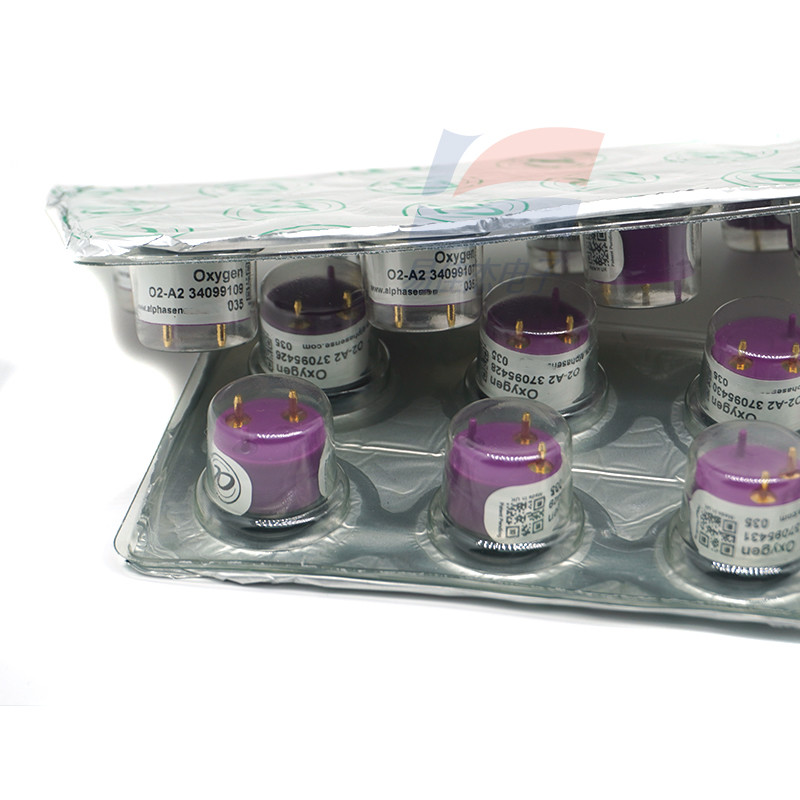

O2-A2 SR-X10-C1 Gas O2 Sensor About 16g Resopnd Time 90s Under 15
PERFORMANCE
| Output | µA @ 20.9% O2 | 80 to 120 |
| Response time | t90 (s) from 20.9% to 0% O2 | < 15 |
| Zero current | µA in N2 | < 2 |
| Linearity | % O2 deviation @ 10% O2 | 0.6 |
| Output drift | % change in output @ 3 months | < 1 |
| Operating life | months until 85% original output of 20.9% O2 | > 24 |
| Humidity Sensitivity | % O2 change: 0% to 95% rh @ 40°C | < 0.7 |
| CO2 sensitivity | % (change O2 reading) / % CO2 @ 5% CO2 | 0.1 |
| Pressure sensitivity | (% change of output)/(% change of pressure) @ 20kPa | < 0.1 |
| Temperature range | °C | -30 to 55 |
| Pressure range | kPa | 80 to 120 |
| Humidity range | % rh continuous (0 to 99% rh short term) | 5 to 95 |
| Storage period | months @ 3 to 20°C (store in sealed pot, open circuit) | 6 |
| Load resistor | Ω (recommended) | 47 to 100 |
| Diameter | mm (including label) | 20 |
| Height | mm (including foam ring) | 16.8 |
| Weight | g | < 16 |
|
