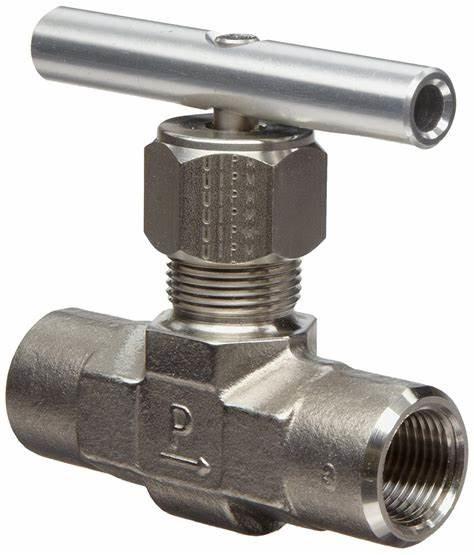

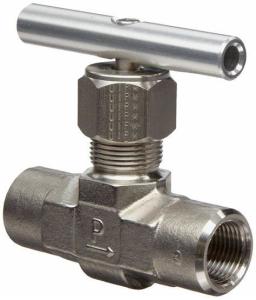

| Production Name: | Globe Style Needle Valve |
| Material: | SS316 |
| Types: | threaded end |
| Ends: | Female X Male |
| Size: | 1/2'' |
| Class: | 2500 psi |
| AVAILABLE SIZE:: | 1/4"-1" |
| Application: | Gas,Oil,Water And Other Corrosie Liquid |
| Company Info. |
| TOBO STEEL GROUP CHINA |
| View Contact Details |
| Product List |
Lubricated Plug Valve PTFE Sleeved & Inverted Pressure Balanced Lubricated Plug Valve 304
| Name: | Plug Valve | Medium: | Acid, Alkali |
|---|---|---|---|
| Normal Size Range: | DN15~DN400, 1/2"~16" | Normal Pressure Rating: | PN10~PN420, CLASS150~2500 |
| Standard: | DIN/BS/AWWA/JIS | Temperature: | -20~120 C |
| Body: | Cast Steel/ Stainless Steel | Plug: | PTFE / PFA |
| High Light: | flanged plug valve, gas plug valve | ||
PTFE Sleeved& Inverted Pressure Balanced Lubricated Plug Valve 316
Conform to API 6D, API 599, and ASME B16.34. They are tested according to API 598, and marked as per MSS SP-25
Normal Pressure Rating
PN10~PN420, CLASS150~2500
Normal Size Range
DN15~DN400, 1/2"~16"
Construction is as follows:
| - Regular Port | ||
| - Short, Regular or Venturi Pattern | ||
| - Bolted Bonnet with spiral-would gasket | ||
| - Anti-static Design & Blow-out proof stem | ||
| - Socket Weld Ends to ASME B16.11 | ||
| - Butt Weld Ends to ASME B16.25 | ||
| - Screwed Ends to ANSI/ASME B1.20.1 | ||
| - Flanged Ends to ASME B16.5 |
Main Part & Materials
| Part Names | Part Materials | ||||||
| Body | WCB/A105 | LCB/LF2 | WC6/F22 | CF8/F304 | CF8M/F316 | CF3/F304L | CF3M/F316L |
| Bonnet | WCB/A105 | LCB/LF2 | WC6/F22 | CF8/F304 | CF8M/F316 | CF3/F304L | CF3M/F316L |
| Plug | A105+ENP | SS304 | F22 | SS304 | SS316 | SS304L | SS316L |
| Seat/Seat Ring | PTFE or METAL | ||||||
| Packing | Graphite/PTFE | ||||||
| Gasket | SS304+Graphite/SS304+Graphite | ||||||
| Bolts/Nuts | B7/2H | L7/4 | B16/4 | B8/8 | B8M/8M | B8/8 | B8M/8M |
| Suitable Medium | W.O.G etc. | HNO3, CH3OOH etc. | |||||
| Suitable Temperature | -29~425 °C | -46~340 °C | -46~340 °C | -196~427 °C | -196~427 °C | -196~427 °C | -196~427 °C |
Sleeve type soft sealing plug (DIN) is applicable to the cutting and connection of pipelines medium that are used in various industries such as petroleum, chemical industry, pharmacy, chemical fertilizer, power industry etc under nominal pressure of PN1.6~16Mpa, and working temperature of -29~180℃.
Description:
Main parts & materials:
| No. | Part name | material |
| 1 | Body | GS-C25 1.7363 1.4308,1.4408,1.4306,1.4301 |
| 2 | Sleeve | PTFE |
| 3 | Plug | ASTM A182-Gr,F6a,ASTM A182-F22 ASTM A182-F304,F316,F321,F304L,F316L |
| 4 | Gasket | Flexible graphite + stainless steel, PTFE |
| 5 | Adjusting gasket | ASTM A182-Gr,F6a,ASTM A182-F22 ASTM A182-F304,F316,F321,F304L,F316L |
| 6 | Cover | GS-C25 1.7363 1.4308,1.4408,1.4306,1.4301 |
| 7 | Adjusting bolt | ASTM A193-B7, A320-B8, A193-B8M |
| 8 | Net | ASTM A194-2H, A194-8, A194-8M |
| 9 | Bolt | ASTM A193-B7, A320-B8, A193-B8M |
| 10 | Yoke | Q235,WCB |
| 11 | Worm |
Feature:
1. The product has reasonable structure, reliable sealing, excellent performance and beautiful
appearance.
2. Its sealing is realized by the sealing face around the sleeve. It has unique 360 degree metal
edge for protection and fixing of the sleeve.
3. There Is no cavity in the valve for accumulation of medium.
4. Metal edge provides the function of self-cleaning when the plug is rotated,
applicable to the operation condition that is glutinous and apt to smudge.
5. Its characteristic double-direction flow makes installation and sue more convenient.
6. The materials of the parts and sizes of flanges can be reasonably configured according
the actual operation condition of the requirements of the customers, so as to meet
the various needs of engineering.
Executive standard
| Structural formation | BC |
| Driving manner | worm & worm gear, pneumatic, electric-actuated ,Wrench wheel |
| Design standard | DIN |
| Face to face | DIN 3202F1 |
| Flange end | DIN 2543-2549 |
| Test & inspection | DIN 3230 |
The size of serial valve connecting flange can be designed according to customers requirement.
| Nominal pressure(MPa) | Shell test(MPa) | Sealing test(MPa) | Suitable temp | Suitable medium |
| 1.6 | 2.4 | 1.76 | -29~180℃ | Water, oil & gas |
| 2.5 | 3.75 | 2.75 | ||
| 4.0 | 6.0 | 4.40 | ||
| 6.4 | 9.6 | 7.04 | ||
| 10.0 | 15.0 | 11.0 | ||
| 16.0 | 24.0 | 17.6 |
Main technical data
Main external and connection dimension
| KQDX43-16 | ||||||||||||||||
| pressure | PN16 | |||||||||||||||
| size | mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 |
| L | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 730 | 850 | 980 | |
| H | 150 | 155 | 160 | 180 | 190 | 200 | 220 | 230 | 380 | 460 | 520 | 580 | 620 | 680 | 740 | |
| W | 300 | 300 | 300 | 350 | 400 | 500 | 500 | 550 | 300 | 300 | 320 | 320 | 350 | 380 | 380 | |
| Weight | 9 | 10 | 11 | 13 | 14 | 19 | 23 | 27 | 43 | 62 | 75 | 155 | 222 | 390 | 580 | |
| KQDX43-25 | ||||||||||||||||
| pressure | PN25 | |||||||||||||||
| size | mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 |
| L | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 730 | 850 | 980 | |
| H | 150 | 155 | 160 | 180 | 190 | 200 | 220 | 230 | 380 | 460 | 520 | 580 | 620 | 680 | 740 | |
| W | 300 | 300 | 300 | 350 | 400 | 500 | 500 | 550 | 300 | 300 | 320 | 320 | 350 | 380 | 380 | |
| Weight | 10 | 11 | 13 | 15 | 17 | 22 | 31 | 55 | 77 | 88 | 190 | 190 | 235 | 399 | 630 | |
| KQDX43-40 | ||||||||||||||||
| pressure | PN40 | |||||||||||||||
| size | mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 |
| L | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 730 | 850 | 980 | |
| H | 190 | 195 | 225 | 260 | 280 | 310 | 340 | 395 | 435 | 470 | 535 | 590 | 630 | 680 | 720 | |
| W | 120 | 140 | 140 | 180 | 200 | 220 | 260 | 280 | 300 | 340 | 400 | 450 | 450 | 500 | 500 | |
| Weight | 12 | 14 | 18 | 21 | 24 | 29 | 33 | 39 | 75 | 103 | 146 | 251 | 337 | 521 | 720 | |
| KQDX43-64 | ||||||||||||||||
| pressure | PN64 | |||||||||||||||
| size | mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 |
| L | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 730 | 850 | 980 | |
| H | 190 | 195 | 225 | 260 | 280 | 310 | 340 | 395 | 435 | 470 | 535 | 590 | 630 | 680 | 720 | |
| W | 120 | 140 | 140 | 180 | 200 | 220 | 260 | 280 | 300 | 340 | 400 | 450 | 450 | 500 | 500 | |
| Weight | 14 | 17 | 22 | 25 | 29 | 34 | 43 | 50 | 94 | 123 | 170 | 291 | 430 | 625 | 875 | |
| note: 100mm or above with worm gear | ||||||||||||||||
|
