| Categories | Android Panel PC |
|---|---|
| Brand Name: | ITD/OEM |
| Model Number: | ITD101PPCT5HE2 |
| Certification: | CE, FCC, RoHS |
| Place of Origin: | China |
| MOQ: | 1PCS |
| Price: | TBA |
| Payment Terms: | T/T, PayPal(173515844@qq.com) |
| Supply Ability: | 10000PCS/Month |
| Delivery Time: | 7-10 Business Days |
| Packaging Details: | 1-5pcs/CTN, Safe, Firm, suitable for international shipping |
| Native resolution/Brightness: | 1280 x 800 350cd/㎡ |
| Applications: | access control, automation |
| I/O: | PoE, USB, HDMI output, DC, TF Card slot |
| touch panel: | projected capacitive touch screen 10 points |
| Communication: | WIFI, Bluetooth, 4G optional |
| IP Level: | IP54 on front, LED Halo |
| Operating Temperature: | 0~50℃ |
| OS: | Android 11 |
| Configurations: | RK3399, 4G RAM, 32G ROM |
| Warranty: | 2 years |
| MTBF: | 50000hours |
| Product Name: | touch screen tablet computer 10 inch PoE Android 11 for access control |
| Company Info. |
| Shenzhen ITD Display Equipment Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

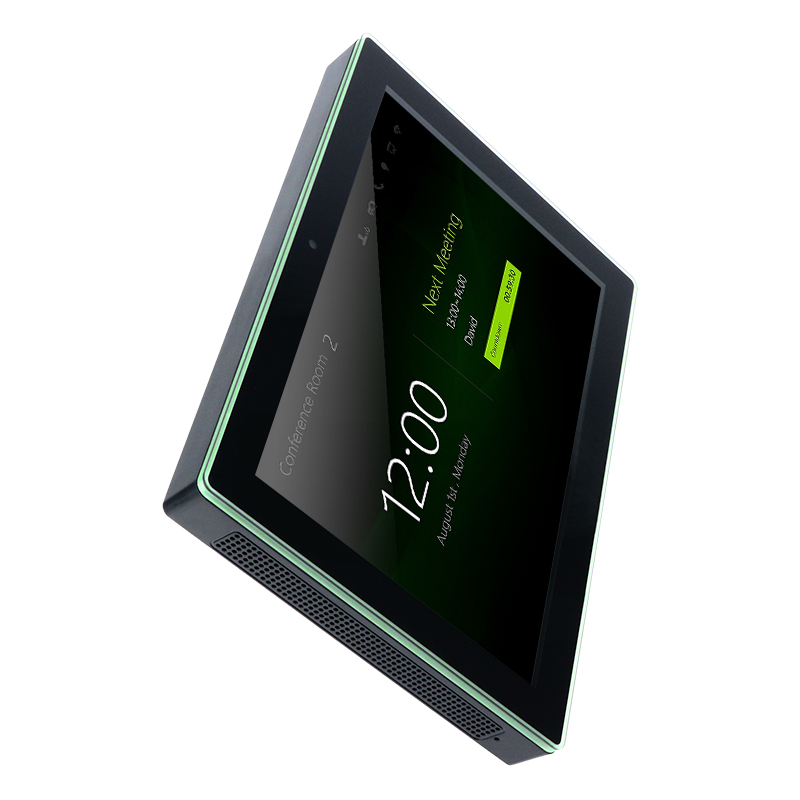

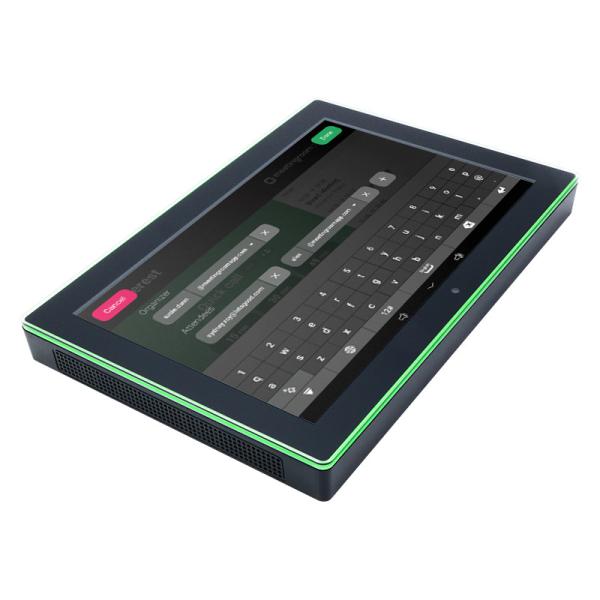

touch screen tablet computer 10 inch PoE Android 11 for access control
ITD 10.1” multi-touch screen HMI comfort panel PC is fully-integrated‚ with halo LED indicator, multi capacitive touch screen combines high-performance ARM Dual-Core Cortex-A72+Quad Cortex-A53 Processor RK3399 1.8GHz, and Projected Capacitive Touch (PCT or PCAP) Technology in commercial-grade LCD flat panels, combined with a smart card reader and web camera with sleek and flat front surface industrial design. This PCT technology is a capacitance system that delivers sensitive and accurate 10 multi-touch interactive experiences. The ITD multi-touch HMI comfort panel PC specifically suited for various smart interactive applications.
FEATURES of touch screen tablet computer
▪ Easy-to-clean, true flat front surface without bezel
▪ RFID/NFC/camera Modules Built-in, PoE optional
▪ Ten independent touch points with anti-vandalism & scratch
▪ Responds to a light touch to activate response
▪ Eliminates dust and debris build-up at the edge and corners of the display
▪ Provides improved power efficiency and reduced consumption
▪ Halo LED indicator integrated
▪Plastic housing equipped with light weight
▪Android 11 pre-installed
▪ CE, FCC, RoHS Compliance
Applications of touch screen tablet computer
•Access Control
•POS
•Information Display
PARAMETERS of touch screen tablet computer
| Panel | Cell Type/Glass Surface | TFT |
| Size | 10.1” | |
| Aspect Ratio | 16:10 | |
| Active Area | 216.96(W) × 135.6(H)mm | |
| Pixel Pitch | 0.1695× 0.1695mm | |
| Native Resolution | 1280 × 800 | |
| Colors | 16.7M | |
| Brightness | 300nits | |
| Contrast | 800:1 | |
| Response Time | 30ms | |
| Viewing Angle(Typical) | 85/85/85/85 | |
| Light Source | LED Backlight with 30000Hours’Lifetime |
SPECIFICATION
| System | CPU: ARM Dual-Core Cortex-A72+Quad Cortex-A53 RK3399 Processor, Main CPU frequency:1.8GHz GPU: Mali-T764 GPU SDRAM: 2G; 4G Optional Flash: 8G: 16G/32G/64G Optional OS: Android 8.1/9.1/11 Bluetooth: BT5.0 Video Decoder: 4K VP9 and 4K 10bits H265/H264 video decoders, up to 60fps 1080P other video decoders (VC-1, MPEG-1/2/4, VP8) Media Format: Supports RMVB, FLV, MPEG1/2/4, AVI, WMV, MOV, MP4, TS,etc Music Format: Support MP3/AAC/WAV/WMA/Dolby True HD/DTS-HD/LPCM /H264/VP8/MVC Photo Format: Supports JPG/BMP/GIF/TIFF/PNG WIFI: 802.11b/g/n 2 × 2W Speakers Built-in 2MP Front Camera Built-in |
| Input / Output | 1 × 3.5mm Earphone Jack 2 × USB Host 2.0, 1× mini-USB OTG 1 × RJ45 (10M/100M/1000M Ethernet) 1 × SD Card Slot up to 32GB 1 × DC Jack 1 × PoE (power input, POE 802.3af (15W) optional |
| Operating Temperature | -10~60℃ |
| Storage Temperature | -20~70℃ |
| Operating Humidity | 10%~90% (non-Condensing) |


|
