| Categories | Aquatic Weed Harvester |
|---|---|
| Brand Name: | Head Dredging |
| Model Number: | HD-100 |
| Certification: | ISO9001 |
| Place of Origin: | Shandong |
| MOQ: | 1 |
| Price: | $35000/set |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 sets /Year |
| Delivery Time: | 30 days |
| Packaging Details: | Container for Shipping |
| Warranty: | 1 Year |
| condition: | New |
| Type: | automatic |
| Name: | Harvester |
| Dimension(l*w*h): | 13500*4400*2500mm |
| Application: | water cleaning |
| Weight: | 10 Ton |

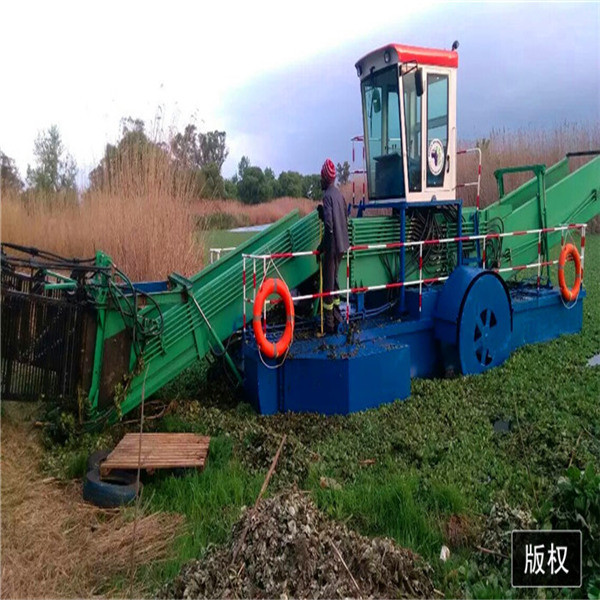

Aquatic weed harvesters are mainly used to collect floating aquatic weed and floating trash in reservoirs, rivers, lakes and seashores.The harvesters are of easy operation, high efficiency and stable performance.
Specification
ITEM | HD-WH40 | HD-WH60 | HD-WH100 | HD-WH150 |
1. Draught (m) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.5-0.7 |
2.Harvesting width(m) | 1.0-1.5 | 1.0-1.2 | 1.2-1.5 | 1.5-2.0 |
3.Loading capacity(m³) | 1-5 | 3-5 | 8-12 | 15-26 |
4.Speed work(km/h) | 2-4 | 2-4 | 2-8 | 2-8 |
5.Harvesting depth(m) | 0.6 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
6. size Main collecting arm (m) | 4*1.2-1.7*1.4 | 4*1.2-1.4*1.4 | 5.5*1.2-1.7*1.4 | 6*1.7-2.6*1.4 |
7.Harvested area (m2) | 1000 | 2000 | 3000 | 5000 |
8. Total weight (T) | 5-6 | 6-8 | 8-10 | 18-30 |
1.The equipment can used in collect,transport,discharge water
hyacinth,reed,algae and garbage in the water.
2.the operation system use full automatic centralized control, this
can make the equipmend sail and go forward and back.
3.the equipment can be adjust the direction and do the unloading
work by one person.this kind of dredger is famous for it
simple structure,flucxible movement and easy operation.
4.the machine is made is welding steel,the material is CCSB(China
Classification Society Standard) ship steel plates,the
equipment pained 4 layersof anti-rust marine paint.
5.the opearion system uses remote centralized control, this can
make the equipment sail,go forward and back,adjust direction
and do the loading work.
|
