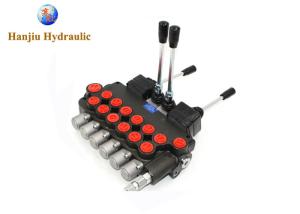

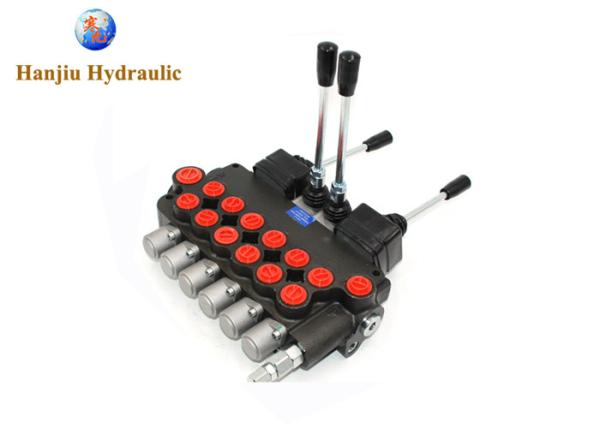

Joystick Tractor Loader 6 Spools 11gpm Monoblock Hydraulic Directional Control Valve Sae Ports

Joystick Hydraulic Directional Control Monoblock Valve for Tractor Loader, 6 Spools, 11 GPM, SAE Ports

Product description:
Monobloc Hydraulic Directional Control Valve for Tractor Loader with Joystick, 6 Coils (Single Floating Reel Optional), 11 GPM

SKU: 6P40

This monoblock valve is a hydraulic directional control valve. These valves are used to start and stop fluid flow in hydraulic cylinders or hydraulic motors.

Common uses:
Operate hydraulic cylinders (double acting or single acting)
Operate hydraulic motors (reel "D" required)
Install rear remotes on a tractor

Profits:
6-spool valve with compact design that allows installations in tight areas
All spools are standard double acting with spring return to neutral, which are ideal for double acting cylinders
Used for open center systems (Pump to tank flow) - closed center option available
Anti-drop load checks on each reel
The precision and hard chrome spools ensure a long service life.
High-strength cast iron one-piece construction
SAE O-ring ports ensure a solid seal and prevent clogging
Capable of closed center or Power Beyond (conversion plug required)
Vertical or horizontal handle mounting
Adjustable relief valve range: 1500 to 3625 PSI
Used as single acting motor or spool possible (SAE # 8 port plug required)

Characteristics:
Maximum operating pressure: P = 3625 PSI, T = 725 PSI, A & B = 4350 PSI
Flow: 11 GPM (40 l / min)
Work Ports A & B: # 8 SAE O-Ring Thread (3/4 "-16)
Inlet Port: # 10 SAE O-Ring (7/8 "-14) Thread
Outlet Port: # 10 SAE O-Ring (7/8 "-14) Thread
2 - 5/16 "mounting holes
Single floating reel option available to raise and lower the bucket
Made in China
Brand: HANJIU
