Hybrid Bond 1A1 1V1 Diamond Cbn Grinding Wheels 50-175 Mm

Categories	Grinding Wheel For Cutting Tools Industry
Certification:	High QC standard, 100% inspection
Place of Origin:	China
MOQ:	1PC
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	20000 pcs per month capacity
Delivery Time:	15-20 days delivery time
Packaging Details:	Box
Keyword::	Hybrid Bond Diamond Cbn Grinding Wheels
Application:	CNC Grinder
Used:	for CNC machine
Hardness::	according to working object
Size:	50-175 Mm
Type:	Hybrid Bond

Contact Now

Add to Cart

Company Info.

Xinzheng Dia Abrasives Co.,Ltd

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

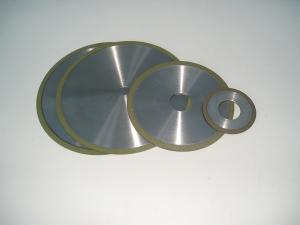

Hybrid Bond 1A1 1V1 Diamond Cbn Grinding Wheels 50-175 Mm

Hybrid Bond 1A1 1V1 Diamond Cbn Grinding Wheels 50-175 Mm

Hybrid Bond Diamond Cbn Grinding Wheels with advantages of both resin and metal bonds, free cutting and self-sharpening, good regidity and strengh, excellent shape retention, deep grinding and fast feed, workpiece in good quality, little viberation, low load, efficiency 100-150% higher than the resin bond

Feature of Hybrid Bond Diamond Cbn Grinding Wheels :

Easy dressing ability
Long dressing interval
Excellent surface finish
Best edge holding quality
Best stock removel rates and efficiency
Long tool life
Low machine load
No crack on grindle

Specification of Hybrid Bond Diamond Cbn Grinding Wheels :

Shape	D	T	W/U	X	V°	Grit	Application
1A1	50-175	6-20	6-20	5-15		D54-D107	Fluting/OD grinding
1V1	50-175	6-20	6-20	3-10	10-80°	D54-D107	Fluting/Gashing
3A1/14A1	50-175	8-20	3-10	3-10	10-80°	D54-D107	Fluting/OD grinding
11V9	50-150	25-40	3	10	70°	D46-D64	Clearance/Other operations
12V9	50-150	20-25	3	10	45°	D54-D107	Gashing/Other operations

Application:

Hybrid bond grinding wheels are mainly used in CNC Tools Grinding Machine with a very excellent stability and high flexibility,it’s requirement for the diamond grinding wheel could not be reached by usual diamond grinding wheel. The most demanding and time consuming operation is the flute grinding where we have a high stock removal- a cutting depth of 7-8mm is not unusual. As the contact area is large it is difficult for the coolant to reach the grinding zone. In order to minimize the risk of excessive heat generation, which may cause surface damages on the work piece and reduce the particle strength of the heat sensitive diamonds grits, it is often necessary to reduce the infeed or the feed rate.

But our new generation Hybrid Diamond/CBN Grinding Wheel, especially used for the CNC TOOLS grinding machine,such as: ANCA,WALTER,SCHUTTE,EWAG,SCHNEEBERGER,HUFFMANN and so on. Have shown excellent grinding performance in flute grinding with high stock removal capacity combined with a minimum of wheel wear. It is not necessary to reduce the infeed or the impact rate with our Hybrid Diamond/CBN Grinding Wheel.
