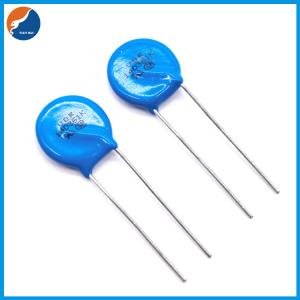

14D201K 14D391K 14D471K Zinc Oxide Varistor

14D 14MM High Volatge Resistor 14D201K 14D391K 14D471K ZOV Metal Zinc Oxide Varistor

Table1

Unit:mm

Symbol

Dimension

D(max.)

16.5

H(max.)

20.0

H0(max.)

21.0

F(±0.8)

7.5

T

Table2

d(±0.05)

0.8

d1(±0.4)

1.4

L(min.)

20.0

L0(min.)

15.0

Epoxy Colour : Green

Table2
Unit:mm
Model	T	Model	T
180K	2.55-3.80	361K	3.38-5.20
220K	2.65-3.94	391K	3.48-5.38
270K	2.76-4.14	431K	3.61-5.63
330K	2.89-4.33	471K	3.74-5.87
390K	2.84-4.11	511K	3.87-6.12
470K	2.96-4.33	561K	4.03-6.42
560K	3.11-4.58	621K	4.23-6.79
680K	3.31-4.87	681K	4.43-7.16
820K	2.64-3.81	751K	4.65-7.23
101K	2.74-3.98	781K	4.75-7.29
121K	2.84-4.18	821K	4.88-7.51
151K	2.69-3.97	911K	5.18-7.55
181K	2.79-4.16	102K	5.47-8.00
201K	2.87-4.32	112K	5.80-8.50
221K	2.92-4.34	122K	6.13-9.00
241K	2.99-4.47	142K	7.11-10.50
271K	3.08-4.65	162K	7.44-11.00
301K	3.18-4.83	182K	8.09-12.00

Electrical characteristics
ZOV Part Number	Maximum Allowable Voltage		Varistor voltage	IR3	@	Clamping volatge		Maximum Peak Crurrent (8/20μs)		Maximum Ebergt 10/1000μs		Reted Power	Typical Capacitance (Reference)
	Ac.rm s	DC	V1.0 mA	μA		VC	IP	Standard	High Surge	Standar d	High Surge	(w)	＠1KHz
	(V)	(V)	(V)			(V)	(A)	(A)		(JOULE)			(pf)
14D180KP/Z	11	14	18(15-21.6)	50	10	36	10	1000/5 00*2	2000/1 000*2	4	7	0.1	11100
14D220KP/Z	14	18	22(19.5-26)		10	43				5	8		9100
14D270KP/Z	17	22	27(24-31)		10	53				6	10		7400
14D330KP/Z	20	26	33(29.5-36.5)		10	65				7.5	12		6100
14D390KP/Z	25	31	39(35-43)		15	77				8.6	13		5100
14D470KP/Z	30	38	47(42-52)		15	93				10	17		4300
14D560KP/Z	35	45	56(50-62)		15	110				11	20		3600
14D680KP/Z	40	56	68(61-75)		15	135				14	24		2900
14D820KP/Z	50	65	82(74-90)	24	28	135	50	4500/2 500*2	6000/4 500*2	22	27	0.6	2400
14D101KP/Z	60	85	100(90-110)		28	165				28	33		2000
14D121KP/Z	75	100	120(108-132)		28	200				32	40		1700
14D151KP/Z	95	125	150(135-165)		28	250				40	53		1300
14D181KP/Z	115	150	180(162-198)		38	300				50	60		1100
14D201KP/Z	130	170	200(185-225)		38	340				57	70		1000
14D221KP/Z	140	180	220(198-242)		38	360				60	78		900
14D241KP/Z	150	200	240(216-264)		38	395				63	84		830
14D271KP/Z	175	225	270(243-297)		38	455				70	99		740
14D301KP/Z	190	250	300(270-330)		38	500				77	108		670
14D331KP/Z	210	275	330(297-363)		38	550				85	115		610
14D361KP/Z	230	300	360(324-396)		38	595				93	130		560
14D391KP/Z	250	320	390(351-429)		38	650				100	140		510
14D431KP/Z	275	350	430(387-473)		38	710				115	155		460
14D471KP/Z	300	385	470(423-517)		38	775				118	175		430
14D511KP/Z	320	415	510(459-561)		38	845				121	180		390
14D561KP/Z	350	460	560(504-616)		38	925				125	185		360
14D621KP/Z	385	505	620(558-682)		35	1025				128	190		320
14D681KP/Z	420	560	680(612-748)		35	1120				130	200		290
14D751KP/Z	460	615	750(675-825)		35	1240				143	210		270
14D781KP/Z	485	640	780(702-858)		35	1290				148	220		260
14D821KP/Z	510	670	820(738-902)		30	1355				157	235		240
14D911KP/Z	550	745	910(819-1001)		30	1500				175	255		220
14D102KP/Z	625	825	1000(900-1100)		30	1650				190	280		200
14D112KP/Z	680	895	1100(990-1210)		30	1815				213	310		180
14D122KP/Z	750	990	1200(1080-1320)		30	1980				232	324		160
14D142KP/Z	880	1140	1400(1260-1540)		30	2310				238	327		150
14D162KP/Z	1000	1280	1600(1440-1760)		30	2640				243	331		140
14D182KP/Z	1100	1465	1800(1620-1980)		30	2970			5000	250	335		130

ELETRICAL PARAMETER

Max. Allowable Voltage

Reference p2*

At 1.0mA DC

Varistor Voltage(Test Time For 30ms)

V0.1mA □ V1mA ■

Rated Wattage

Max. Clamping Voltage

Test Current Waveform 8/20μs

Withstanding Surge Current

Test Current Waveform 8/20μs

Max. Energy

Test Current Waveform 10/1000μs

Typical Capacitance

@1KHz

Leakage Current

At 80% of Varistor Voltage

Nonlinear Exponent (α)

Temperature Coefficient of Varistor Voltage

-0.05≤Tc≤0.05(％
℃)

V1mA@85℃-V1mA@25℃ × 1 × 100%(%/℃) V1mA@25℃ 60

V1mA@-40℃-V1mA@25℃ × 1 × 100%(%/℃) V1mA@25℃ 65

Impulse Life

≦±10%(V1mA)

Test Current Waveform 8/20μs

MATERIAL LIST

Material Chart RoHs

Item

Composition

Manufacturer

Coating

Epoxy Resin

Made in China, and in line with the UL 94-V0 testing, meet the environmental requirements

Lead

Cp/Cu wire

Made in China, meet the environmental requirements

Electrode

Silver

Made in China, meet the environmental requirements

Disk

Zinc Oxide

Made in China, meet the environmental requirements

Solder

Sn:96.5%CU 0.5%Ag3.0%

Made in China, meet the environmental requirements

MECHENICAL REQUIREMENTS

Tensile of Terminations

No Outstanding Damage

1.0Kgf; 10Sec.

Bending of Terminations

No Outstanding Damage

0.5Kgf；90°,3 Times

Vibration

No Outstanding Damage

Freq:10-55hz;Amp:0.75mm,1Min
.

Solderability

Min. 95% of The Terminal Should Be
Covered With Solder Uniformly

Solder Temp:245±5℃ Immersed Time: ≤5Sec.

Resistance of soldering heat

△ V1mA/V1mA
≦±5%

Solder Temp: 260±5℃ Immersed Time: 10±1Sec.

ENVIRONMENTAL REQUIREMENTS

High Temperature Storage

△ V1mA/V1mA
≦±5%

Ambient Temp: 125±2℃ Duration:1000h

Low Temperature Storage

△ V1mA/V1mA
≦±5%

Ambient Temp: -40±2℃ Duration:1000h

High Humidity Storage/Damp Heat

△ V1mA/V1mA
≦±5%

Ambient Temp: 40±2℃ 90-95%
R.H. Duration:1000h

Temperature Cycle

△ V1mA/V1mA
≦±5%

Step

Temperature
(℃)

Period
(min)

1

-40±3

30 ±3

2

Room Temp

15 ±3

3

85±3

30 ±3

4

Room Temp

15 ±3

High Temperature Load

△ V1mA/V1mA
≦±10%

Ambient temp:85±2℃ Duration:1000h Load: MAX. Allowable Voltage

High Humidity Load

△ V1mA/V1mA
≦±10%

Ambient Temp: 40±2℃
90-95%R.H.Duration:1000H
Load: MAX. Allowable Voltage

Operating Temperature Range

-40℃ ~ +85℃

Storage Temperature Range

-40℃ ~ +125℃

MARKING CODE

TAPING DIMENSIONS

Symbol							Dimension (mm)
P							25.4±1.0
P0							12.7±1.0
P1							8.95±0.7
P2							12.7±1.3
F							7.5±0.8
h							0±4
W							18.0±1.0
W0							12.0±1.0
W1							9.0±0.5
W2							3.0max
H							20.0±2.0
I							1.0max
D0							4.0±0.2
t							0.6±0.3
B							40max
