OHSAS18001 55.5kg Front Terminal Gel Battery 560*125*316mm 180ah Deep Cycle Battery

12V 180ah 12v Deep Cycle Battery Front Terminal Battery For UPS Communication System

>Main Features

- Long service life

- High discharge rate

- Low self-discharge rate

- Deep cycle

- Variety of installation

- High temperature resistance

- Vibration resistance

- Wide operating temperature range

>Specification

​

Battery Model No.		FBR12-180FT
Nominal Voltage		12V
Capacity (25ºC)	20HR(10.8V)	180Ah
	10HR(10.5V)	158Ah
	1HR(9.6V)	108Ah

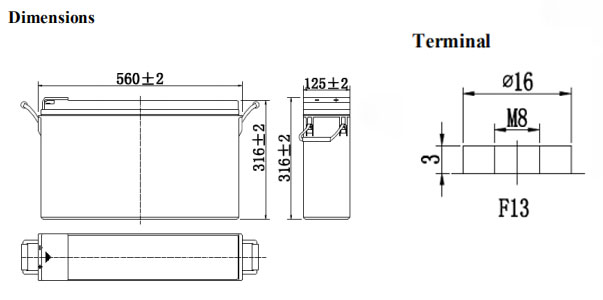

Dimension	Length	560±2mm
	Width	125±2mm
	Height	316±2mm
	Total height	316±2mm
Approx. Weight		55.5kg±4%
Terminal type		F13
Internal resistance (Fully charged,25ºC)		Approx4.2mΩ
Capacity affected by temperature(20HR)	40ºC	102%
	25ºC	100%
	0ºC	85%
	-15ºC	65%
Self-discharge (25ºC)	3month	Remaining Capacity:91%
	6month	Remaining Capacity:82%
	12month	Remaining Capacity:65%
Nominal operating temperature		25ºC±3ºC(77ºF±5ºF)
Operating temperature range	Discharge	-15ºC-50ºC(5ºF-122ºF)
	Charge	-10ºC-50ºC(14ºF-122ºF)
	Storage	-20ºC-50ºC(-4ºF-122ºF)
Float charging voltage (25ºC)		13.5 to 13.8V Temperature compensation:-18mV/ºC
Cyclic charging voltage (25ºC)		14.5 to 15V Temperature compensation:-30mV/ºC
Max charging current		54A
Max discharging current		1400A(5sec.)
Designed floating life(20ºC)		12years

>Structure and composition

Component	Positive plate	Negative plate	Container	Cover	Separator	Electrolyte	Safety valve	Terminal
Raw material	Lead dioxide	Lead	ABS	ABS	AGM	Sulfuric acid	Rubber	Copper

​

>Constant Current Discharge Characteristics(A,25ºC)

F.V/Time	10min	15min	30min	60min	2h	3h	4h	5h	8h	10h	20h
9.6V	381	293	175	108	65.8	46.8	37.8	32.3	22.0	18.3	9.71
9.9V	369	286	172	106	65.4	46.5	37.6	32.1	22.1	18.3	9.69
10.2V	354	276	167	104	64.8	46.2	37.3	31.9	21.9	18.2	9.66
10.5V	339	266	163	101	63.8	45.9	37.1	31.7	21.8	18.1	9.61
10.8V	320	252	157	98.3	62.2	44.5	36.0	30.7	21.1	18.0	9.54

>Constant Power Discharge Characteristics(Watt,25ºC)

F.V/Time	10min	15min	30min	60min	2h	3h	4h	5h	8h	10h	20h
9.60V	4111	3221	1969	1230	762	551	445	382	264	219	117
9.90V	3987	3143	1929	1212	757	547	442	380	262	218	116
10.2V	3823	3027	1870	1181	750	544	439	377	261	218	116
10.5V	3659	2924	1825	1156	739	540	436	374	259	216	115
10.8V	3453	2770	1758	1121	720	524	423	363	251	215	114

>Discharge diagram

>Application

1. Solar and wind energy storage system;

2. EPS and UPS battery backup;

3. Signal system , emergency lighting system , security system;

4. Telecommunication Equipment;

5. Power source for portable devices or tools.

>FAQ

Q1: How to choose the right battery?

A1: Tell us your demand, then our sales will recommend a suitable battery for you.

Q2. Do you have any MOQ limit?

A2: Yes, we have MOQ for mass production, it depends on the different model numbers. 50-500pcs sample order is available.

for sample checking is available.

Q3. Is it OK to print my logo on the product?

A3: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q4: How to solve the technical problem?

A4: 24 hours after-service consultancy just for you and to make your problem to solve easily.

Q5:. What certificate your company have?

A5: ISO 9001, ISO 14001, OHSAS 18001, CE, UL, IEC 61427 test report, Patent for gel technology and other Chinese honor.

Q6. What is your warranty time for VRLA battery ?

A6: It depends on battery capacity, depth of discharge, and battery usage. Please kindly contact us for accurate information based on detailed requirements.

Q7. Why battery has different capacity at different hour rate?

A7: The capacity of a battery, in Ahs, is a dynamic number that is dependent on the discharge current. For example,

a battery that is discharged at 10A will give you more capacity than a battery that is discharged at 100A. With the 20-hr rate,

the battery is able to deliver more Ahs than with the 2-hr rate because the 20-hr rate uses a lower discharge current than the 2-hr rate.

Q8. Are you a battery manufacturer, and do you produce the plate by yourself ?

A8: Yes, we are a professional battery manufacture in Fujian Province, China. And we produce plates by ourselves.

Q9. How to proceed with an order?

A9. Firstly let us know your requirements or application.

Secondly, We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places a deposit for formal order.

Fourthly We arrange the production.

Q10: How about the delivery time?

A10: About 7 days for stock products, around 20 days for half container products, 30 days for 20ft full container products.
