Stainless Steel Pilots Surge Anticipating Valve Anti Water Hammer Function

Anti Water Hammer Function Stainless Steel Pilots Surge Anticipating Valve

Anti Water Hammer Stainless Steel Pilots Surge Anticipating Valve

Description:

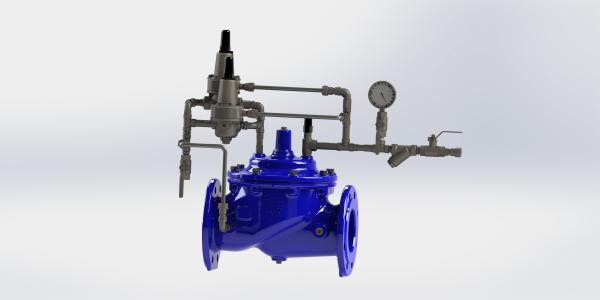

A2A5 is a surge anticipation valve and could be adjusted to eliminate hazardous pressure surges typical of water hammer. A water hammer is caused by an abrupt shut off of a pump or quick closure of a main valve, causing a fast propagation of low-pressure front, followed by an extremely high-pressure back-wave. A series of pressure waves, each one composed of alternating low and high pressure is created within a few seconds. A2A5 is a piloted hydraulic valve activated by line pressure. The valve has two pilots, for high and low pressure. Under normal conditions the A2A5 is closed. The valve opens when the line pressure drops below a preset pressure, in anticipation to the following surge, and remains open until the fluctuations subside.

Features:

• No slam operation
• Simple and reliable design
• Easy installation and maintenance
• Low Resistance and high flow capacity
• Protection for sewage as well as clean water pumping systems

Service Fields:

For water system, irrigation system.

Technical Data:

Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1

Materials And Dimension

DN50-DN350

DN400-DN800

Alpine Flow Control (SuZhou) Co.,Ltd with major focus in the water valve design and manufacturing. The Management staff have over 30 years experience in the water valve design and manufacturing, combined with the high-tech electronics manufacturing experience of multi-national listed companies. This unique combination of traditional and high-tech industry management experience and skills have given us an advantage over the traditional valve manufacturer. More than 40% of our staff are technical staff with knowledge and experience in valve and mechanical design/manufacturing...

Proven and supported by on-going quality and reliability test. AFC has built it’s own in house reliability test laboratory to ensure that our products not only meet the international quality and reliability test specification such as the EN-1074-1/2 T-key and R-key test, but also comply to various international valves standards and specifications.


We already achieved WRAS certificate in 2011, and obtained FM approval in early of 2012,
and UL for gate valve. Today, we have got many international famous certificate for drinking water such as WRAS, NSF, AS, CE on certain products, and our product range has expended to double eccentric butterfly valve, rubber disc check valve ,non-slam check valve, both clean water & sewage water air valve, hydraulic control valve and penstock and we always focus on water system valves.


In 2018 year, our big plan is developing pressure management valves which has been proved to be a very helpful tool and economic way to save the leakage rate with limited investment and get a fast return in couple months and power savings

In addition, we have a special project team to focus on custom design and special requirement
