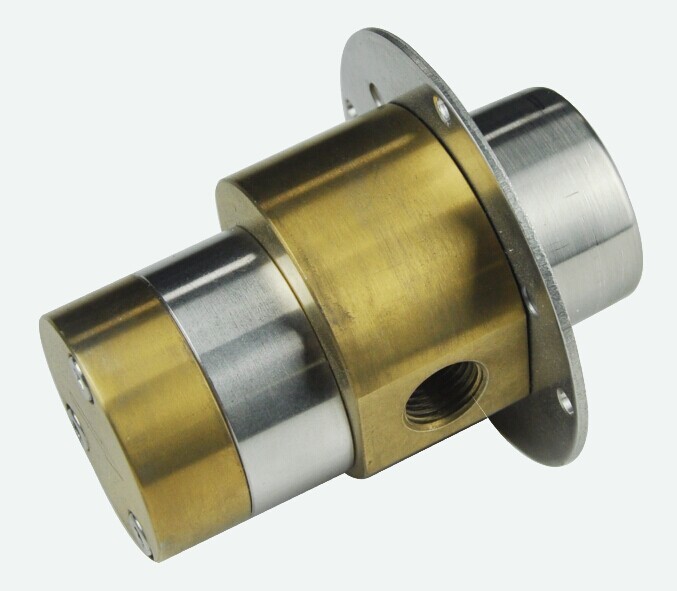

FLOWDRIFT^TM Electric Magnetic Drive Stainless Steel Gear Pump G300 YT/YY Series Quiet Working Food Grade for Hot Water 0-100℃ High Viscosity 3000CPS Allowed

G300 (YT / YY) Magnetic drive gear pump is a new gear pump, YT Series gears and super-hard ceramic material made of Alloy, Stainless steel hardening treatment with high-quality manufactured housing composed of a gear pump. YY series of high quality Stainless steel made of hardened gears, shafts and housing the gear pump in a hard particle slurry liquid (such as the use of pigment ink, a liquid containing titanium dioxide), and it works fine. using magnetic coupling drive structural design to solve the problem of leakage of the gear shaft end, it is called a leak-free gear pump is mainly used in the field of medicine packaging machines, inkjet printing machines, analytical instruments and other trace delivery.

Model specification

Technical parameters

Note: 1, the transmission medium temperature: -30 ℃ ~ 100 ℃ (except frozen); Ambient temperature: -30 ~ 50 ℃.

2, the inner rotor gear pump ferrite, static sealing material is PTFE; rotor cover material Stainless steel 316.

3, G300YY gear pumps all over the liquid material: are FDA-compliant testing requirements.

4, the work: 24 hours of continuous duty.

5, or may be a high pressure (20bar) used in a closed system under vacuum (-0.8bar).

6, suitable for transporting particles containing pigment ink and paint.

7, suitable particle diameter of ≤20 microns solution containing the liquid.

Outline dimension chart:

Flow graph:
