| Categories | Seawater RO Plant |
|---|---|
| Place of Origin: | Guangdong, China |
| Brand Name: | JISHUI |
| Model Number: | HY |
| Certification: | ce, ISO |
| Packaging Details: | Seaworthy packing for Portable desalination plant for sea water treatment |
| Supply Ability: | 100 Set/Sets per Month |
| Price: | USD4000-USD6000 |
| Power (W): | 10000 |
| Voltage (V): | 380 |
| After-sales Service Provided: | Free spare parts, Field maintenance and repair service, Overseas Call Centers |
| Warranty: | 2 years |
| Type: | Reverse Osmosis, sea water treatment |
| Application: | Hotel, Outdoor, Commercial, Household |
| Power Source: | Electric |
| Service: | Can supply onsite installation and commissioing |
| Feed water: | River water, Borehole water, lake water, Tap water |
| Apply filed: | direct drinking, food, beverage& other filed |
| Treated standards: | WHO drinking water standard or as per user's request. |
| Control method: | Full control or Semi control |
| Frequency: | Customized suit for local |
| Operation pressure: | 10 bar~15 bar |
| Use: | Drinking or Industrial using |
| Port: | SHENZHEN |

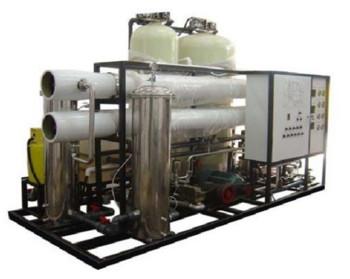

Portable desalination plant for sea water treatment
Please Attention
HY FACTORY OFFER YOU :
1: FACTORY DIRECT PRICE.
2: NICE QUALITY.
3: ONLINE PAYMENT.
4: SUPPORT REFUND AFTER YOUR INSTALLED THE PLANT IF THERE ARE ANY PROBLME.
5: AFTER SALES SERVICES 24/7
6. Letters patent
7. ENGINNER CAN BE OVERSEA INSTALLNATION
We have 2 factories +300 workers+ Qualified engineer+ Engineer Overseas service
Portable desalination plant for sea water treatment
Process function description
1.Desalination plant for sea water treatment use automatic control and semi-control .Pretreatment parts can adopt fiber glass or stainless steel material.
2.Sea water treatment has protected when no power, poor power, larger electrical current, leakage, short circuit.
3.Dsalination plant for sea water is compact, easy installation.
4.Desalination plant for sea water treatment equipped with manual and auto control based on user needed.
5.Sea water treatment produce as per ISO and SGS standard and main parts accessories have obtained CE certification.
6. All the plants will be commissioning well. Make sure don't have any problem when arrived site.
7.What we provide not only the good products, but also our whole team, the quality, experience, and service.
Haiyuan Desing concenpt:
1- Pipe line: Low pressure use UPVC pipe, High pressure use SS316L Corrosion resistance,To use less bend pipe, reducing pipe and valve.
2-To use hose which could reduce vibration and lower noise.
3-Control part: PLC and HMI Auto control. Press button start. Auto flushing when start and off. Like this way can prolong RO membrane lifetime.
4-Alarm reminder when there is any problem.
5-All the working process and alarm will be showed on the touch screen.
6-Some supplier use the stainless steel material make the machine whole frame.
Our plant use the stainless steel material SS316 material for frame.
7-Some supplier use the Italy AR brand brass high pressure pump. The brass cannot withstand for long time seawater corrosion. Maybe working for 6 months. Some part will rusting.
Sea water desalination system process flow:
NOS. | Items | Information |
1. Pre-treatment | Sea water tank | Store sea water, let it have a sedimentation before entering the plant. |
Feed water pump | Provide power for pretreatment part. | |
Dosing system | And add the flocculant. | |
quartz sand ) | quartz sand, used to remove iron,colloid,silt etc, to make effluent water cleaning. | |
Active carbon filter | Remove color, free chloride, organic matter, harmful matter, etc. | |
Dosing system | Detail dosing system will be decided by: source quality & treated water quality requirements. Normal including: inhibitor dosing, PH dosing, reducing dosing, germicide dosing. | |
2. RO sea water plug system | Security filter | Prevent large particles, iron, dust, SS matter, impurity into the RO membrane. |
Plung pump | Provide power for RO. | |
RO membrane | Removes: lead, cooper, barium, chromium, mercury, sodium, cadmium, fluoride, nitrite, nitrate, and selenium. | |
3. Control system | Control panel | Assembled by factory. Auto type. |
PLC mode | Adopt Mitsubishi from Japan, good quality. | |
Touch screen | Make use of WeiNview from Taiwang. Convenience for user to operate. | |
Electricity components | Schneider/Omron from German. | |
Plant skid | Anti corrosion paited. | |
Please send us the capacity so that we can do the right proposal for you.
