| Categories | PSA Nitrogen Generator |
|---|---|
| Brand Name: | Atlas |
| Model Number: | NGP30 |
| Certification: | ISO 8573-1 CLASS 0 |
| Place of Origin: | China |
| MOQ: | 2pcs |
| Price: | be negotiated |
| Payment Terms: | L/C, T/T, D/A, Western Union, D/P |
| Supply Ability: | 100pcs per month |
| Delivery Time: | 7~30days |
| Packaging Details: | Atlas standard packing |
| Material: | Aluminum Alloy |
| Model: | NGP30 |
| Brand: | Atlas |
| Nitrogen Purity: | 95-99.9% |
| Air Factor: | 2.6~3.5 |
| Type: | NITROGEN PSA |
| Company Info. |
| CEBE GROUP HK CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
Desired purity
• NGP/NGP+: nitrogen concentrations from 95% to 99.999%.
• OGP: oxygen concentrations from 90% to 95%.
Exceptional reliability
• Robust design.
• Continuous availability (24 hours a day, 7 days a week).
• Potential risk of production breakdown due to gas running out is
eliminated.
Cost savings
• Low operating expenses.
• No additional costs such as order processing,refills and delivery
charges.
• Limited maintenance costs.
Specifications
| TYPE | Nitrogen purity FND (Free Nitrogen Delivery) | Dimensions (W x D x H) | Weight | ||||||||||||
| 95% | 97% | 98% | 99% | 99.5% | 99.90% | 99.95% | 99.99% | 99.999% | mm | in | kg | lbs | |||
| NGP 30 | FND scfm | 41.3 | 32.3 | 27.0 | 20.9 | 16.8 | 10.9 | 8.2 | 5.7 | 3.1 | 798 x 840 x 2022 | 31.4 x 33.1 x 79.6 | 360 | 794 | |
| FND Nm³/h | 70.3 | 54.9 | 46.0 | 35.5 | 28.6 | 18.6 | 14.0 | 9.7 | 5.3 | ||||||

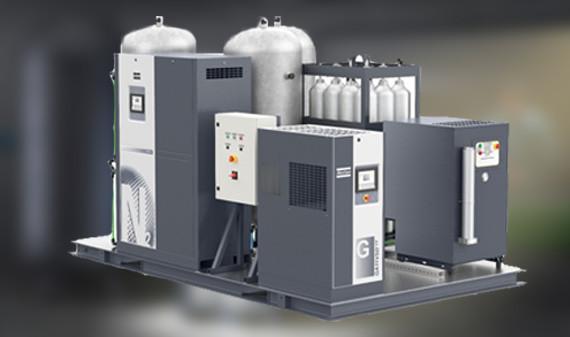

All-in-one high pressure nitrogen skid
The latest addition to Atlas ’s specially developed equipment is
the all-in-one high pressure nitrogen
skid, a true alternative for liquid nitrogen or bottles. Combining
a small footprint, easy installation, high reliability and supreme
energy efficiency, this unique nitrogen skid truly stands out.
FND: Free Nitrogen Delivery Reference conditions
Compressed air effective inlet pressure: 8 bar(g)/116 psi(g).
Nitrogen outlet pressure: 6.5 bar(g)/94 psi(g).
Ambient air temperature: 20°C/68°F.
Pressure dewpoint inlet air: 3°C/37°F.
Pressure dewpoint nitrogen: -50°C/-58°F.
Minimum refrigerant dryer required to precondition inlet air.
Typical nitrogen quality 1.2.1 according to ISO 8573-1:2010.
Operating limits
Minimum ambient temperature: 5°C/41°F.
Maximum ambient temperature: 50°C/122°F.
Maximum compressed inlet air pressure 13 bar(g)/189 psi(g).
NGMs performance
is based on 20°C/7 bar at membrane (1000Mbar) + /-5%.
|
