| Categories | GPON OLT |
|---|---|
| Brand Name: | V-solution |
| Model Number: | V1600G1WEO |
| Place of Origin: | Guangdong, China |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | Negotiable |
| Supply Ability: | 100 Units per Day |
| Delivery Time: | 5-8 work days |
| Packaging Details: | Carton |
| Product: | Outdoor 8 Port GPON OLT with EDFA |
| Type: | Outdoor GPON OLT |
| Use: | FTTH/FTTB/FTTO |
| Uplink: | 4xRJ45 GE + 2xSFP(GE) + SFP+(10GE) |
| PON port: | Class C++ / Class C+++ |
| Working Temperature: | -40 ~ +70°C |
VSOL OLT GPON OLT Outdoor 8 Port GPON OLT with EDFA Optical Network Terminal
Introduction
Outdoor GPON OLT V-SOL V1600G1WEO is designed for outdoor using of FTTH solution, which contains 2 EDFA modules, 1 WDM module, 1 GPON OLT module, and 2 power supply modules.
V1600G1WEO is based on a new concept “V-HUB”. With modular headend devices in the outdoor housing, it can provide multi-service access, such as data and CATV. It is the new, quick and low-cost construction model for FTTx solution in bidirectional network transformation.

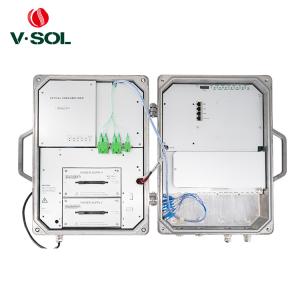

Product Appearance
Software Feature
| Item | V1600G1-WEO | ||
| GPON Module | |||
| Chassis | Rack | 1U 19Inch Standard Box | |
| GE/10GE Uplink Port | QTY | 5 | |
| RJ45(GE) | 1 | ||
| SFP(GE) | 2 | ||
| SFP+(10GE) | 2 | ||
| GPON Port | QTY | 8 | |
| Physical Interface | SFP Slots | ||
| Connector Type | Class (Class C++/Class C+++) | ||
| Max splitting ratio | 1:128 | ||
| Management Ports | 1*10/100BASE-T out-band port, 1*CONSOLE port | ||
PON Port Specification (Class C+++module) | Transmission Distance | 20KM | |
| GPON port speed | Upstream 1.244Gbps, Downstream 2.488Gbps | ||
| Wavelength | TX 1490nm, RX 1310nm | ||
| Connector | SC/UPC | ||
| Fiber Type | 9/125μm SMF | ||
| TX Power | +4.5~+10dBm | ||
| Rx Sensitivity | -30dBm | ||
| Saturation Optical Power | -12dBm | ||
| EDFA Optical Amplifier Module | |||
| Working wavelength | 1535nm－1565nm | ||
| Input optical power | -3dBm－+10dBm(ACC Mode) / -6dBm－+10dBm(APC Mode) | ||
| Output optical power | 13 dBm -22dBm | ||
| Output optical power stability | ≤±0.25dB | ||
| Noise figure | ≤5.0dB(@Input optical power is +3dBm) | ||
| Input /output reflection loss | ≥45dB | ||
| Input/output pump light leakage | ≤-30dBm | ||
| C/CTB | ≥63dB | EDFA input optical power is 3dBm,and the optical link composed of optical transmitter and receiver is tested. | |
| C/CSO | ≥62dB | ||
| C/N | ≥50dB | ||
| V1600G1WEO-PWR | AC:90~264V, 47/63Hz, 24V DC output, Dual Power Module Supply | ||
| V1600G1WEO-BAT | Option | ||
| Management Mode | WEB/SNMP/Telnet/CLI/SSHv2 | ||
Application
|
