Cellular Module 4g Vehicle Gps Tracker Strong Magnetic hidden mini bike gps tracker

Categories GPS Trolley Tracker
Brand Name: kingwo
Model Number: LT06C-BT
Certification: CE, ROSH, FCC
Place of Origin: china
MOQ: 2pcs
Price: USD negotiable
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000PCS/month
Delivery Time: 10-20days
Packaging Details: carbon case
Color: Black with red
Network: 2G/3G/4G
Working Temperature: -20℃ ~ +70℃
Motion sensor: DA260
low consumption: less than 5uA when in sleep mode
Low voltage alarm: Support
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Cellular Module 4g Vehicle Gps Tracker Strong Magnetic hidden mini bike gps tracker

LT06C-BT iot platform device Asset GPS Tracker vehicle location high tech company cellular module

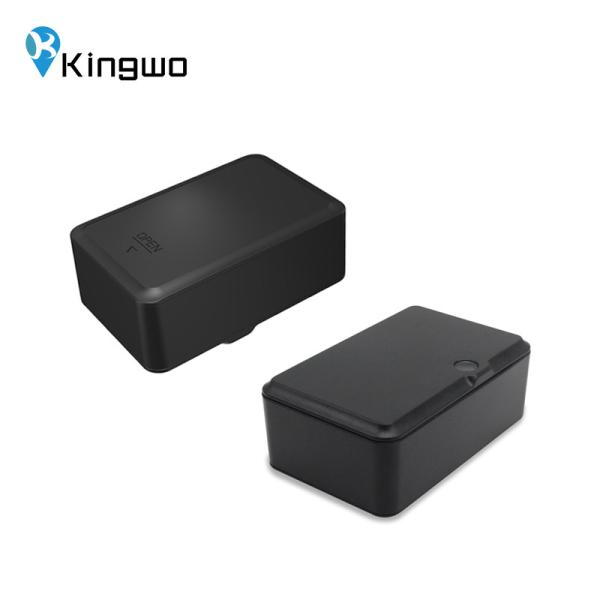

LT06C-BT is a compact GPS tracker for vehicles, it is small in size and with internal GPS/GSM antenna. It is designed for cars, vehicles, fixed assets and valuables. It built-in non-rechargeable lithium-ion batteries, can be used more than 5 years.


Shenzhen Kingwo IoT Ltd (Hereby referred to "Kingwo") is a high tech company focus on IoT technology, our business

includes development and research, manufacturing , sale and operations of Beidou/GPS location service products. Our

products covers to vehicle location service, asset location service, person location service and platform big data

operation etc, our purpose is to provide software and hardware solutions for the Beidou/GPS all over the world.


1. Clock mode

2. Motion alarm

3. Blind area data storage

4. Low voltage alarm

5. Removal alarm

6. Strong magnetic


PhysicalDimension81mm*51mm*31mm(L*W*H)
Weight161±5g
CellularModuleQuectel EC25
Frequency

Working frequency:

Cat M1: LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26*/B27/B28/B66/B85

• Cat NB2: LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26*/B28/B66/B71/B85E
• WCDMA:B1/B2/B4/B5/B8
• GSM/GPRS: 850/900/1800/1900MHz

protocol: Embedded TCP/IP stack

Sensitivity: -107dBm@850/900MHz

-106dBm@1800/1900MHz

Output power: Class 4 (2W)@850/900MHz

Class 1 (1W)@1800/1900MHz

GPRS data: GPRS Class 10, Mobile Station Class B

GPS

Channels: 50

Sensitivity: -147dBm

Position accuracy:5-10m

Accuracy: 5m CEP

Cold start: <27s

Hot start: <1s

ProcessorST
Motion sensorDA260
Wifi positionWifi 4.0
PowerBattery

Disposable Lithium-ion battery and (3.6V,8100mAh)

and ultra-low discharge rate:less than 1%, store one year below 25℃

Power consumptionAverage working current <100mA; Power save current <10uA;
GSM antennaInternal High Gain
GPS antennaInternal High Gain
SIMMicroSIM
Indicator2 status LEDs, Green: GPS, Red: Celluar
Environmental ParameterWorking Temperature-20℃ ~ +70℃
Humidity5% ~ 95% (no fog)
Ingress Protection RatingIP65(optional IP67)
