Product name: | Fiberglass wool roll |
Type: | Glass Wool Insulation, ISOKING 25mm Thick Glass Wool Insulatio... |
Width: | 0.4-1.2m |
Heat Conductivity: | 0.038-0.042 w/m.k |
Highest Working Temperature:: | 350℃ |
Application: | Warehouse, duct/roof/wall |
Design Style: | Modern |
Material: | Glass Fiber |
Thickness: | 20-100mm |
Apparent Density: | 10-50kg/m3 |
Company Info. |
Shanghai Huiyi International Co., Ltd. |
Verified Supplier |
View Contact Details |
Product List |

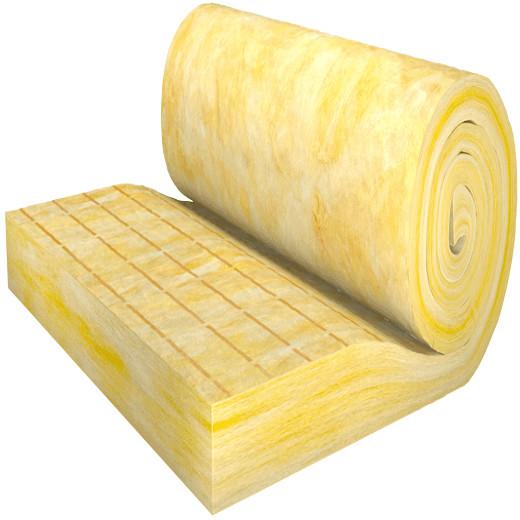

Yellow 100mm thickness Fiberglass wool Insulation fireproof sound separation
Introduction of Fiberglass wool insulation :
Fiberglass wool insulation is placed in the glass of meltdown
appearance proceed the fiber turn and spray the resin of solid that
draw the hot silk wadding form material, then turn through hot
solid the deep processing handles and can also make into the series
and various products. Huali glass wool felt is divided into bare
felt and veneer rolled felt, which can effectively resist moisture,
sound absorption, corrosion, and aesthetics. The surface layer is
added to increase the product's breaking resistance, breakdown
resistance, high tensile strength, beautiful appearance and simple
construction.
Product Type | LengthX Width(m) | THK(mm) |
HLBRL10 | 20*1.2 | 50-150mm |
HLBRL12 | 15*1.2 | 40-150mm |
HLBRL16 | 15*1.2 | 30-150mm |
HLBRL18 | 10*1.2 | 30-150mm |
HLBRL24 | 10*1.2 | 25-150mm |
HLBRL32 | 10*1.2 | 25-130mm |
HLBRL40 | 10*1.2 | 25-80mm |
HLBRL48 | 10*1.2 | 25-80mm |
Details of Fiberglass wool insulation :
Performance item | Performance parameter | Compliance with standards |
Working temperature range | -100 to +450℃ | Working temperature range |
Corrosion resistance | No chemical reaction | GB/T 17393 |
Average fiber diameter | 5-7 | GB/T 5480 |
Slag ball content (particle size>0.25mm) | ≤0.3 | GB/T 5480 |
Water content | ≤1.0% | GB/T 20313 |
Moisture absorption rate | ≤5.0% | GB/T 5480 |
Hydrophobic rate | ≥98% | GB/T 10299 |
Thermal load shrinkage temperature | ≥300 ≥350 ≥350 ≥400 | GB/T 5480 |
Thermal conductivity k (W/m. ℃) | ≤0.038 | GB/T 10294 |
Combustion performance grade | A1 non-combustible material | GB/T 8624-2012 |
Specifications of Fiberglass wool insulation :
Bulk density(kg/m3) | 10-150kg/m3 |
Thickness(mm) | 20-100mm |
Width(mm) | 0.4-1.2m |
Length(mm) | 3-30m (as customer's requirements) |
Color | Yellow, White, Pink, Brown or customize |
Port of Loading | Qingdao Port, China |
Features of Fiberglass wool insulation :
Advantages of Fiberglass wool insulation :
Package and Delivery of Fiberglass wool insulation :
FAQ:
Q: Can you accept neutral packing & OEM ?
A: Normally, our packing is carton , but we can accept the neutral
packing and OEM.
Q: Can you provide the sample for free ?
A: We provide some samples for free.
Q: What's the lead time?
A: 15-35 days after receipt of advanced payment
Q: What's the payment term?
A: 30% advanced payment and 70% paid prior to load by TT. and large amount can be paid by LC.
![]() |
