| Categories | Flash Memory IC Chip |
|---|---|
| Brand Name: | Allegro |
| Model Number: | A1324LUA-T |
| Certification: | ROHS |
| Place of Origin: | Original & New |
| MOQ: | 10pcs |
| Price: | Negotiate |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 10000pcs |
| Delivery Time: | 1-3Days |
| Packaging Details: | BOX |

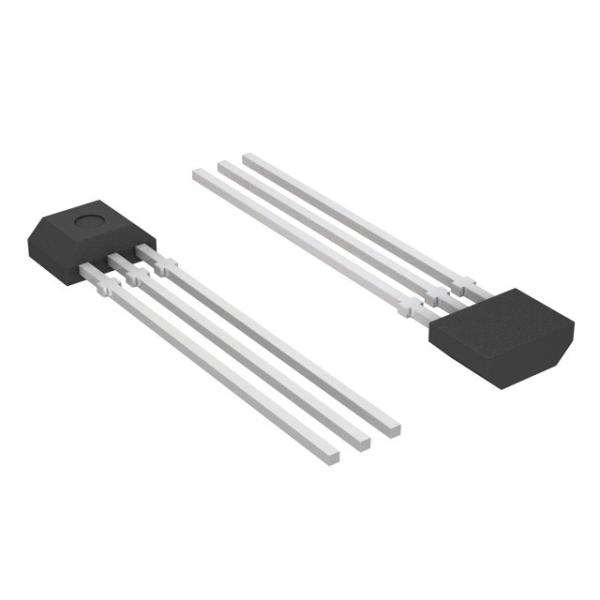

| Description: | Hall Effect Sensor Single Axis 3-SIP |
| Series: | Low noise Linear Hall Effect Sensor IC |
| Package: | SIP-3 |
| Feature: | Low noise |
| Application: | Stringent Automotive |
| D/c: | New & Original Allegro Only |
| Lead time: | 0-3 Days |
A1324, A1325, and A1326
Description
New applications for linear output Hall-effect devices, such as displacement, angular position, and current measurement, require high accuracy in conjunction with small package size. The AllegroTM A1324, A1325, and A1326 linear Hall-effect sensor ICs are designed specifically to achieve both goals. This temperature-stable device is available in a miniature surface mount package (SOT23W) and an ultra-mini through-hole single in-line package.
These ratiometric Hall effect sensor ICs provide a voltage output that is proportional to the applied magnetic field. They feature a quiescent voltage output of 50% of the supply voltage. The A1324/25/26 feature factory programmed sensitivities of 5.0 mV/G, 3.125 mV/G, and 2.5 mV/G, respectively.
The features of these linear devices make them ideal for use in automotive and industrial applications requiring high accuracy, and operate through an extended temperature range, –40°C to 150°C.
FEATURES and BENEFITS
• Temperature-stable quiescent output voltage and sensitivity
• Output voltage proportional to magnetic flux density
• Low-noise output increases accuracy
• Precise recoverability after temperature cycling
• Ratiometric rail-to-rail output
• Wide ambient temperature range: –40°C to 150°C
• Immune to mechanical stress
• Solid-state reliability
• Enhanced EMC
|
