40kA Type 2 Surge Protector 1P+NPE Din Rail Mounting

Name: 40kA Type 2 Surge Protector 1PNPE Din Rail Mounting
Brand: BRITEC
Price: 1 USD

40kA Type 2 Surge Protector 1P+NPE Din Rail Mounting

Categories	Type 2 Surge Protection Device
Brand Name:	BRITEC
Model Number:	BR-40 1+1
Place of Origin:	China
Certification:	TUV,CE,CB,IEC
MOQ:	10pcs
Packaging Details:	Export packaging
Delivery Time:	15 days after receipt of deposit
Payment Terms:	T/T
Supply Ability:	1000000 per month
Packaging:	Carton
Model number:	BR-40 1+1
Operating Temperature:	-40℃ To +80℃
Material:	Thermoplastic
Dimension:	90mm36mm70mm
Mounting:	DIN Rail
Warranty:	2 Years
Protection Mode:	L-N, N-PE, L-PE
Humidity:	Up To 95% RH
Weight:	250g

Contact Now

Add to Cart

Company Info.

Britec Electric Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

40kA Type 2 Surge Protector 1P+NPE Din Rail Mounting

Surge Protection Device Type 2 Surge Protector Product Description:

Type 2 Surge Protection Device – an advanced surge protector that provides comprehensive protection to electrical and electronic devices from damaging power surges. This device is designed for DIN Rail mounting and offers a voltage rating of 230V/400V and an IP20 level of protection. It also has a fast response time of less than 25 nanoseconds, ensuring maximum safety and reliability. This Type 2 Surge Protection Device is an ideal choice for commercial and residential applications.

Surge Protection Device Type 2 Surge Protector Technical Parameters:

	BR150 40 1P+NPE	BR275 40 1P+NPE	BR320 40 1P+NPE	BR385 40 1P+NPE	BR440 40 1P+NPE
SPD classification according to EN61643-11	Type 2	Type 2	Type 2	Type 2	Type 2
SPD classification according to IEC61643-11	Class II	Class II	Class II	Class II	Class II
Max. continuous operating a.c. voltage Uc	150V	275V	320V	385V	440V
Max. continuous operating a.c. voltage[N -PE] Uc	255V	255V	255V	255V	255V
Nominal discharge current (8/20us) In	20kA	20kA	20kA	20kA	20kA
Max. discharge current(8/20μs) Imax	40kA	40kA	40kA	40kA	40kA
Voltage protection level Up	≤0.8kV	≤1.3kV	≤1.5kV	≤1.8kV	≤2.0kV
Voltage protection level 5kA Up	≤0.6kV	≤1kV	≤1.2kV	≤1.4kV	≤1.6kV
Voltage protection level [N-PE] Up	≤1.5kV	≤1.5kV	≤1.5kV	≤1.5kV	≤1.5kV
Follow current extinguishing capability[ N-PE]a.c.Ifi	100Arms	100Arms	100Arms	100Arms	100Arms
Max. backup fuse	125A gG	125A gG	125A gG	125A gG	125A gG
Response time tA	≤25ns	≤25ns	≤25ns	≤25ns	≤25ns
Response time [N-PE] tA	≤100ns	≤100ns	≤100ns	≤100ns	≤100ns
Operating temperature range Tu	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃
Operating state / fault indication	green / red	green / red	green / red	green / red	green / red
Cross-section area (Min.)	4mm²	4mm²	4mm²	4mm²	4mm²
Cross-section area (Max.)	35mm²	35mm²	35mm²	35mm²	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermoplastic UL94-V0
Degree of protection	IP20	IP20	IP20	IP20	IP20
Order Code	B8251	B8253	B8255	B8257	B8370
Order Code (With remote signaling)	B8252	B8254	B8256	B8258	B8371

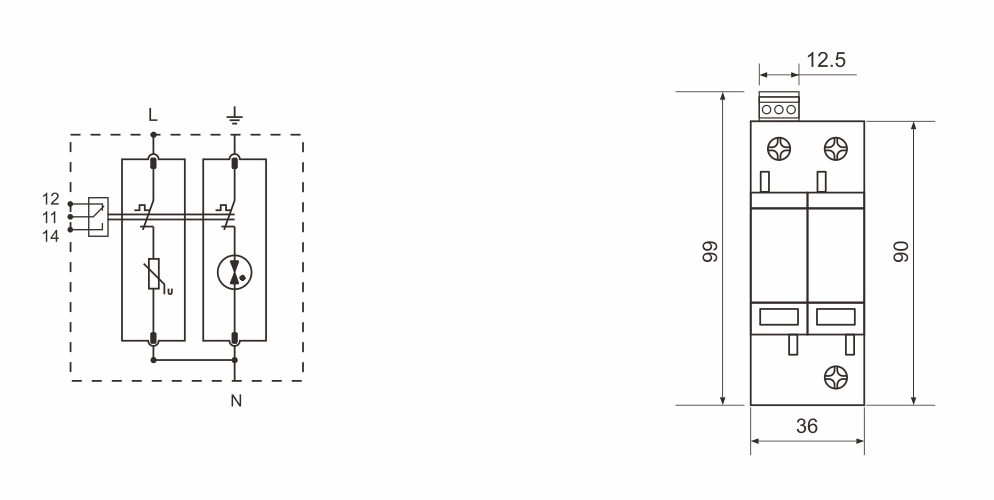

Dimension:

Surge Protection Device Type 2 Surge Protector Features:

Product Name: Type 2 Surge Protection Device
Brand: BRITEC
Humidity: Up To 95% RH
Voltage Rating: 230V/400V
Warranty: 2 Years
Response Time: Less Than 25 Nanosecond

FAQ:

Q. What is the Brand Name and Model Number of the Type 2 Surge Protection Device?

A. The Brand Name is BRITEC and the Model Number is BR-40 1+1.

Q. Where is the Type 2 Surge Protection Device manufactured?

A. The Type 2 Surge Protection Device is manufactured in China.

Q. What certifications does the Type 2 Surge Protection Device have?

A. The Type 2 Surge Protection Device has TUV, CE, CB, and IEC certifications.

Q. What is the Minimum Order Quantity for the Type 2 Surge Protection Device?

A. The Minimum Order Quantity for the Type 2 Surge Protection Device is 100pcs.

Q. How long is the Delivery Time for the Type 2 Surge Protection Device?

A. The Delivery Time for the Type 2 Surge Protection Device is 20 days after receipt of deposit.

Product Tags:

40kA Type 2 Surge Protector Device

1P+NPE Type 2 Surge Protector

Din Rail Mounting Type2 Surge Protector

40kA Type 2 Surge Protector 1P+NPE Din Rail Mounting
