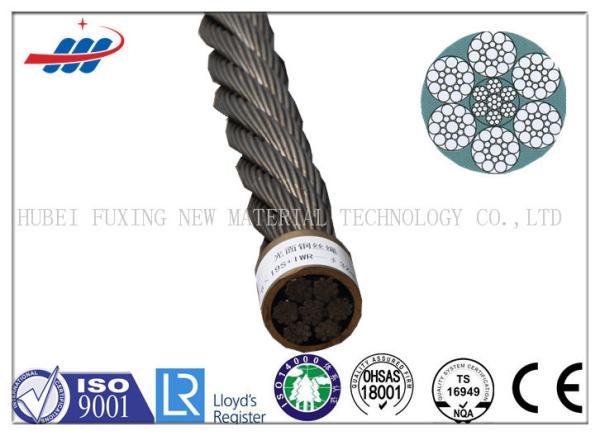

Ungalvanized Elevator Steel Wire Rope 6x19S+IWRC With Drawn Wire Type

Name: Ungalvanized Elevator Steel Wire Rope 6x19SIWRC With Drawn Wire Type
Brand: FUXING
Price: 1 USD

Ungalvanized Elevator Steel Wire Rope 6x19S+IWRC With Drawn Wire Type

Categories	Elevator Wire Rope
Brand Name:	FUXING
Model Number:	6x19S+IWRC
Certification:	ISO9001, CE, Lloyd's, ISO14001, OHSAS18001
Place of Origin:	China
MOQ:	1 TONS
Price:	Negotiable
Payment Terms:	L/C, T/T
Supply Ability:	3000 Tons per month
Delivery Time:	20-30 Days
Packaging Details:	Packed in Wooden Reel, 1000M or 2000M per Reel.
Steel Grade:	60# 65# 70# 72#
Standard:	ASTM, BS, DIN, GB, JIS
Wire Gauge:	6-13mm
Type:	Drawn Wire
Application:	Hoisting
Surface:	Ungalvanized
Usage:	Elevator or Lift
Construction:	6*19S+FC/NF,
Tensile Strenght:	1370/1770MPA
Lay:	ZS

Contact Now

Add to Cart

Company Info.

HUBEI FUXING NEW MATERIAL TECHNOLOGY CO.,LTD

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Ungalvanized Elevator Steel Wire Rope 6x19S+IWRC With Drawn Wire Type

PRODUCTS DESCRIPTION:

1.Double steel: 65#, 70#, double intensity: 1370/1770N/mm2.

2.Single steel, single intensity, 65# steel, 1770N/mm2. Pretension should be conducted to improve the tightness, and control the ductility and elastic and grinding accuracy of the rope.

3.NF refers to the natural fibre core whose rope core of the elevator steel wire rope shall be sisal core that has good support force to maintain the structure of the rope and guarantee the fine mechanical property. PP core refers to synthetic fibre core whose diameter uniformity can make sure the uniqueness of the rope diameter. PP is best for high speed elevator rope since its rope core is very thin and sisal core is difficult to control it.

Model 6*19S-NF
Single tensile strength: 1570N/mm2 1770N/mm2 Double tensile strength: 1370/1770 N/mm2
Nominal diameter, mm	Approximate weight		Min. breaking force, kN
	Natural fibre, kg/100m	Artificial fibre, kg/100m	Single tensile strength: 1570N/mm2 Double tensile strength: 1370/1770N/mm2 Calculated by 1500N/mm2	Single tensile strength: 1770N/mm2
6 8 10 11 13 16 19 22	13.0 23.1 36.1 43.7 61.0 92.4 130 175	12.7 22.5 35.8 42.6 59.5 90.1 127 170	17.8 31.7 49.5 59.9 83.7 127 179 240	21.0 37.4 58.4 70.7 98.7 150 211 283

PRODUCTION LINE

Galvanized Steel Wire Rope 6*7+FC or IWRC, High Carbon Steel Wire Rope 1570-1770MPA Tensile Strength

TEST EQUIPMENT

Galvanized Steel Wire Rope 6*7+FC or IWRC, High Carbon Steel Wire Rope 1570-1770MPA Tensile Strength

Marketing and Services

We located in Hubei which is the thoroughfare of nine provinces, the company enjoys significant advantages in traffic location; our company is only 2 km from Hanjiang, 3 km from Hanyi Railway. We have our own logistics company, and can carry out the transportation through waterway, highway and railway. We have set up powerful marketing network, with more than 60 offices and distribution divisions. Adhering to the marketing principle of "Putting personal morality before work", we provide pre-sales, sales and after-sales services for the clients. Based on 24 hour tracking all the way, we can serve the companies in a prompt and considerate manner.

Steel Cord For Radial Tires, 2+7*0.22, 3*7*0.2, 3+9+15*0.175+0.15
