Automatic Bottling Tea Drink/ Juice Filling Machine Production Line

Categories Juice Filling Machine
Brand Name: JIAYUAN
Model Number: RCGF
Certification: CE
Place of Origin: CHINA
MOQ: 1 set
Price: please inquire
Payment Terms: L/C, T/T
Supply Ability: 100 sets per year
Delivery Time: 50 days
Packaging Details: standard export packing
machine name: juice filling machine
suitable bottle: PET bottle
washing nozzle: 32 pcs
filling nozzle: 32 pcs
capping nozzle: 10
filling material: juice, water, flavor drink
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Automatic Bottling Tea Drink/ Juice Filling Machine Production Line

Automatic Bottling Tea Drink/ Juice Filling Machine Production Line


Juice Filling Machine is mainly designed for filling hot temperature liquid.
For example juice, tea drinks etc which are made of concentrate juice.
The final filling temperature will be around 85-90 degree centigrade.
Once the thermal meter in juice filling machine is lower than the temperature, juice will be return to sterilizing machine again through return system.
Juice blending system
Sugar melting tank → syrup filter → blending tank → double filter → storage tank → homogenizer → storage tank → vacuum degasser → storage tank → plate type sterilization


We can provide complete line plants

Pasteurization

This machine is usually used after fruit juice beverage finished hot filling and sealing, when enter the spray tunnel, the water with the function of high-pressure pump, uniformly spray on the bottle body. The bottles move slowly in the chain, when they are out the tunnel, they can reach the normal temperature, then achieve the purpose of cooling. This machine can also be used for secondary sterilization for fruit juice.

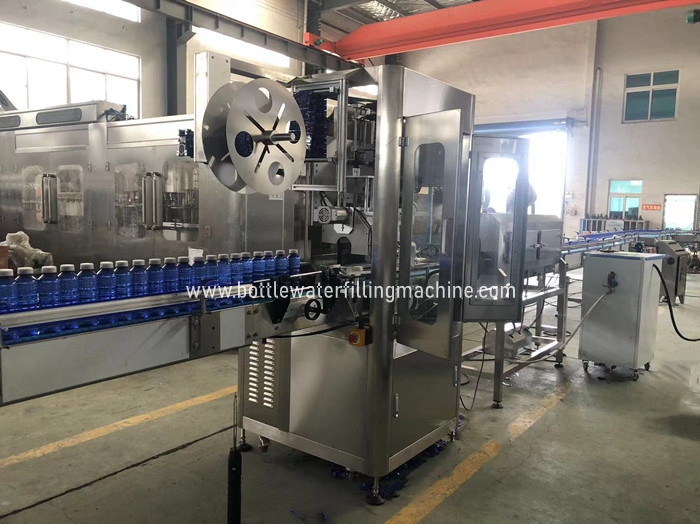

Automatic shrink sleeve labeling machine
This machine adopts international advanced technology, cover the circle label on the pet bottle. And then hot shrinking to fix on the position which bottle body designated.
Automatic PE film wrapping machine
To pack several bottles into one package, make it easier for delivery.
You can have different group style, 24 bottles one package, 12 bottles one package, etc. It is changeable.

Technical parameter
Model
RCGF8-8-3
RCGF14-12-5
RCGF18-18-6
RCGF24-24-8
RCGF32-32-8
Capacity(for 500ml)
2000
3000-4000
4000-6000
8000-10000
10000-12000
Suitable bottle shapes
PET circular or square
Bottle diameter(mm)
Dia50-Dia115mm
Bottle height (mm)
160-320mm
Compressor air
0.3-0.7Mpa
Filling type
hot filling
Rinsing pressure
>0.06Mpa <0.2Mpa
Application
fruit juice
